- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
3MVB70Q

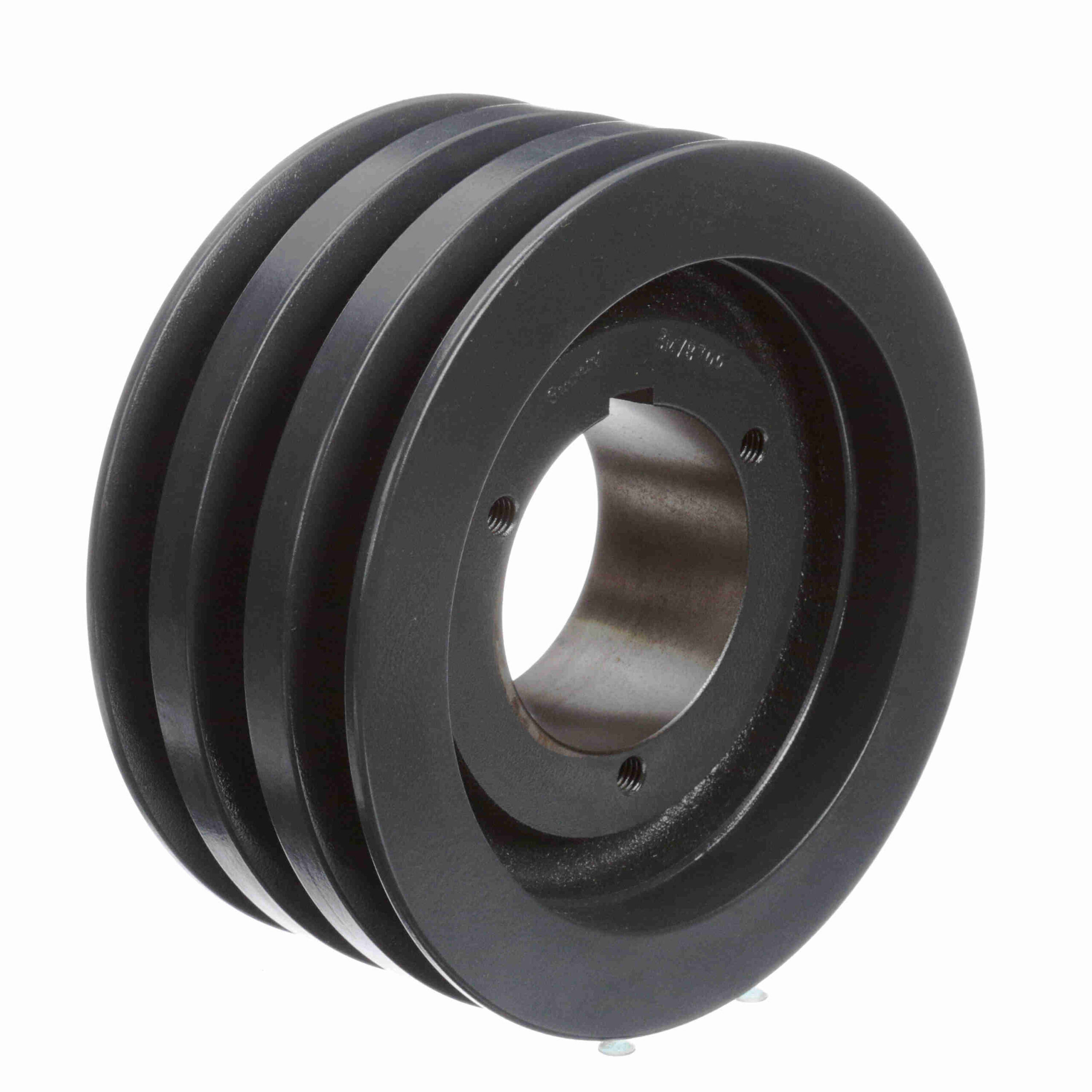

Browning 3 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 3MVB70Q
$893.68
Out of stock
Out of stock
| Material: | Cast Iron | Outside Length (in): | 3.578125 in |
|---|---|---|---|
| Pitch Diameter Range (B): | 7.3 | Product Type: | MVP Sheaves |
| Bore (Min) (in): | 0.75 in | Number of Grooves: | 3 |
| Pitch Diameter Range (A): | 6.8 | Type of Bore: | Bushed |
| Outside Diameter (in): | 7.35 in | Belt Section: | A, B |
| Pulley Construction: | Webbed | Bore Type: | Split Taper Bushed |
| Bushing Used: | Q1 | Bore (Max) (in): | 2.6875 in |
| Face Width (in): | 3.25 in | Keyway Size: | .500 |
| Bushing Bore Range: | 2.6875 - 2.6875 | UPC: | 662289185610 |
| Weight: | 17.50 LB | Packaged Length: | 7.88 Inches |
| Packaged Width: | 7.88 Inches | Packaged Height: | 3.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
