- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YCS10200

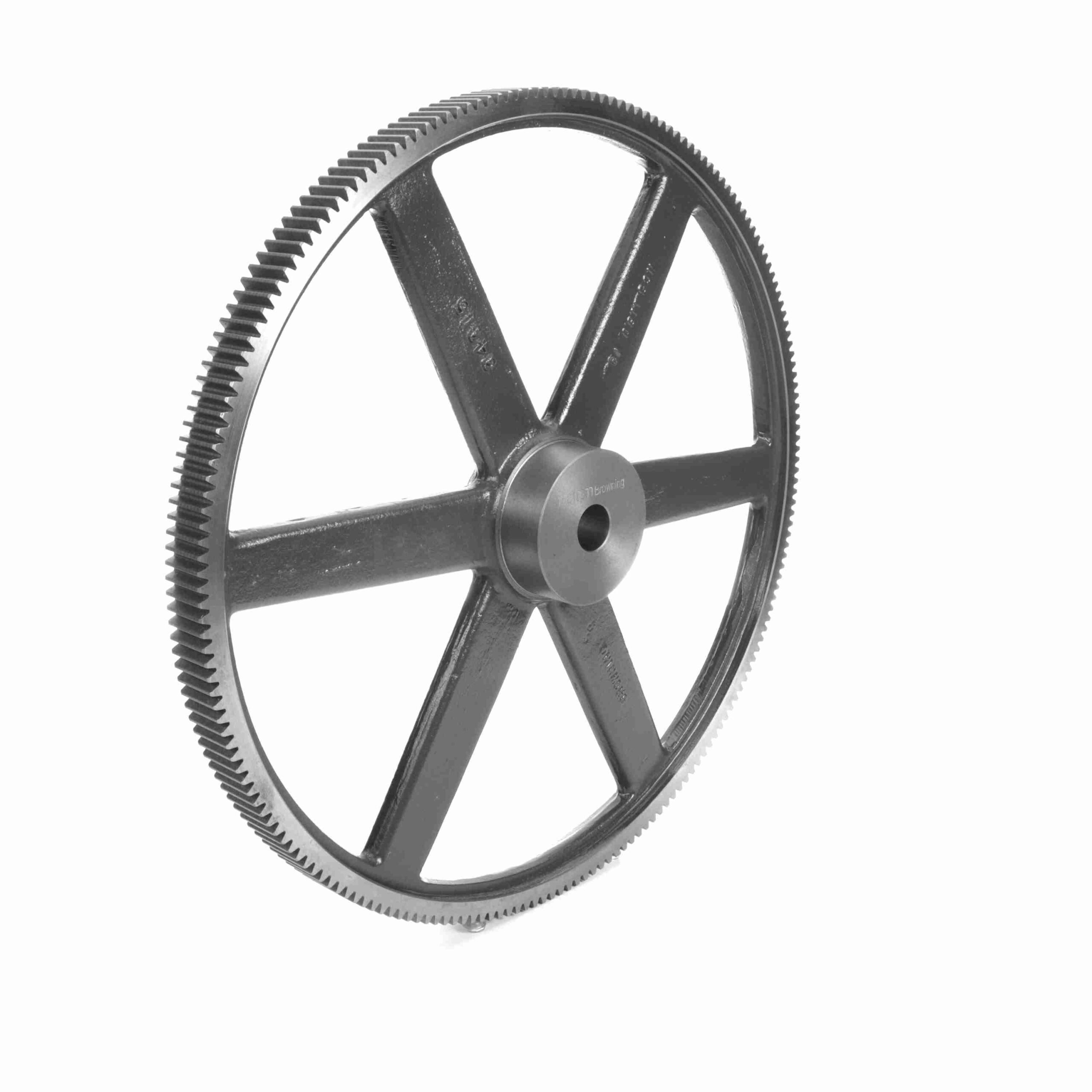

Browning Cast Iron Minimum Plain Bore Spur Gear – 20 PA 10 DP – YCS10200
Out of stock
| Outside Diameter (in): | 20.2 in | Pressure Angle: | 20 |
|---|---|---|---|
| Pitch Diameter (in): | 20 in | Material: | Gray Iron |
| Number of Teeth/Threads: | 200 | Diametral Pitch: | 10 |
| Hub Diameter (in): | 3.75 in | Face Width (in): | 1.25 in |
| Hub Projection (in): | 1.25 in | Bore (Min) (in): | 1.125 in |
| Length Through Bore (in): | 2.5 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 2.25 in | Bore Size (in): | 1.125 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.5 in |
| UPC: | 662289042876 | Weight: | 37.02 LB |
| Packaged Length: | 20.38 Inches | Packaged Width: | 2.63 Inches |
| Packaged Height: | 20.38 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
