- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
W1 4 1/8

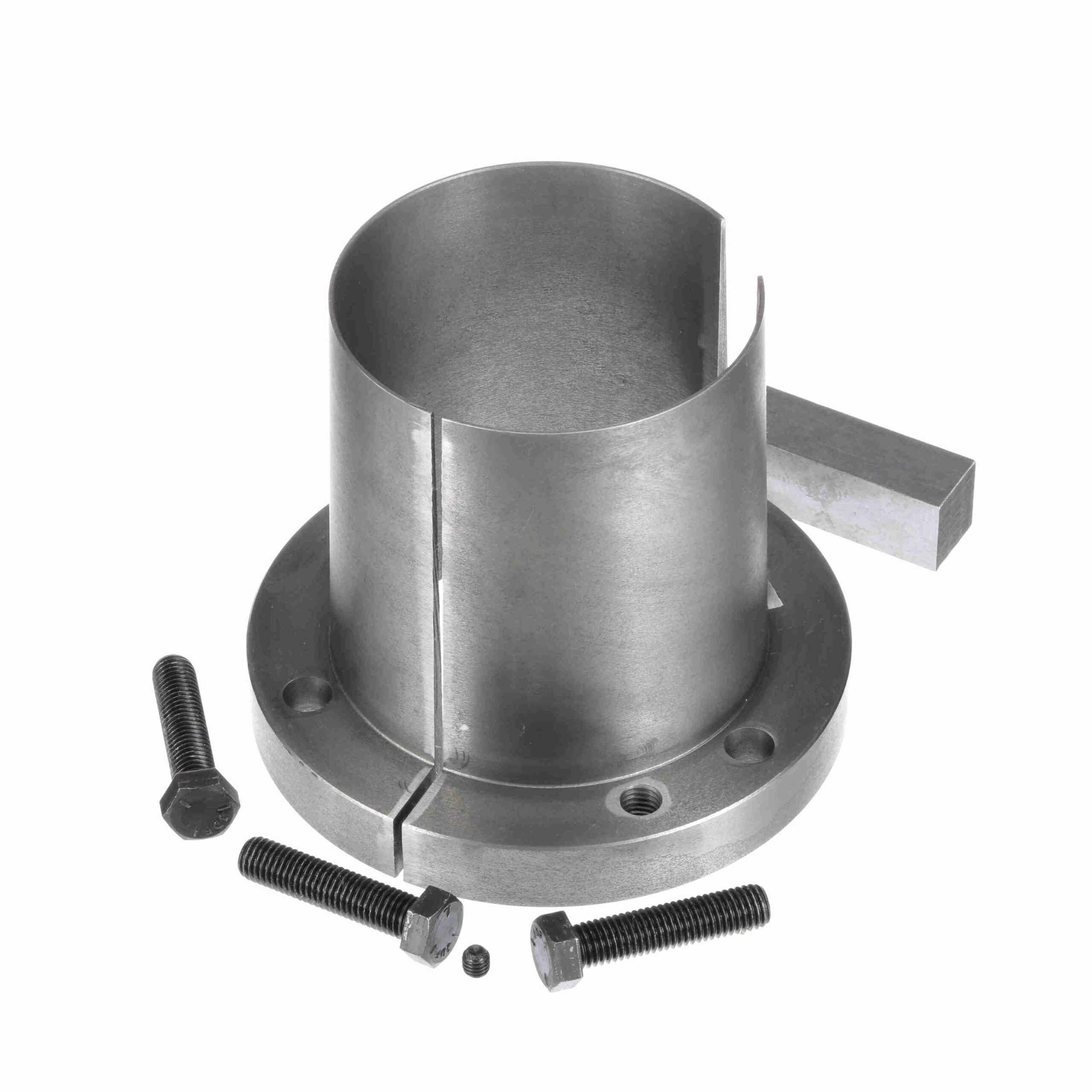

Browning Split Taper Bushing – Inch Bore Type – W1 4 1/8
Out of stock
| Keyseat: | 1 x 1/2 | Wrench Torque (in-lb): | 3, 000 |
|---|---|---|---|
| Product Type: | Split Taper Bushing | Outside Diameter (in): | 12.5 in |
| Bushing Type: | W1 | Cap Screws (Size): | 3/4 x 3 |
| Length Through Bore (in): | 8.25 in | Total Length (in): | 8.25 in |
| Material: | Ductile Iron or Gray Iron | Bore Size (in): | 4.125 in |
| Model Name: | W1-T1_BushingMaster | Compatible Bore Size [Max] (in): | 4.125 in |
| Cap Screws (No.): | 4 | Bore Type: | Inch |
| UPC: | 662289287963 | Weight: | 104.00 LB |
| Packaged Length: | 12.63 Inches | Packaged Width: | 12.63 Inches |
| Packaged Height: | 8.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
