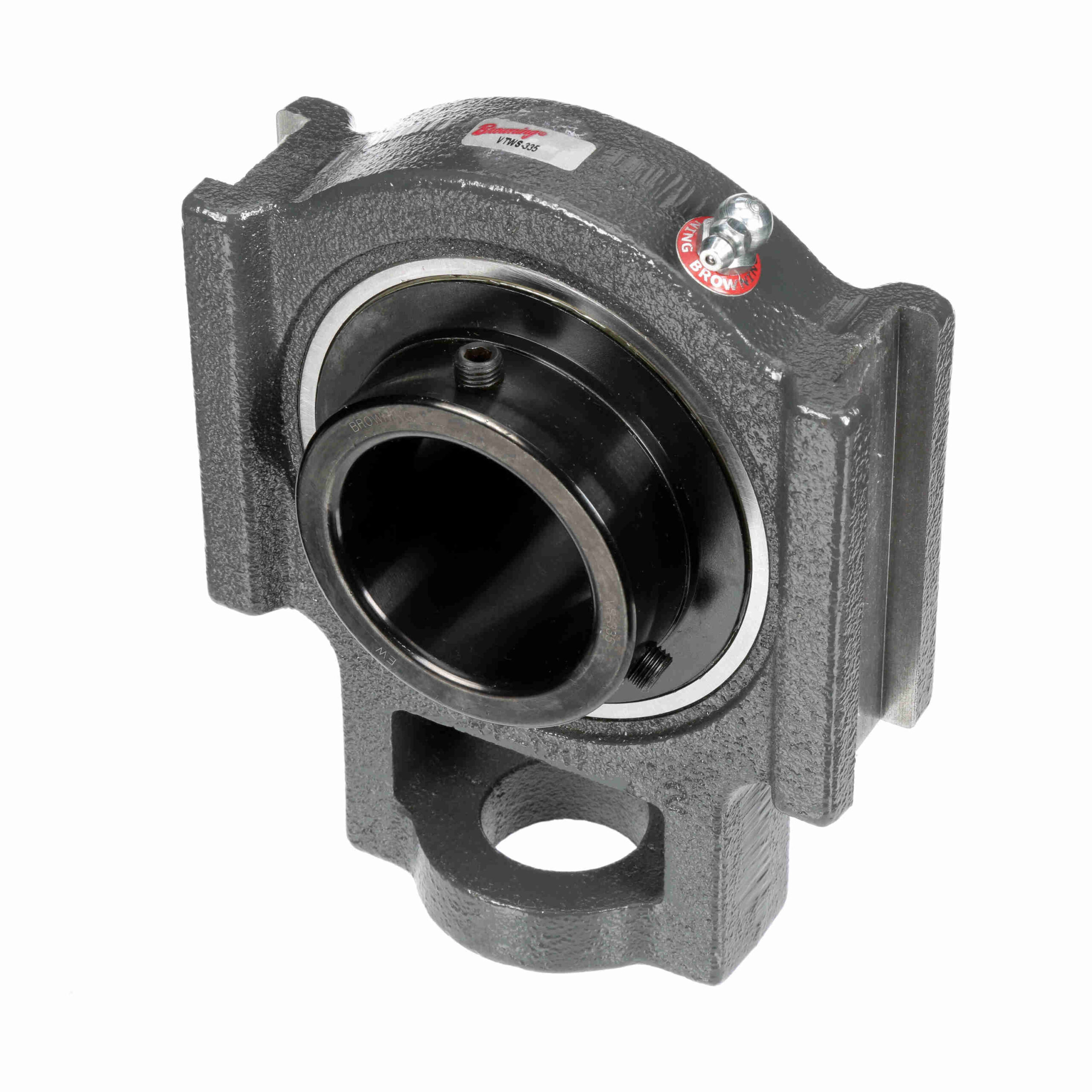

VTWS-332

Powder coat epoxy cast iron housing
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Single lip contact seal and flinger

Measure Units:	Inch	Seal Type:	Single Lip Contact Seal with Flinger
Rolling Element:	Ball Bearing	Housing Material:	Cast Iron
Expansion:	No	Insert Material:	52100 Bearing Steel, Black Oxided Inner
Housing Type:	Take-Up Block, Wide Slot	Retainer Type:	Ball Riding Retainer
Duty Series:	Medium Duty	Speed (Max):	2500
Maximum Operating Temperature:	200 °F	Insert No.:	VS-332
Relubricatable:	Yes	Radial Dynamic Load Capacity (lb):	9, 752
Frame Type:	Center Pull Wide Slot	Internal Clearance:	Standard
Misalignment:	±1.5° Misalignment - Static Only	Locking Type:	Setscrew
Bore Shape:	Straight	Housing Construction:	One Piece
Lubrication:	Lithium Complex NLGI 2 Grease	End Cap:	No
Misalignment Type:	Static Only	Retainer Material:	Molded fiber glass reinforced nylon
Housing Color:	Gray	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated Inner Ring
Series:	VTWS-200	Unit Type:	Side Mount
Component Description:	Take Up Bearing Only	UPC:	662289533886
Weight:	8.32 LB	Packaged Length:	7.5 Inches
Packaged Width:	7.38 Inches	Packaged Height:	2.63 Inches
HTC:	8483.20.4040	Country of Origin:	Mexico
