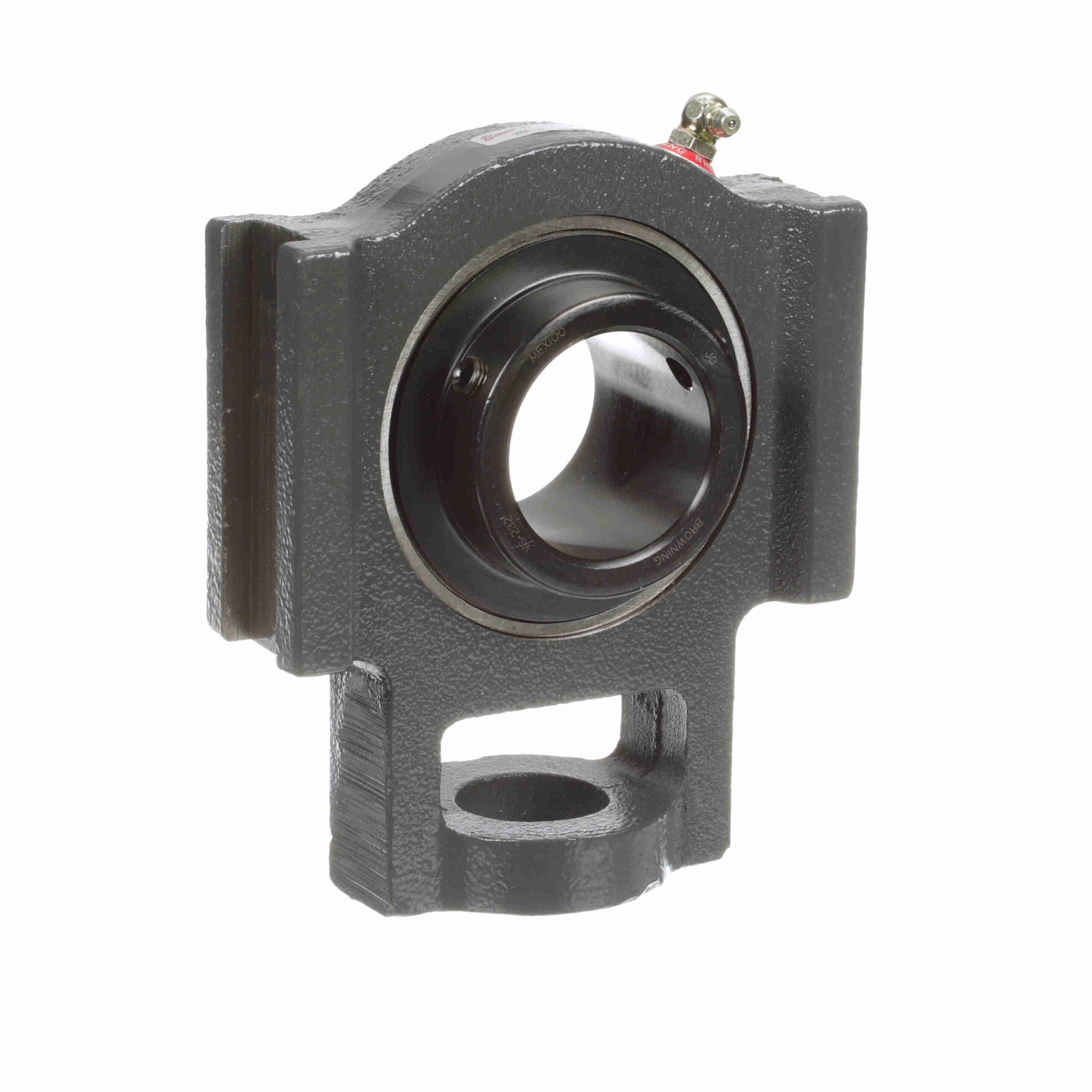

VTWS-232

Powder coat epoxy cast iron housing
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Single lip contact seal and flinger

Expansion:	No	Insert No.:	VS-232
Seal Type:	Single Lip Contact Seal with Flinger	Housing Material:	Cast Iron
Measure Units:	Inch	Retainer Type:	Ball Riding Retainer
Maximum Operating Temperature:	200 °F	Speed (Max):	2500
Rolling Element:	Ball Bearing	Insert Material:	52100 Bearing Steel, Black Oxided Inner
Duty Series:	Standard Duty	Housing Type:	Take-Up Block, Wide Slot
Locking Type:	Setscrew	Internal Clearance:	Standard
Bore Shape:	Straight	Lubrication:	Lithium Complex NLGI 2 Grease
Relubricatable:	Yes	Frame Type:	Center Pull Wide Slot
Radial Dynamic Load Capacity (lb):	9, 752	Housing Construction:	One Piece
Misalignment:	±1.5° Misalignment - Static Only	End Cap:	No
Bearing Insert Coating:	Black Oxide Coated Inner Ring	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Misalignment Type:	Static Only
Retainer Material:	Molded fiber glass reinforced nylon	Housing Color:	Gray
Series:	VTWS-200	Unit Type:	Side Mount
Component Description:	Take Up Bearing Only	UPC:	662289528639
Weight:	8.32 LB	Packaged Length:	7.5 Inches
Packaged Width:	7.38 Inches	Packaged Height:	2.63 Inches
HTC:	8483.20.4040	Country of Origin:	Mexico
