- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-222

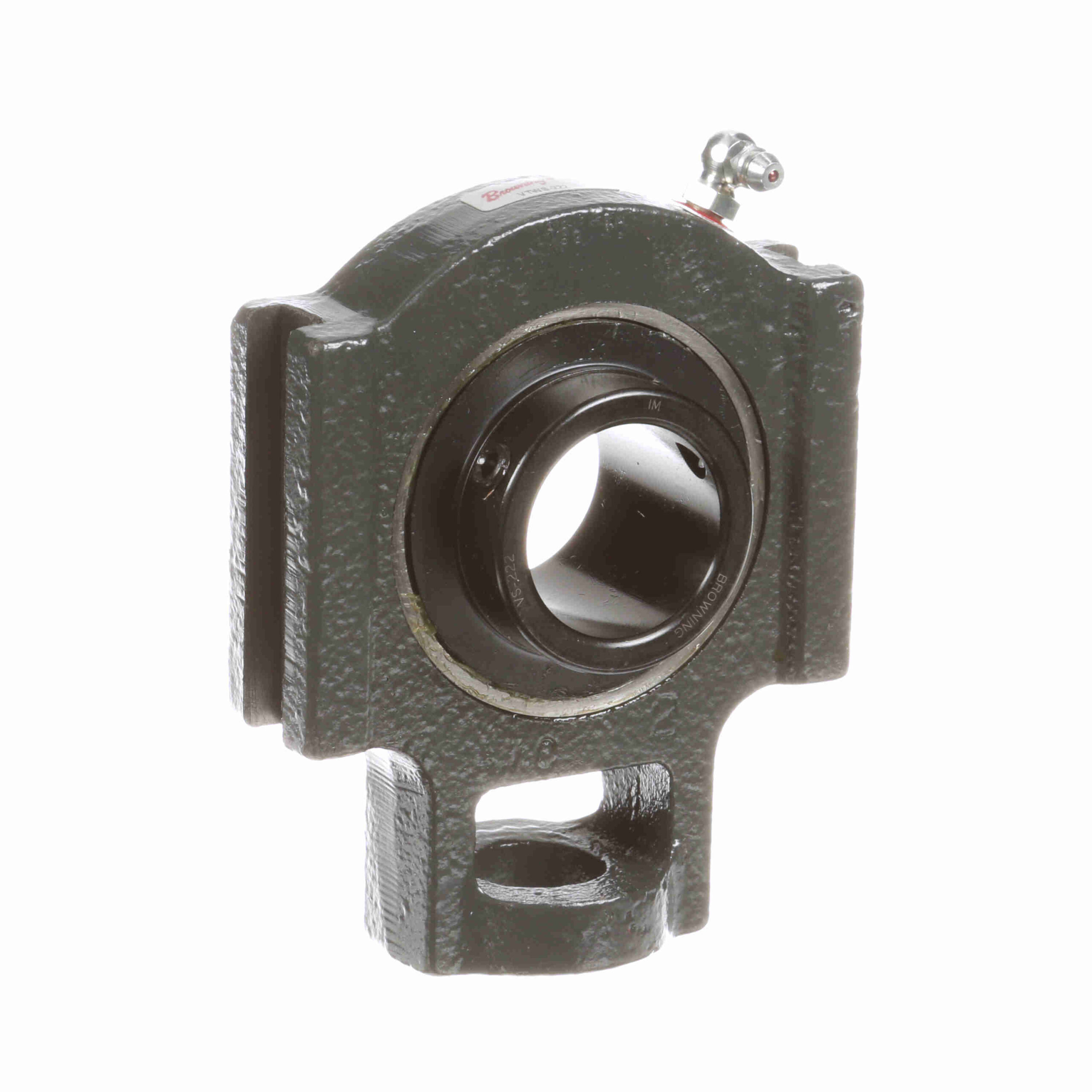

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-222
$180.11
Out of stock
Out of stock
| Insert No.: | VS-222 | Housing Material: | Cast Iron |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Housing Type: | Take-Up Block, Wide Slot |
| Expansion: | No | Measure Units: | Inch |
| Maximum Operating Temperature: | 200 °F | Speed (Max): | 4000 |
| Seal Type: | Single Lip Contact Seal with Flinger | Retainer Type: | Ball Riding Retainer |
| Duty Series: | Standard Duty | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Locking Type: | Setscrew |
| Frame Type: | Center Pull Wide Slot | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| End Cap: | No | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Series: | VTWS-200 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289528509 |
| Weight: | 3.61 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
