- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTBS-224

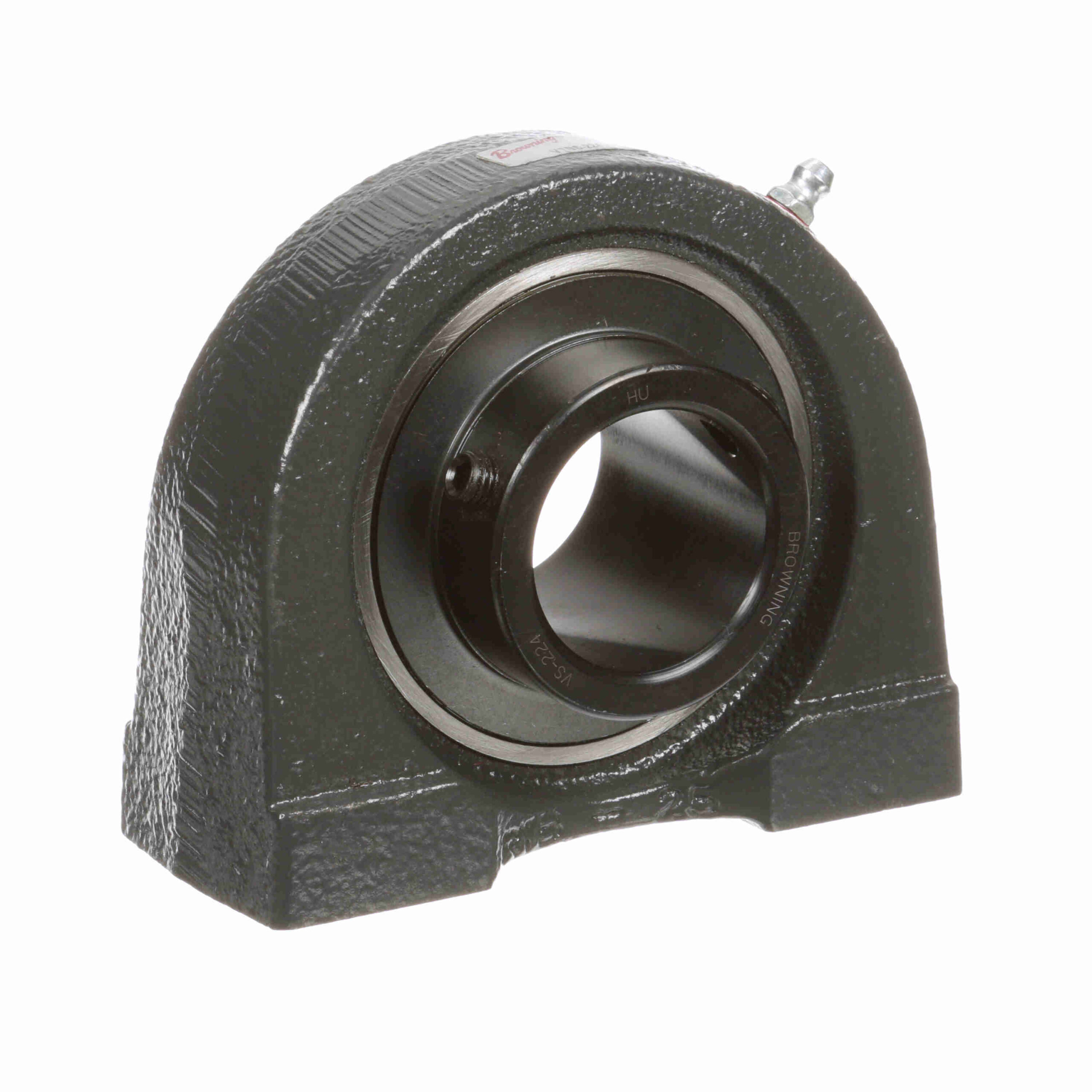

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTBS-224
$195.00
Out of stock
Out of stock
| Housing Type: | Pillow Block, Tapped Base | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Duty Series: | Standard Duty | Housing Material: | Cast Iron |
| Housing Base: | Semi-Solid | Maximum Operating Temperature: | 200 °F |
| Insert No.: | VS-224 | Seal Type: | Single Lip Contact Seal with Flinger |
| Speed (Max): | 3500 | Retainer Type: | Ball Riding Retainer |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Expansion: | No |
| Measure Units: | Inch | Bore Shape: | Straight |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 7, 340 | Outer Ring Land Profile: | Standard |
| End Cap: | No | Housing Color: | Gray |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662289530267 |
| Weight: | 4.32 LB | Packaged Length: | 4.75 Inches |
| Packaged Width: | 2.63 Inches | Packaged Height: | 4.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
