- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTBS-212

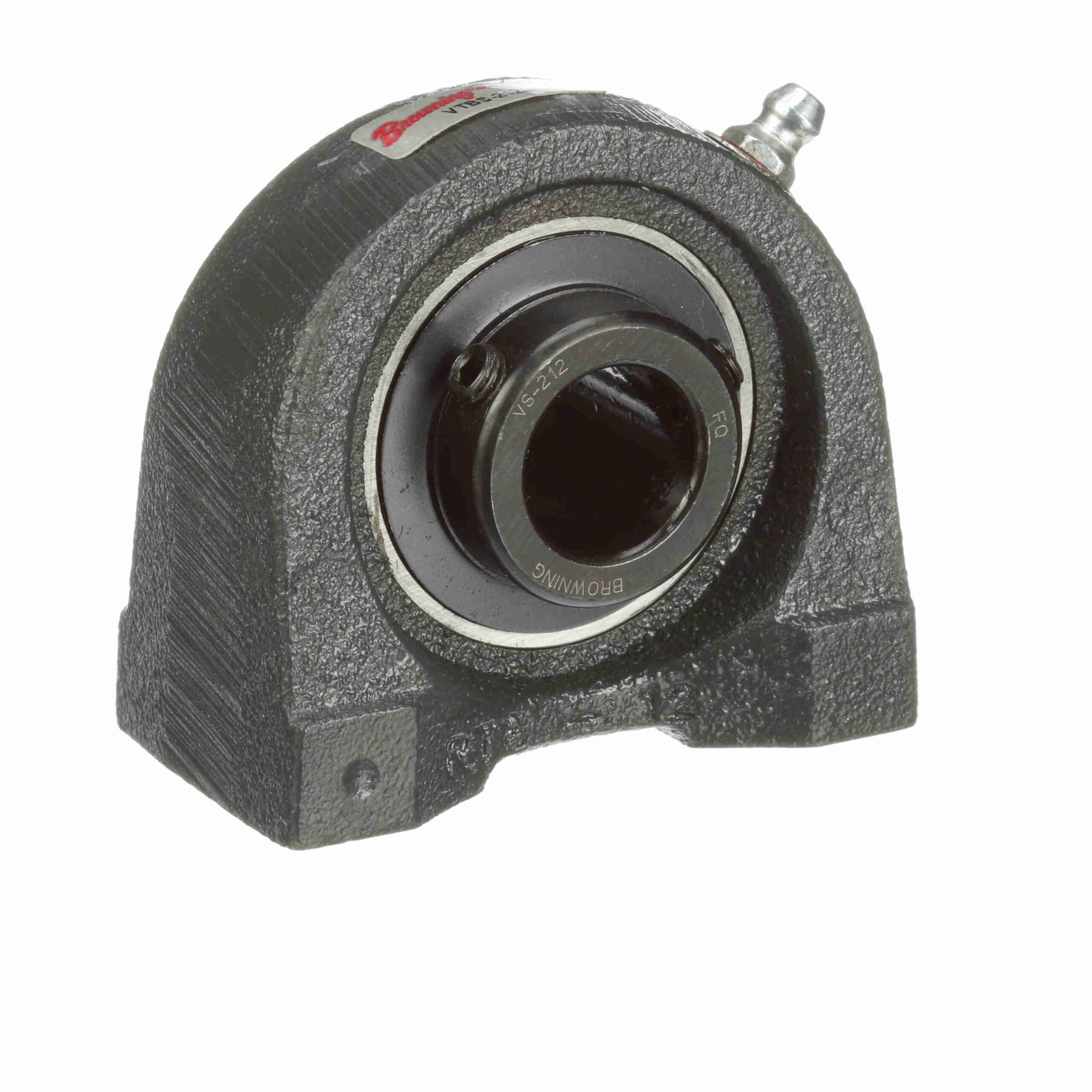

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTBS-212
$107.21
Availability: 2 in stock
Availability: 2 in stock
| Retainer Type: | Ball Riding Retainer | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Housing Material: | Cast Iron | Housing Type: | Pillow Block; Tapped Base |
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
| Housing Base: | Semi-Solid | Duty Series: | Standard Duty |
| Maximum Operating Temperature: | 200 °F | Expansion: | No |
| Insert No.: | VS-212 | Speed (Max): | 6500 |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 2, 611 |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Internal Clearance: | Standard | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| End Cap: | No | Housing Color: | Gray |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 1, 444 | UPC: | 662289530106 |
| Weight: | 1.41 LB | Packaged Length: | 3.4 Inches |
| Packaged Width: | 3.1 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
