- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VTBE-124

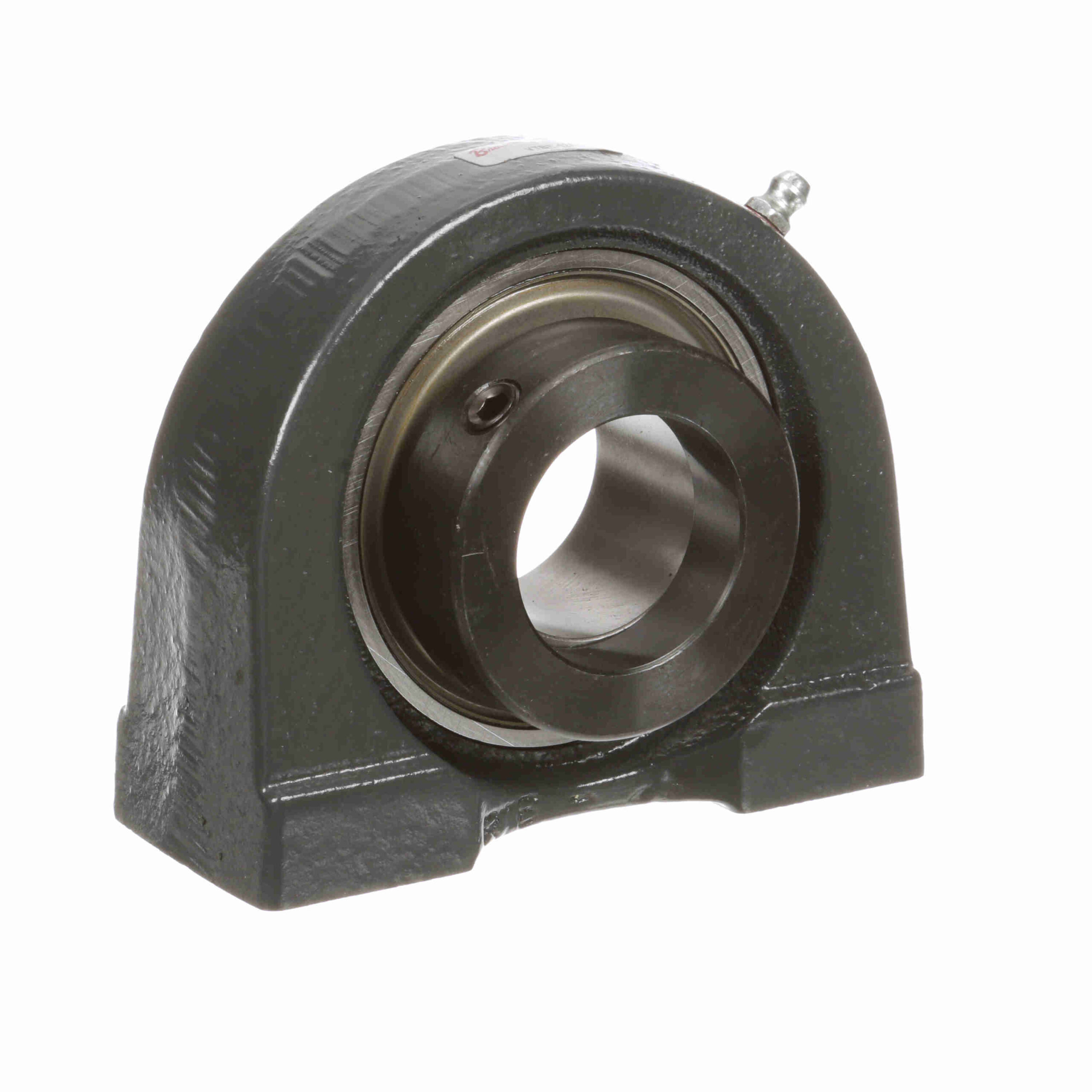

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VTBE-124
$178.01
Out of stock
Out of stock
| Speed (Max): | 2500 | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Housing Material: | Cast Iron | Housing Base: | Semi-Solid |
| Duty Series: | Intermediate Duty | Housing Type: | Pillow Block; Tapped Base |
| Rolling Element: | Ball Bearing | Expansion: | No |
| Seal Type: | Single Lip Contact Seal | Maximum Operating Temperature: | 200 °F |
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel |
| Insert No.: | VE-124 | Locking Type: | Eccentric |
| Misalignment: | ±1.5° Misalignment - Static Only | Bore Shape: | Straight |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 7, 340 | Replaceable Insert: | Yes |
| End Cap: | No | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Bearing Insert Coating: | Uncoated | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662460339450 |
| Weight: | 4.49 LB | Packaged Length: | 5.2 Inches |
| Packaged Width: | 4.8 Inches | Packaged Height: | 2.3 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
