- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPS-324 AH

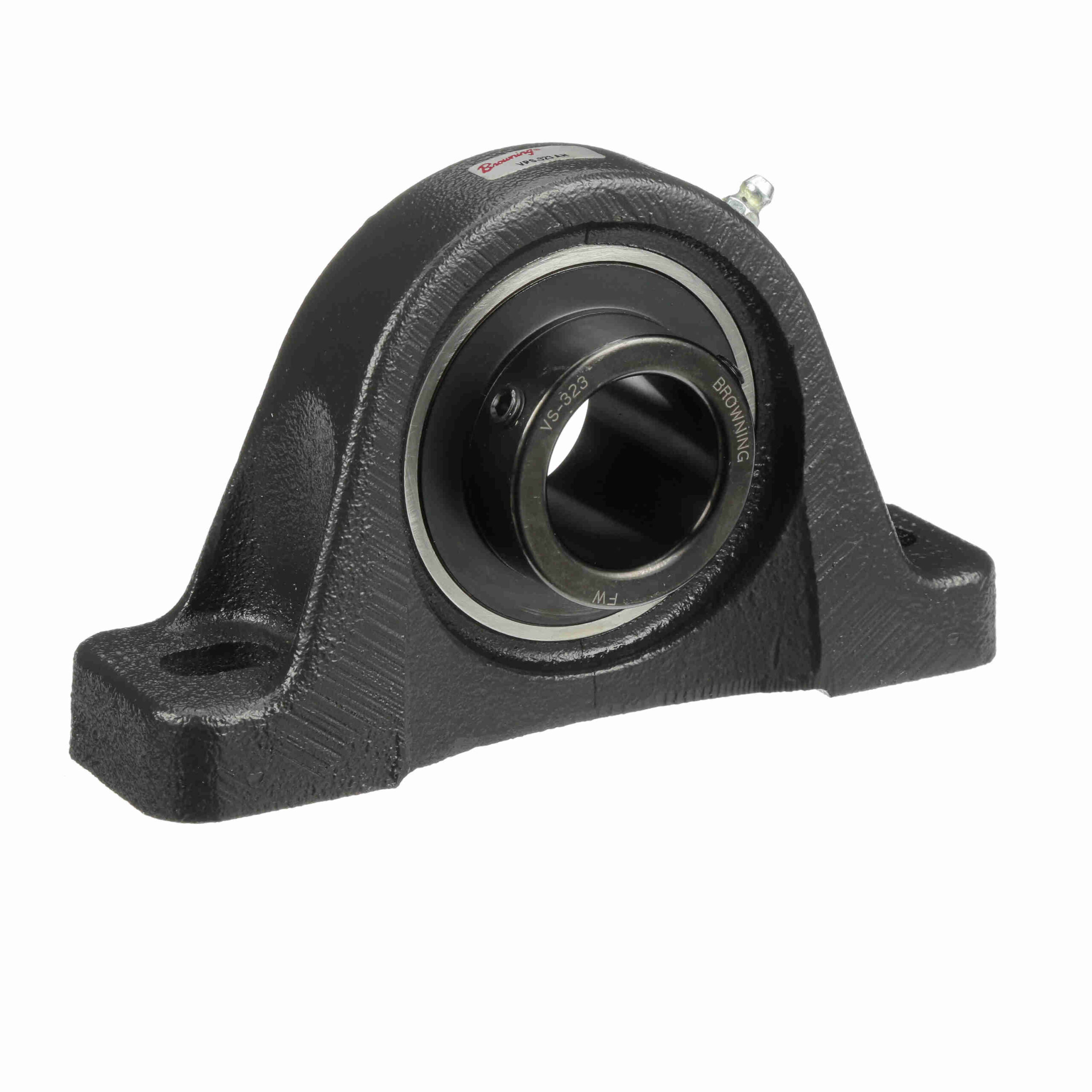

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – Air Handling Housing Fit, Noise Tested – VPS-324 AH
Out of stock
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Seal Type: | Single Lip Contact Seal with Flinger | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Platform: | Air Handling |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Options: | Air Handling Housing Fit, Noise Tested | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 5, 139 lb |
| Housing Type: | Pillow Block, Two Bolt | Fixed vs. Expansion: | Fixed |
| Locking Type: | Setscrew | Maximum Speed (RPM): | 3000 rpm |
| Retainer Type: | Ball Riding Retainer | Duty/Series: | Medium Duty |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Style: | Pillow Block | Maximum Operating Temperature (F): | 200 °F |
| Insert Number: | VS-324 | Ability to Relubricate: | Yes |
| UPC: | 662460000000 | Weight: | 6.48 LB |
| Packaged Length: | 5.4 Inches | Packaged Width: | 8 Inches |
| Packaged Height: | 2.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
