- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPS-319 AH

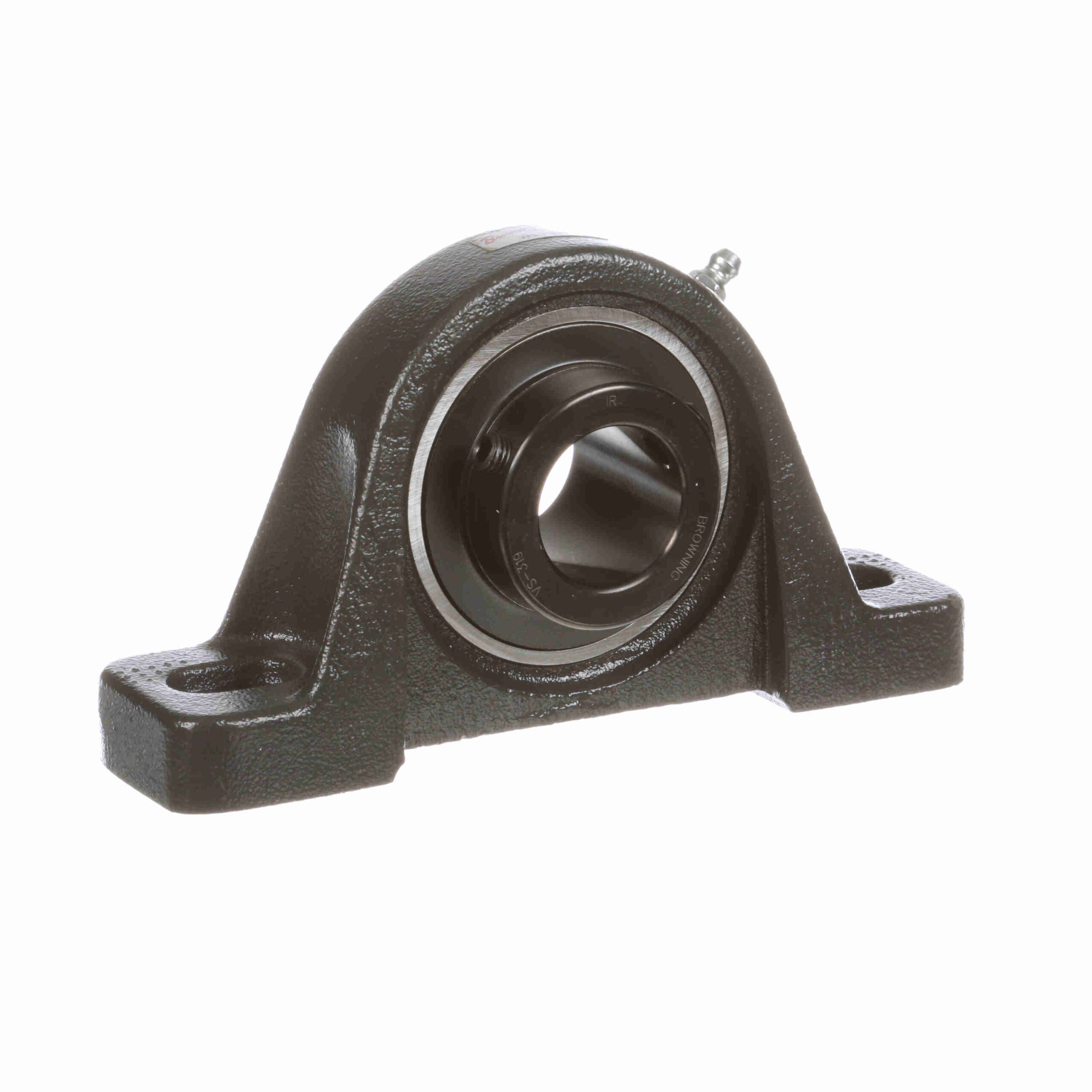

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – Air Handling Housing Fit, Noise Tested – VPS-319 AH
$161.87
Out of stock
Out of stock
| Internal Clearance: | Standard | Speed (Max): | 4000 |
|---|---|---|---|
| Insert No.: | VS-319 | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Retainer Type: | Ball Riding Retainer | Housing Type: | Pillow Block; Two Bolt |
| Maximum Operating Temperature: | 200 °F | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Material: | Cast Iron | Duty Series: | Medium Duty |
| Expansion: | No | Housing Base: | Semi-Solid |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Relubricatable: | Yes | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Platform: | Air Handling |
| Options: | Air Handling Housing Fit; Noise Tested | End Cap: | No |
| Outer Ring Land Profile: | Standard | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662460066776 |
| Weight: | 3.71 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
