- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-226

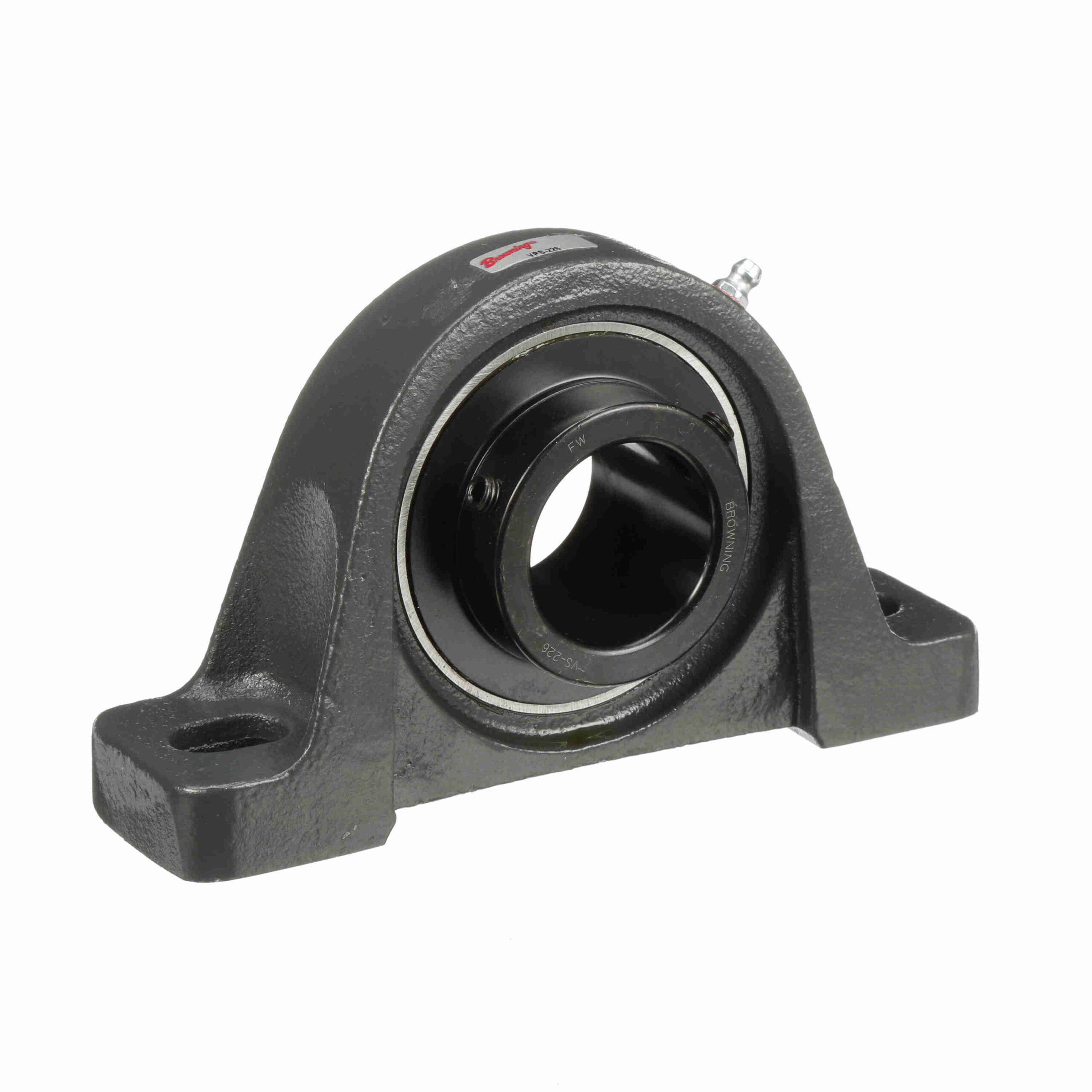

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-226
$132.96
Availability: 45 in stock
Availability: 45 in stock
| Maximum Operating Temperature: | 200 °F | Housing Type: | Pillow Block; Two Bolt |
|---|---|---|---|
| Expansion: | No | Duty Series: | Standard Duty |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Housing Material: | Cast Iron |
| Insert No.: | VS-226 | Internal Clearance: | Standard |
| Measure Units: | Inch | Housing Base: | Semi-Solid |
| Rolling Element: | Ball Bearing | Retainer Type: | Ball Riding Retainer |
| Speed (Max): | 3000 | Seal Type: | Single Lip Contact Seal with Flinger |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Retainer Material: | Molded fiber glass reinforced nylon |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Misalignment Type: | Static Only | End Cap: | No |
| Radial Static Load Capacity (lb): | 5, 139 | UPC: | 662289525584 |
| Weight: | 5.25 LB | Packaged Length: | 7.8 Inches |
| Packaged Width: | 4.6 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
