- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPS-219 AH

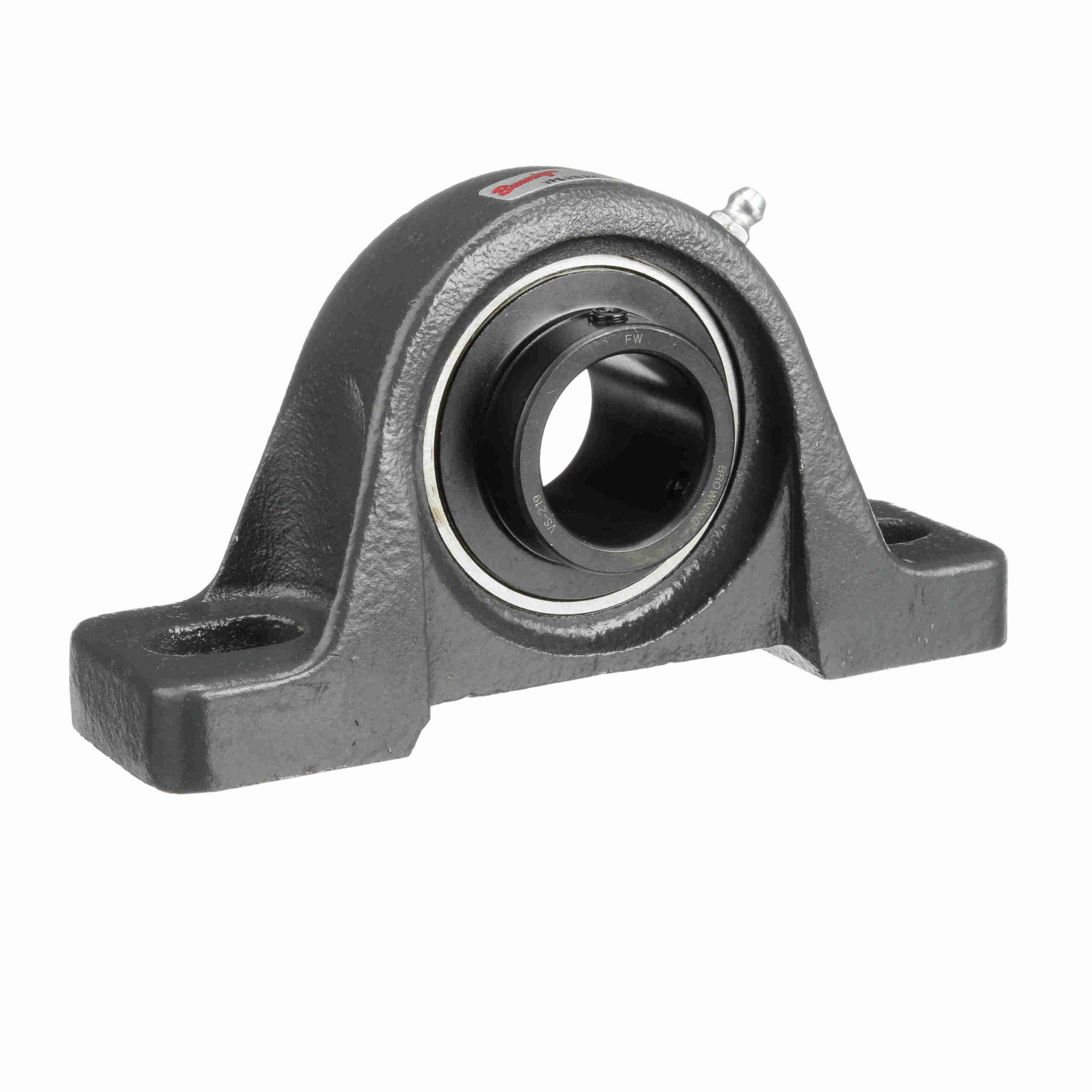

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – Air Handling Housing Fit, Noise Tested – VPS-219 AH
$80.90
Availability: 117 in stock
Availability: 117 in stock
| Duty Series: | Standard Duty | Internal Clearance: | Standard |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Housing Base: | Semi-Solid |
| Expansion: | No | Housing Material: | Cast Iron |
| Insert No.: | VS-219 | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Maximum Operating Temperature: | 200 °F | Rolling Element: | Ball Bearing |
| Speed (Max): | 4500 | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Type: | Pillow Block; Two Bolt | Measure Units: | Inch |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Relubricatable: | Yes | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Options: | Air Handling Housing Fit; Noise Tested |
| End Cap: | No | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Platform: | Air Handling |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662460066639 |
| Weight: | 2.72 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
