- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-212

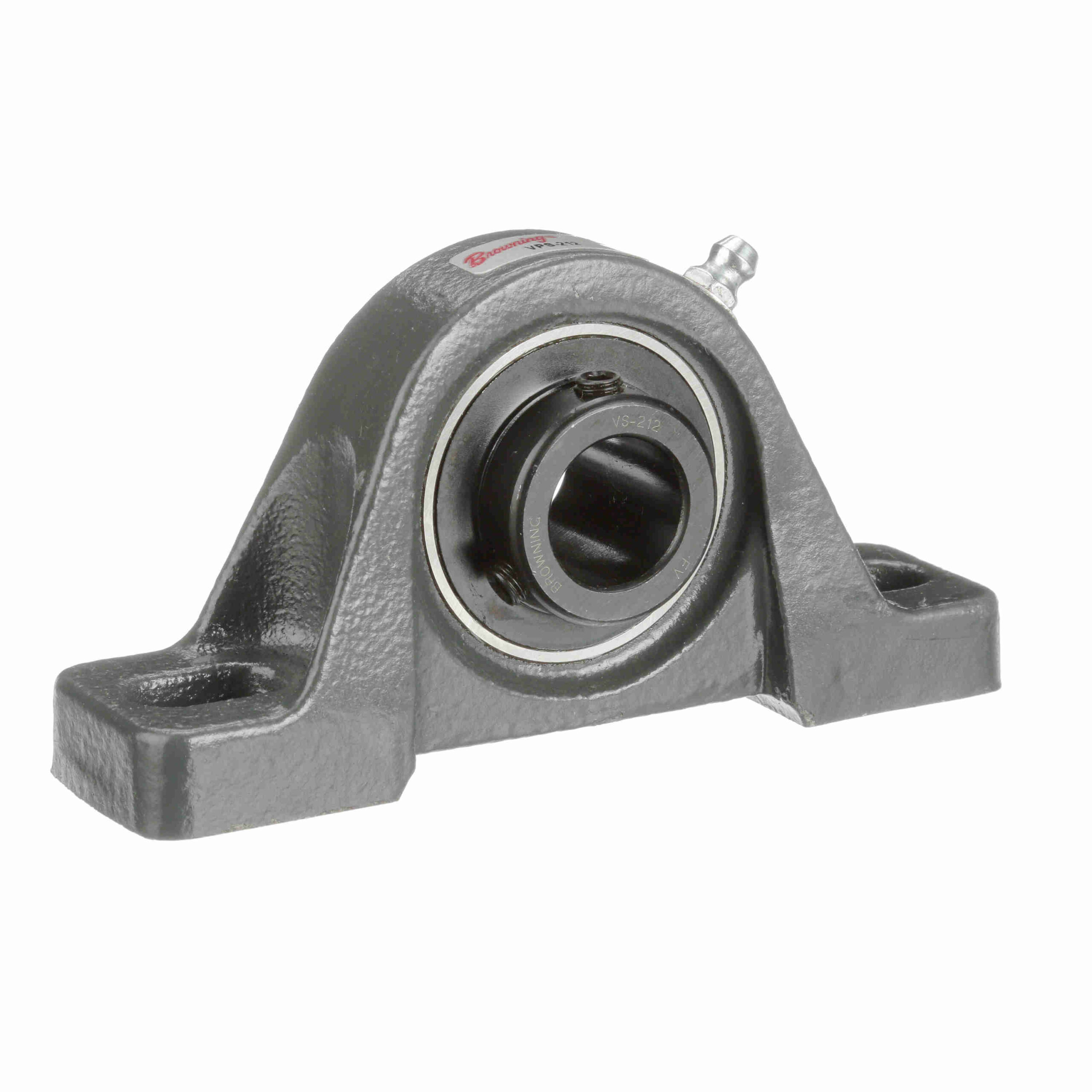

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-212
$65.57
Availability: 50 in stock
Availability: 50 in stock
| Maximum Operating Temperature: | 200 °F | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Housing Base: | Semi-Solid | Speed (Max): | 6500 |
| Insert No.: | VS-212 | Internal Clearance: | Standard |
| Housing Type: | Pillow Block; Two Bolt | Expansion: | No |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Seal Type: | Single Lip Contact Seal with Flinger |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Housing Material: | Cast Iron | Duty Series: | Standard Duty |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 611 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Relubricatable: | Yes | Replaceable Insert: | Yes |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 1, 444 | UPC: | 662289525362 |
| Weight: | 1.47 LB | Packaged Length: | 3.3 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 1.7 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
