- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPLS-235

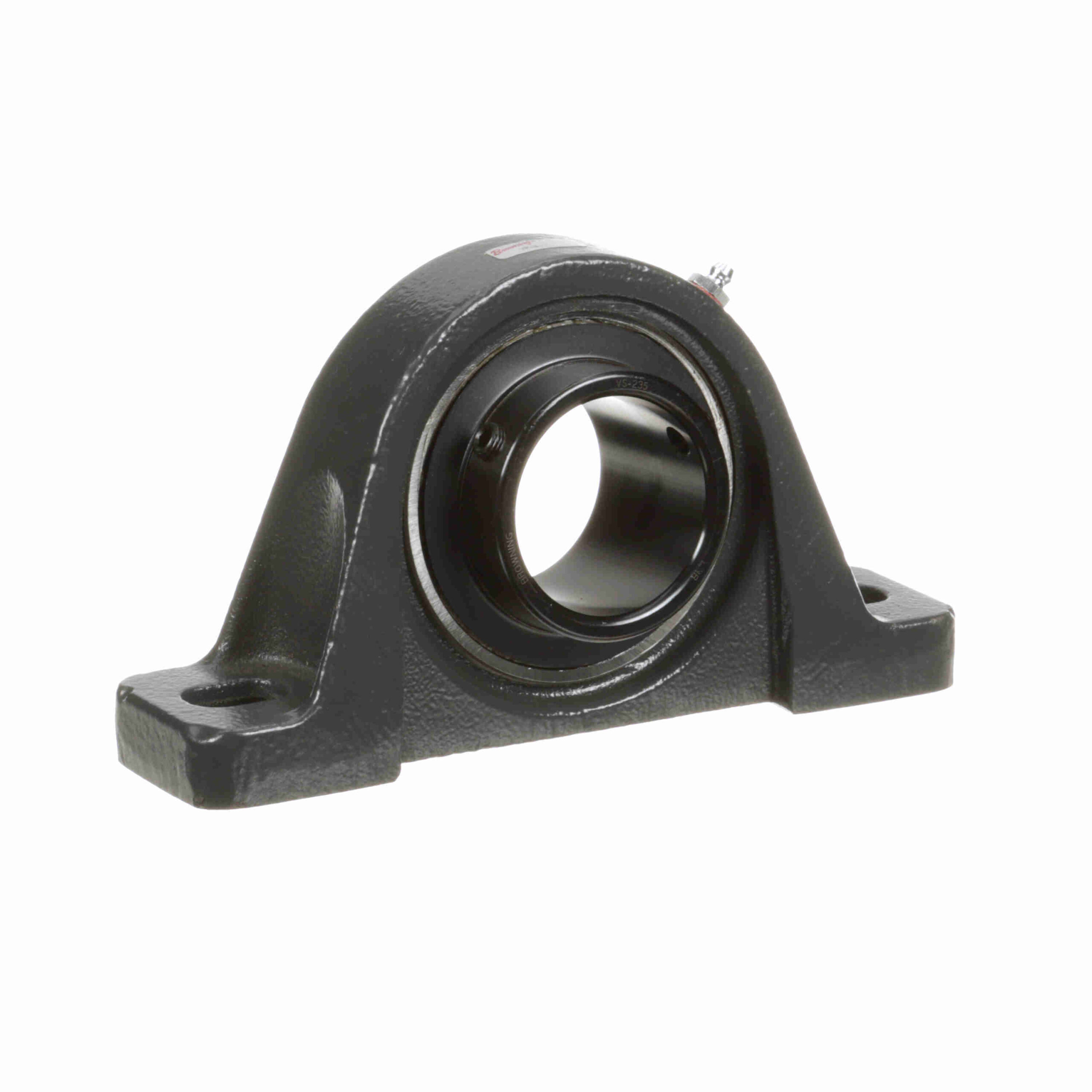

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPLS-235
$432.45
Out of stock
Out of stock
| Insert No.: | VS-235 | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Housing Material: | Cast Iron |
| Duty Series: | Standard Duty | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Housing Base: | Semi-Solid | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Maximum Operating Temperature: | 200 °F |
| Expansion: | No | Seal Type: | Single Lip Contact Seal with Flinger |
| Internal Clearance: | Standard | Speed (Max): | 2500 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Relubricatable: | Yes | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 6, 601 | UPC: | 662289525072 |
| Weight: | 8.00 LB | Packaged Length: | 9.25 Inches |
| Packaged Width: | 5.12 Inches | Packaged Height: | 3 Inches |
| HTC: | 8482.20.8040 | Country of Origin: | Mexico |
