- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPLS-224

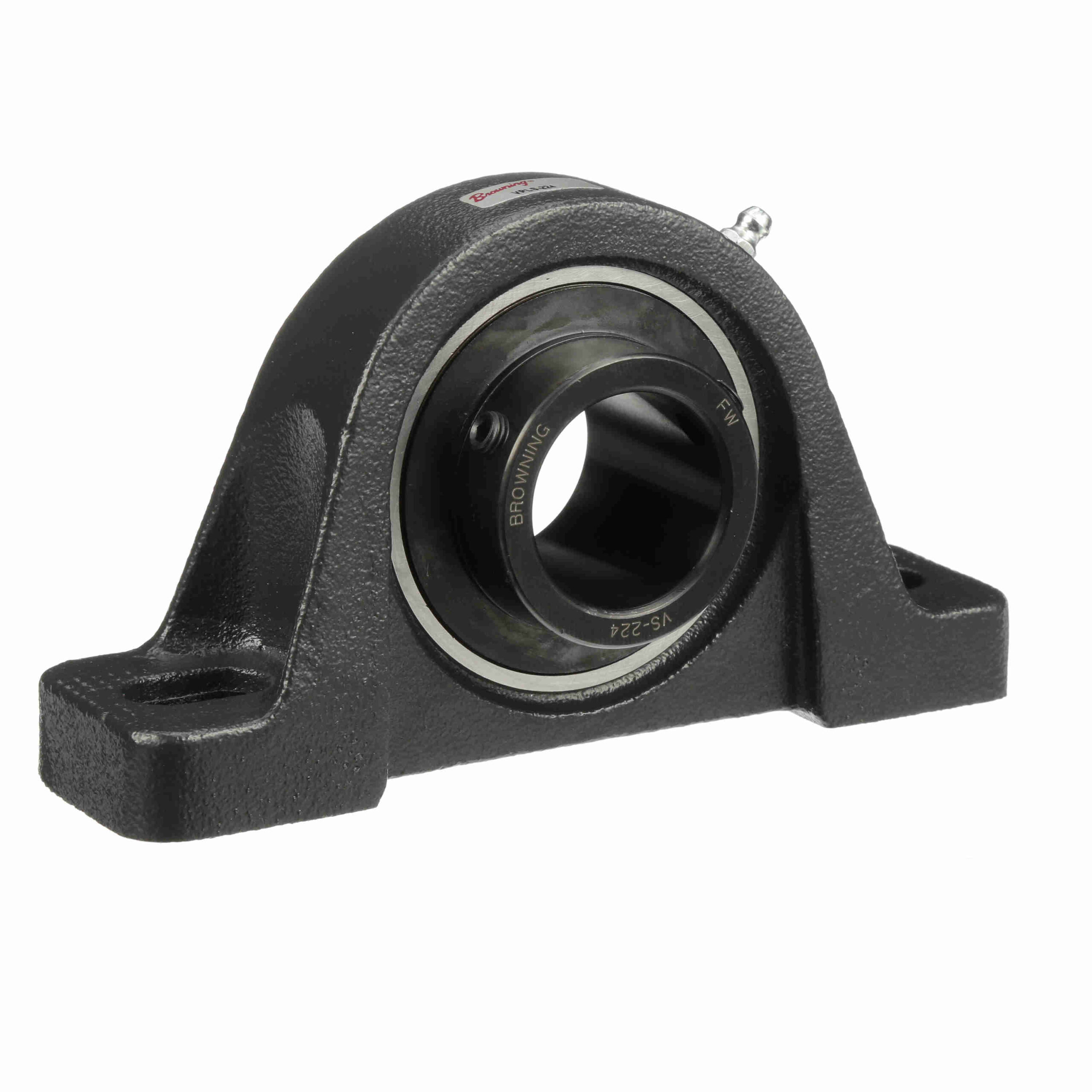

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPLS-224
$122.73
Out of stock
Out of stock
| Duty Series: | Standard Duty | Internal Clearance: | Standard |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Retainer Type: | Ball Riding Retainer | Measure Units: | Inch |
| Housing Type: | Pillow Block; Two Bolt; Low Base | Speed (Max): | 3500 |
| Insert No.: | VS-224 | Maximum Operating Temperature: | 200 °F |
| Seal Type: | Single Lip Contact Seal with Flinger | Expansion: | No |
| Housing Base: | Semi-Solid | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Outer Ring Land Profile: | Standard |
| End Cap: | No | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662289524945 |
| Weight: | 4.57 LB | Packaged Length: | 7.8 Inches |
| Packaged Width: | 4.6 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
