- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPLS-223

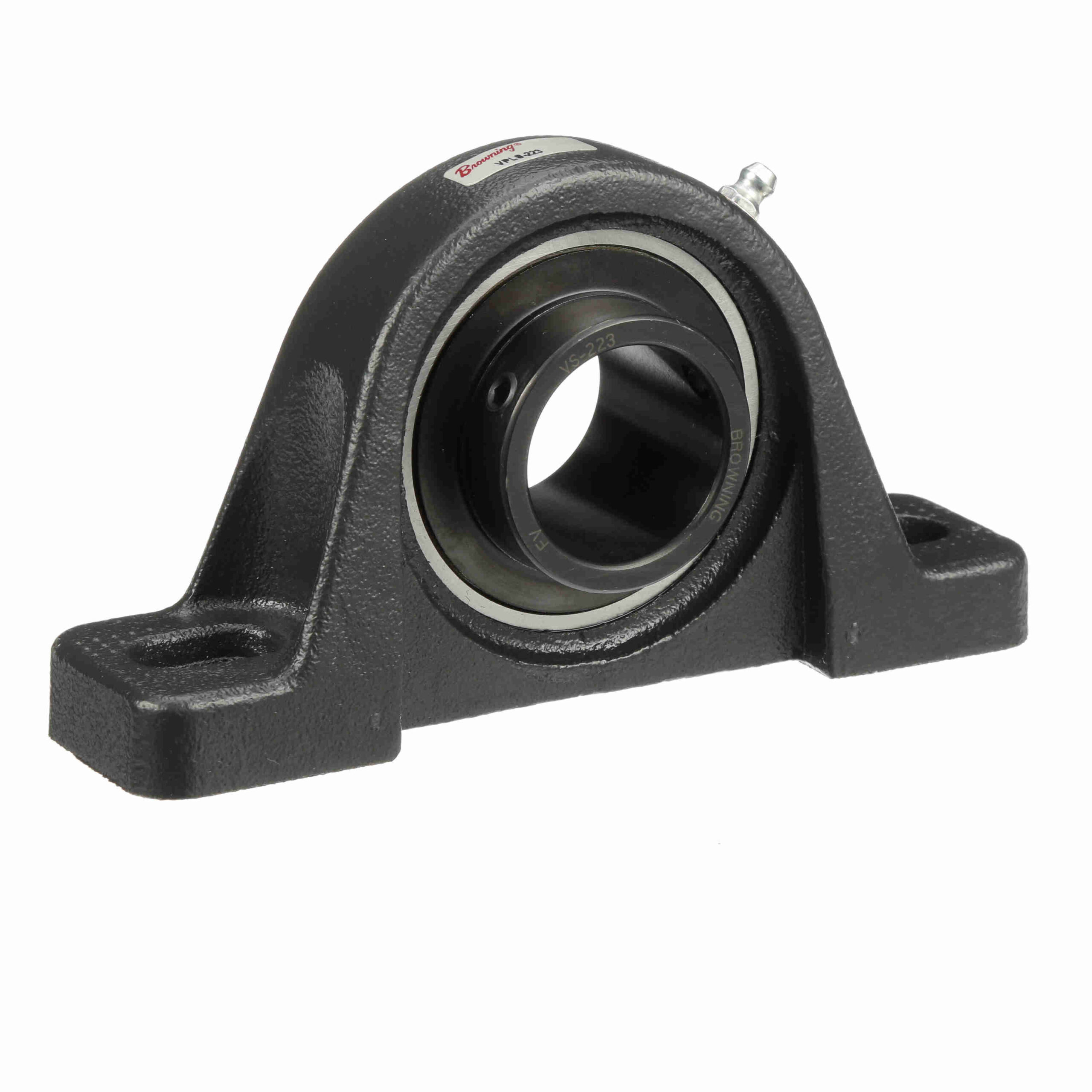

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPLS-223
$118.56
Availability: 15 in stock
Availability: 15 in stock
| Expansion: | No | Insert No.: | VS-223 |
|---|---|---|---|
| Maximum Operating Temperature: | 200 °F | Housing Material: | Cast Iron |
| Housing Type: | Pillow Block; Two Bolt; Low Base | Measure Units: | Inch |
| Seal Type: | Single Lip Contact Seal with Flinger | Duty Series: | Standard Duty |
| Rolling Element: | Ball Bearing | Retainer Type: | Ball Riding Retainer |
| Housing Base: | Semi-Solid | Speed (Max): | 4000 |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | Replaceable Insert: | Yes |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662289524914 |
| Weight: | 3.35 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
