- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPLS-222

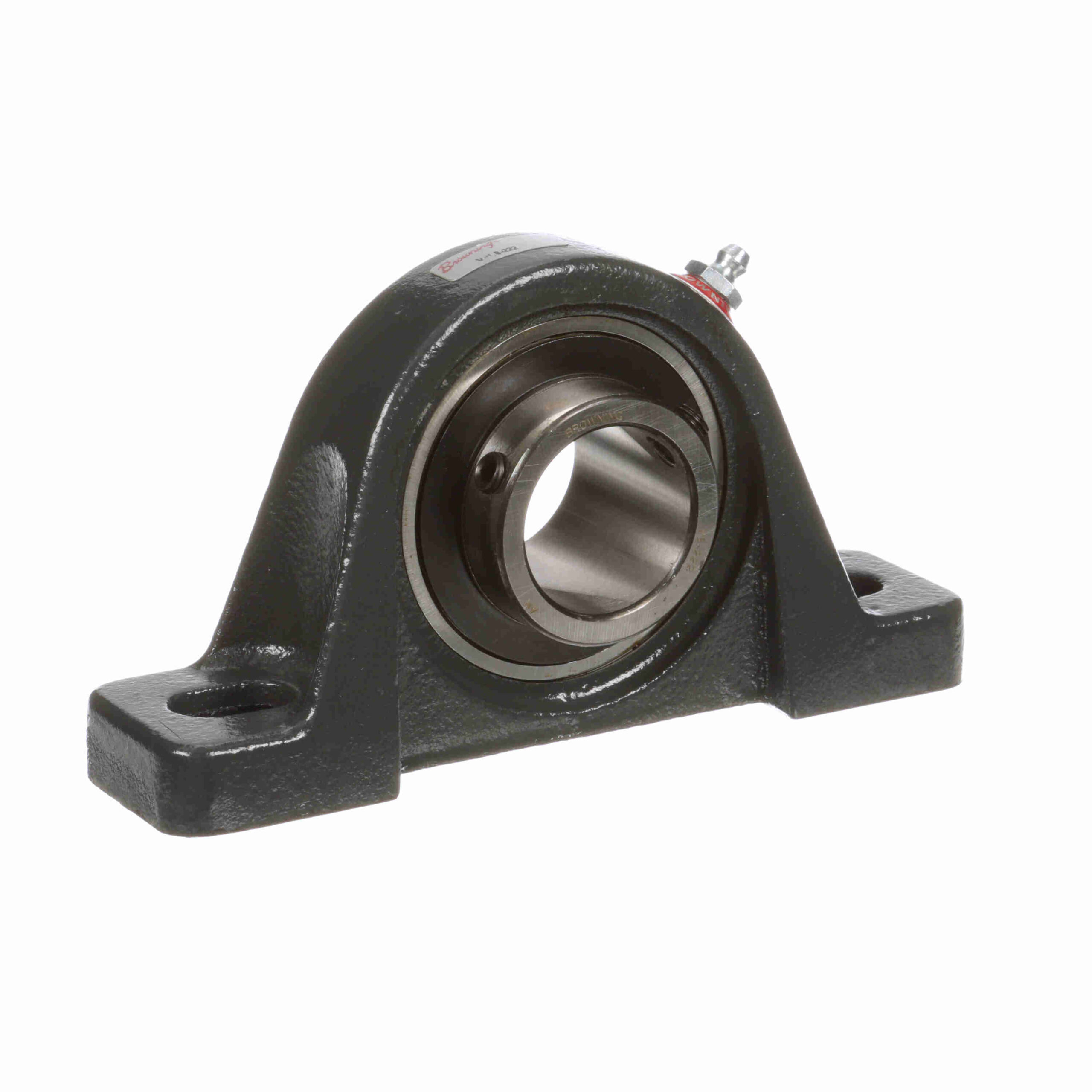

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPLS-222
$238.16
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Measure Units: | Inch | Housing Base: | Semi-Solid |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 3, 493 lb |
| Housing Material: | Cast Iron | Retainer Type: | Ball Riding Retainer |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Maximum Speed (RPM): | 4000 rpm | Fixed vs. Expansion: | Fixed |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Housing Style: | Pillow Block |
| Duty/Series: | Standard Duty | Ability to Relubricate: | Yes |
| Insert Number: | VS-222 | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662290000000 | Weight: | 3.50 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
