- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VPLE-228

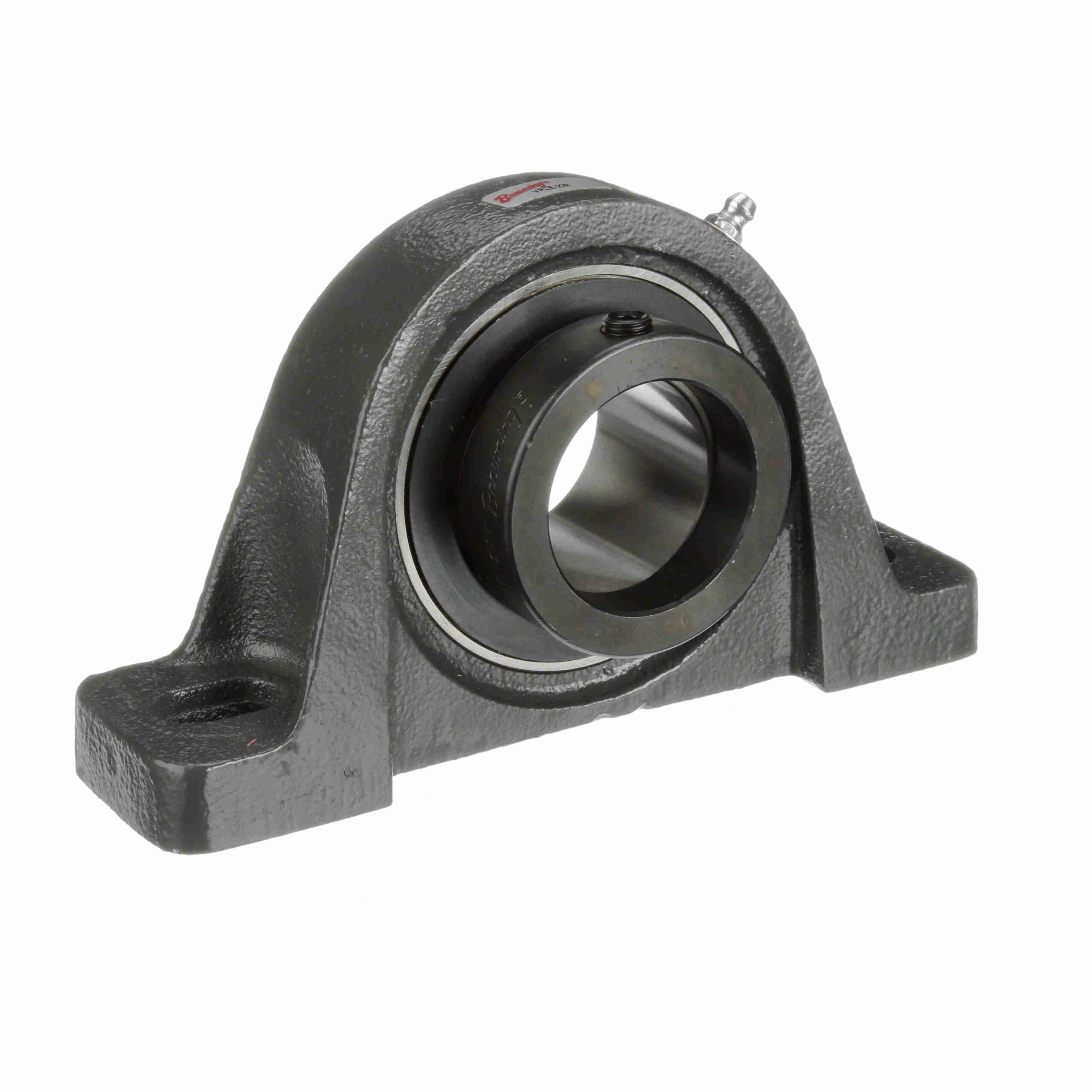

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VPLE-228
$134.28
Out of stock
Out of stock
| Internal Clearance: | Standard | Speed (Max): | 3000 |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Maximum Operating Temperature: | 200 °F |
| Expansion: | No | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Duty Series: | Standard Duty | Seal Type: | Single Lip Contact Seal with Flinger |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Housing Base: | Semi-Solid | Insert No.: | VE-228 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Locking Type: | Eccentric |
| Misalignment: | ±1.5° Misalignment - Static Only | End Cap: | No |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 5, 139 | UPC: | 662289524365 |
| Weight: | 5.20 LB | Packaged Length: | 4.9 Inches |
| Packaged Width: | 7.8 Inches | Packaged Height: | 2.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
