- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VPLE-219

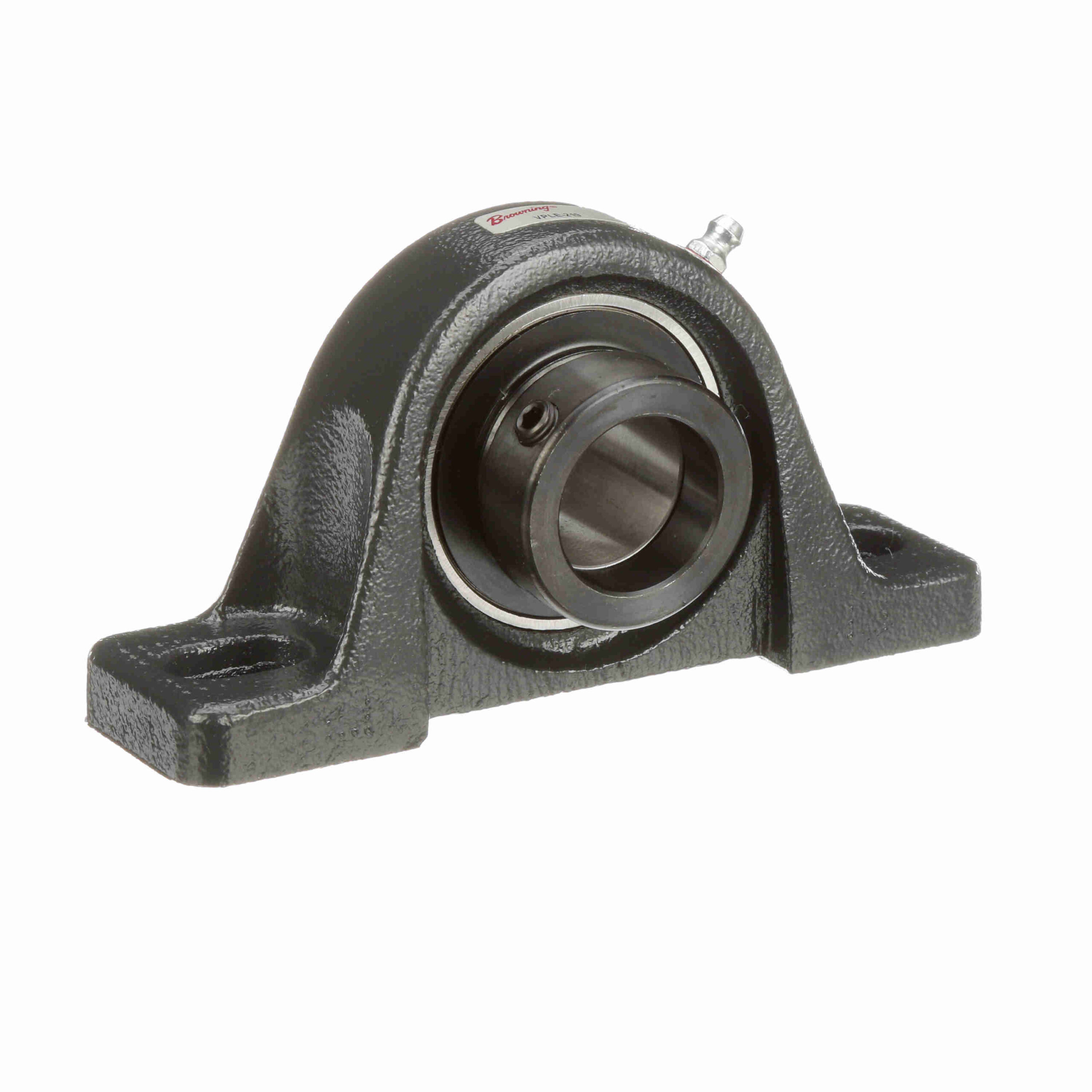

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VPLE-219
$95.66
Out of stock
Out of stock
| Internal Clearance: | Standard | Expansion: | No |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Measure Units: | Inch | Speed (Max): | 4500 |
| Insert No.: | VE-219 | Duty Series: | Standard Duty |
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 200 °F |
| Retainer Type: | Ball Riding Retainer | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Base: | Semi-Solid | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Locking Type: | Eccentric | Relubricatable: | Yes |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| End Cap: | No | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289524211 |
| Weight: | 2.72 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
