- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VPLE-218

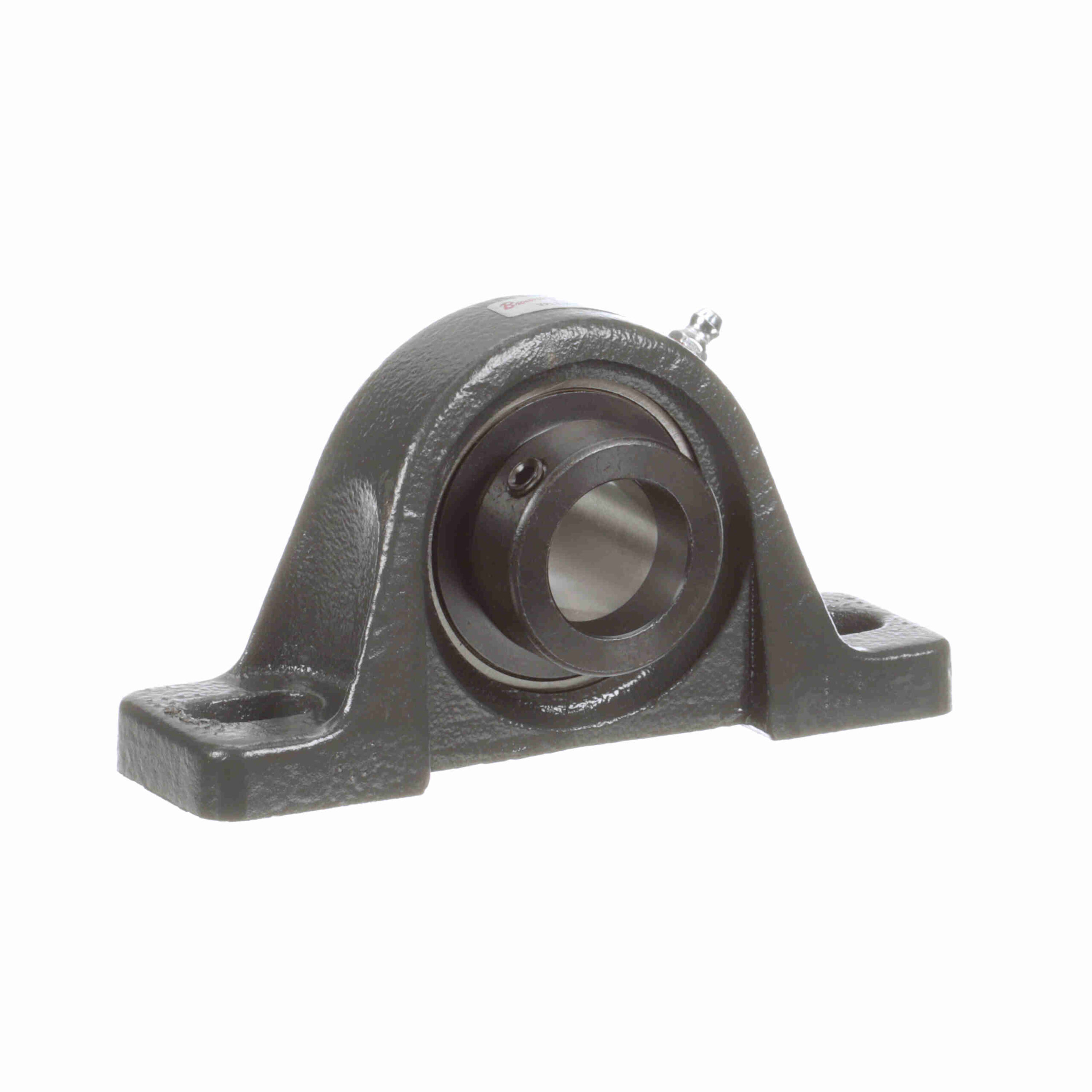

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VPLE-218
$235.68
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Housing Base: | Semi-Solid |
|---|---|---|---|
| Internal Clearance: | Standard | Housing Material: | Cast Iron |
| Speed (Max): | 4500 | Insert No.: | VE-218 |
| Expansion: | No | Retainer Type: | Ball Riding Retainer |
| Duty Series: | Standard Duty | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Seal Type: | Single Lip Contact Seal with Flinger |
| Measure Units: | Inch | Maximum Operating Temperature: | 200 °F |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Locking Type: | Eccentric | Misalignment: | ±1.5° Misalignment - Static Only |
| Relubricatable: | Yes | Replaceable Insert: | Yes |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289524204 |
| Weight: | 2.72 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
