- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPLE-132

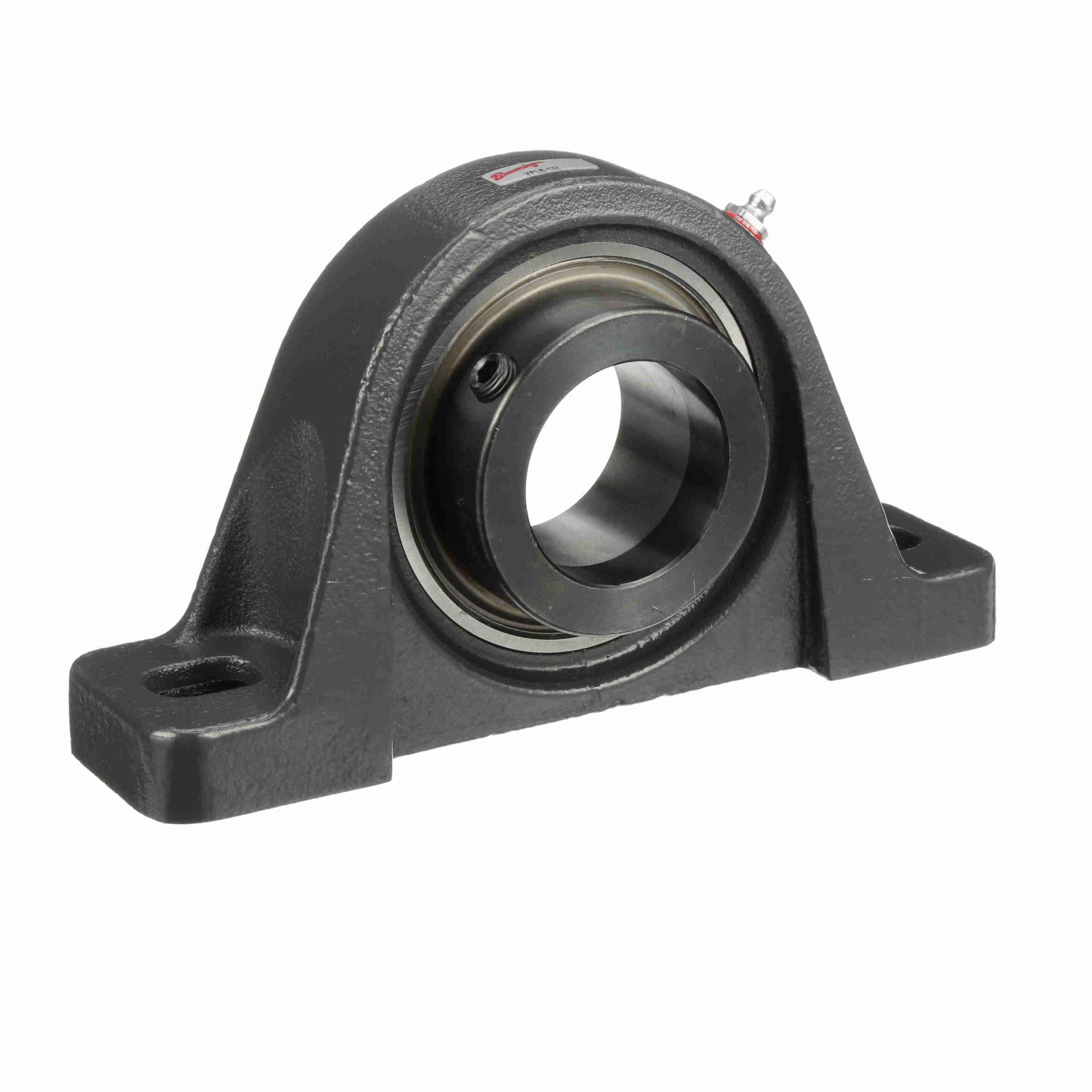

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPLE-132
$194.94
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal | Internal Clearance: | Standard |
|---|---|---|---|
| Housing Base: | Semi-Solid | Rolling Element: | Ball Bearing |
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Radial Static Load Capacity (lb): | 6, 601 lb |
| Duty/Series: | Intermediate Duty | Housing Style: | Pillow Block |
| Retainer Type: | Ball Riding Retainer | Locking Type: | Eccentric |
| Fixed vs. Expansion: | Fixed | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Maximum Speed (RPM): | 1750 rpm | Housing Material: | Cast Iron |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Insert Number: | VE-132 |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662289000000 | Weight: | 8.49 LB |
| Packaged Length: | 10.3 Inches | Packaged Width: | 5.4 Inches |
| Packaged Height: | 3.1 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
