- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPLE-124

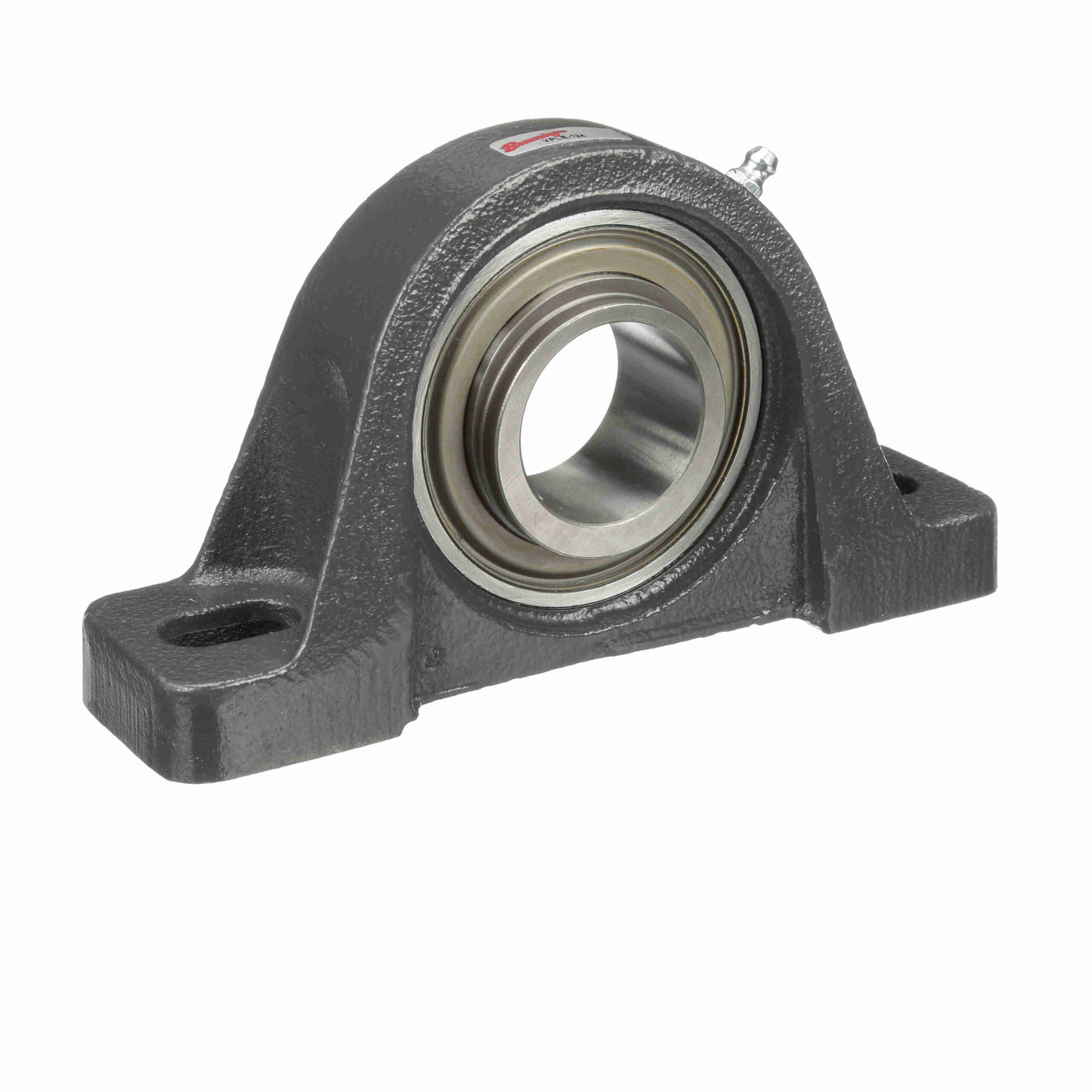

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPLE-124
$116.83
Availability: 1 in stock
Availability: 1 in stock
| Maximum Operating Temperature: | 200 °F | Duty Series: | Intermediate Duty |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Measure Units: | Inch |
| Retainer Type: | Ball Riding Retainer | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Housing Base: | Semi-Solid | Expansion: | No |
| Speed (Max): | 2500 | Insert No.: | VE-124 |
| Internal Clearance: | Standard | Insert Material: | 52100 Bearing Steel |
| Rolling Element: | Ball Bearing | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Eccentric |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Misalignment: | ±1.5° Misalignment - Static Only | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662289317530 |
| Weight: | 4.64 LB | Packaged Length: | 4.8 Inches |
| Packaged Width: | 7.8 Inches | Packaged Height: | 2.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
