- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPLE-118

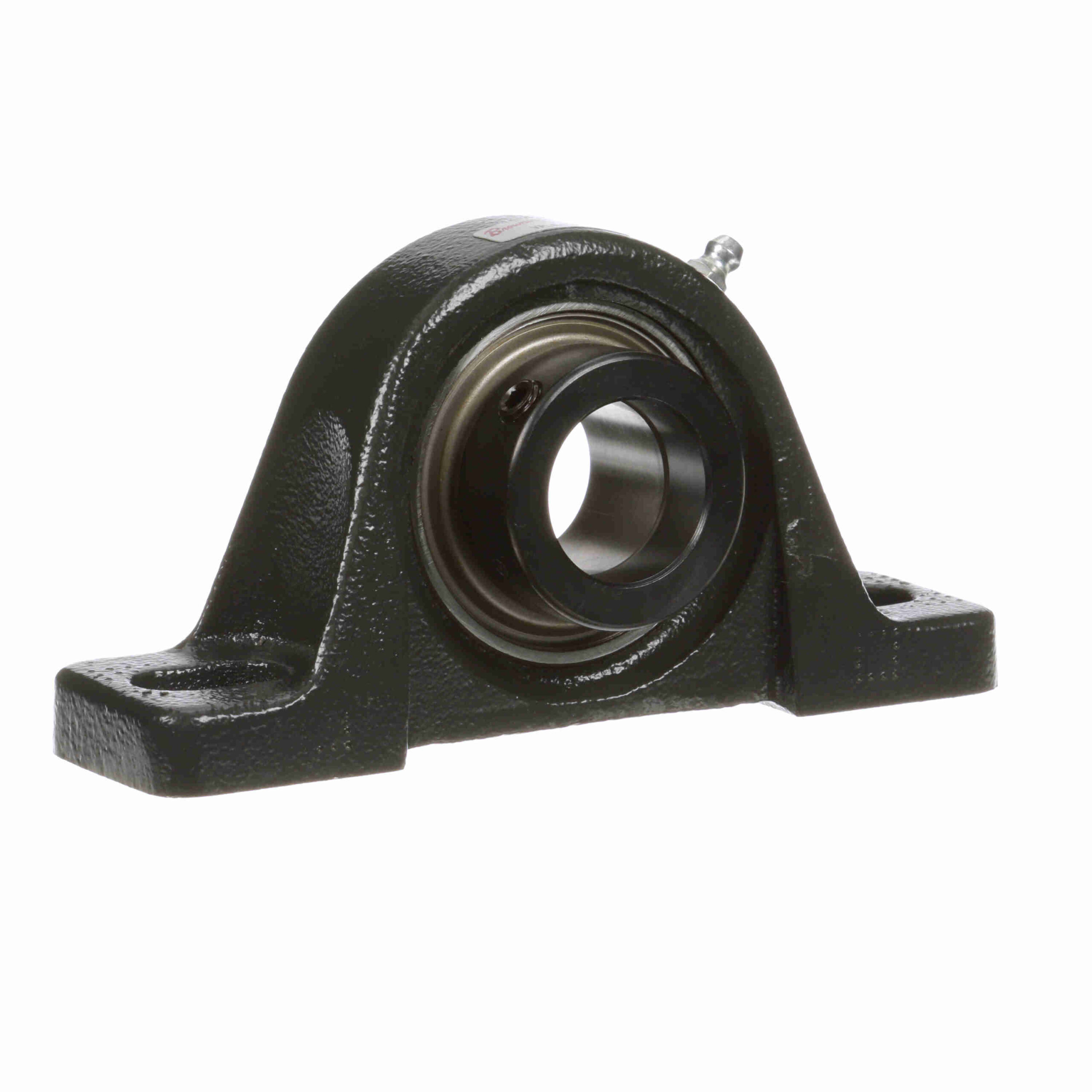

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPLE-118
Out of stock
| Measure Units: | Inch | Internal Clearance: | Standard |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel | Rolling Element: | Ball Bearing |
| Housing Base: | Semi-Solid | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 lb |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Construction: | One Piece |
| End Cap: | No | Housing Color: | Gray |
| Bearing Insert Coating: | Uncoated | Outer Ring Land Profile: | Standard |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 2, 567 lb |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Locking Type: | Eccentric |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Duty/Series: | Intermediate Duty |
| Housing Material: | Cast Iron | Fixed vs. Expansion: | Fixed |
| Housing Style: | Pillow Block | Retainer Type: | Ball Riding Retainer |
| Maximum Speed (RPM): | 3000 rpm | Maximum Operating Temperature (F): | 200 °F |
| Ability to Relubricate: | Yes | Insert Number: | VE-118 |
| UPC: | 662290000000 | Weight: | 2.76 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
