- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPLE-112

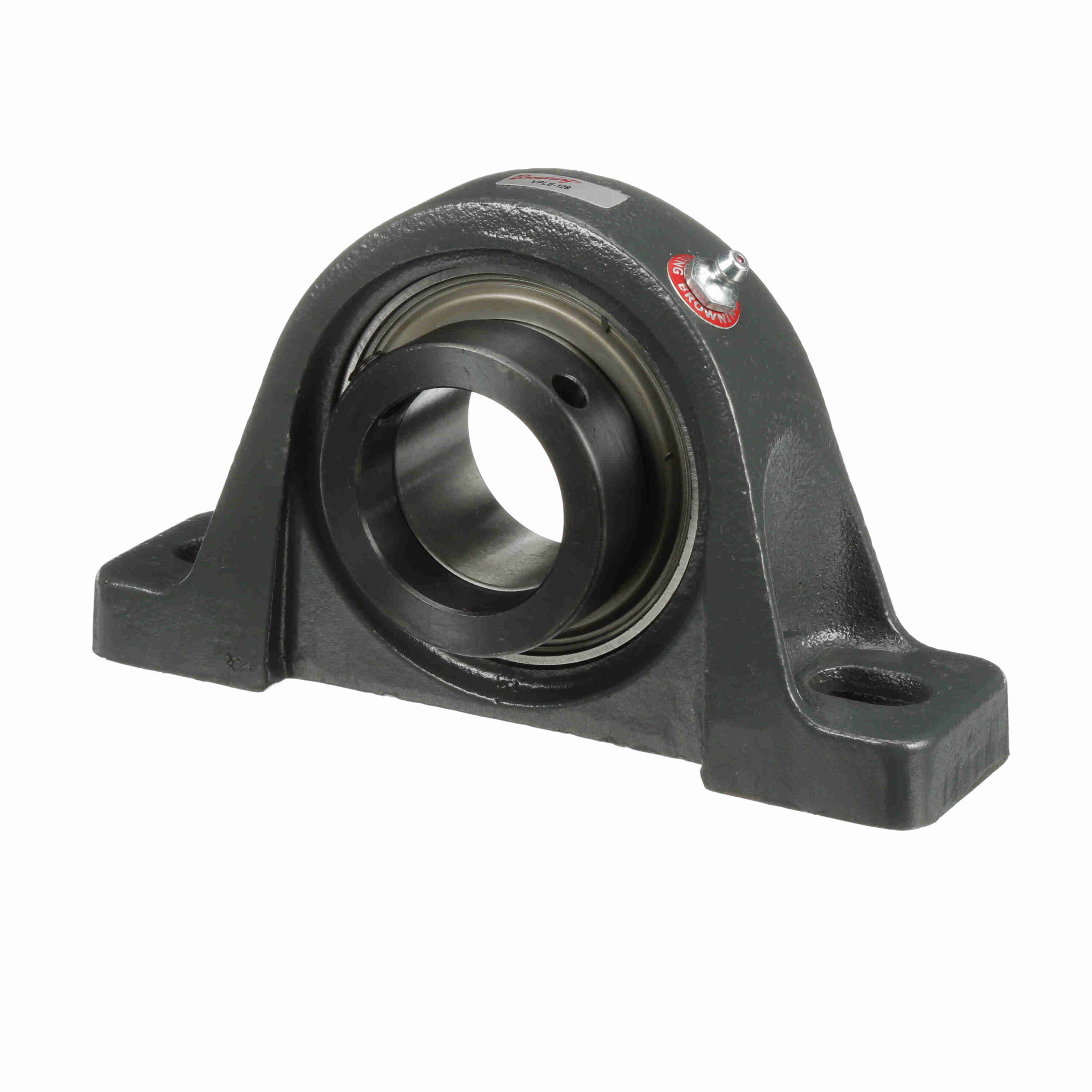

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPLE-112
$136.39
Out of stock
Out of stock
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel |
|---|---|---|---|
| Housing Material: | Cast Iron | Rolling Element: | Ball Bearing |
| Seal Type: | Single Lip Contact Seal | Retainer Type: | Ball Riding Retainer |
| Insert No.: | VE-112 | Maximum Operating Temperature: | 200 °F |
| Housing Base: | Semi-Solid | Internal Clearance: | Standard |
| Speed (Max): | 4000 | Duty Series: | Intermediate Duty |
| Expansion: | No | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 611 |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Eccentric |
| Relubricatable: | Yes | Misalignment Type: | Static Only |
| End Cap: | No | Housing Color: | Gray |
| Bearing Insert Coating: | Uncoated | Replaceable Insert: | Yes |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 1, 444 | UPC: | 662289523986 |
| Weight: | 1.85 LB | Packaged Length: | 5.6 Inches |
| Packaged Width: | 3.3 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
