- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
TB-204

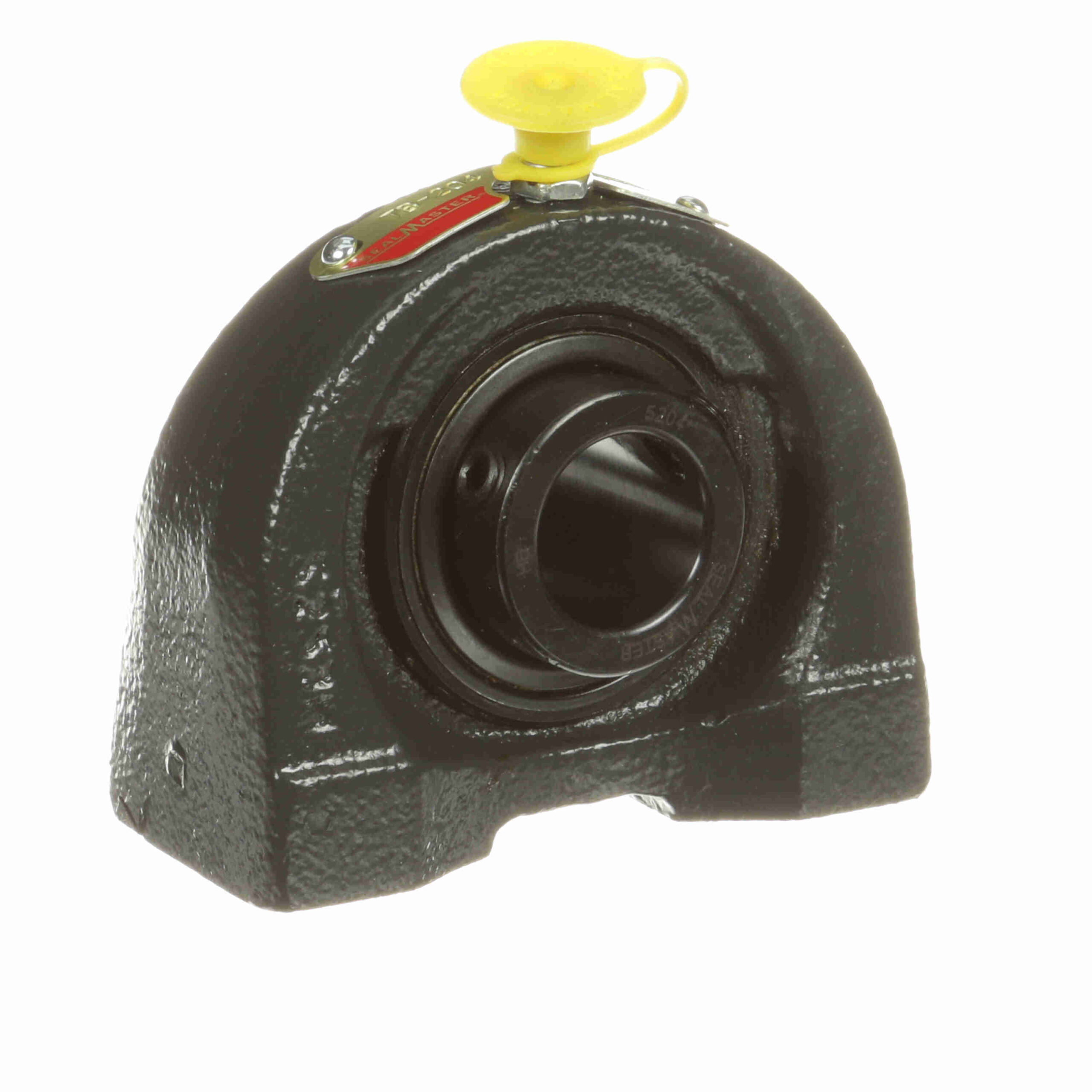

Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – TB-204
$205.30
Out of stock
Out of stock
| Maximum Operating Temperature: | 220 °F | Speed (Max): | 7300 |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard Duty |
| Insert No.: | 5204 | Expansion: | No |
| Housing Base: | Solid | Rolling Element: | Ball Bearing |
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Housing Type: | Pillow Block, Tapped Base |
| Measure Units: | Metric | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Set Screw Thread: | 1/4-28 UNF X .25 |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Relubricatable: | Yes | Bore Shape: | Straight |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Housing Color: | Gray | Grease Fitting Thread Size: | 1/4-28 |
| UPC: | 662461053119 | Weight: | 1.60 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
