- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPE-235 AH

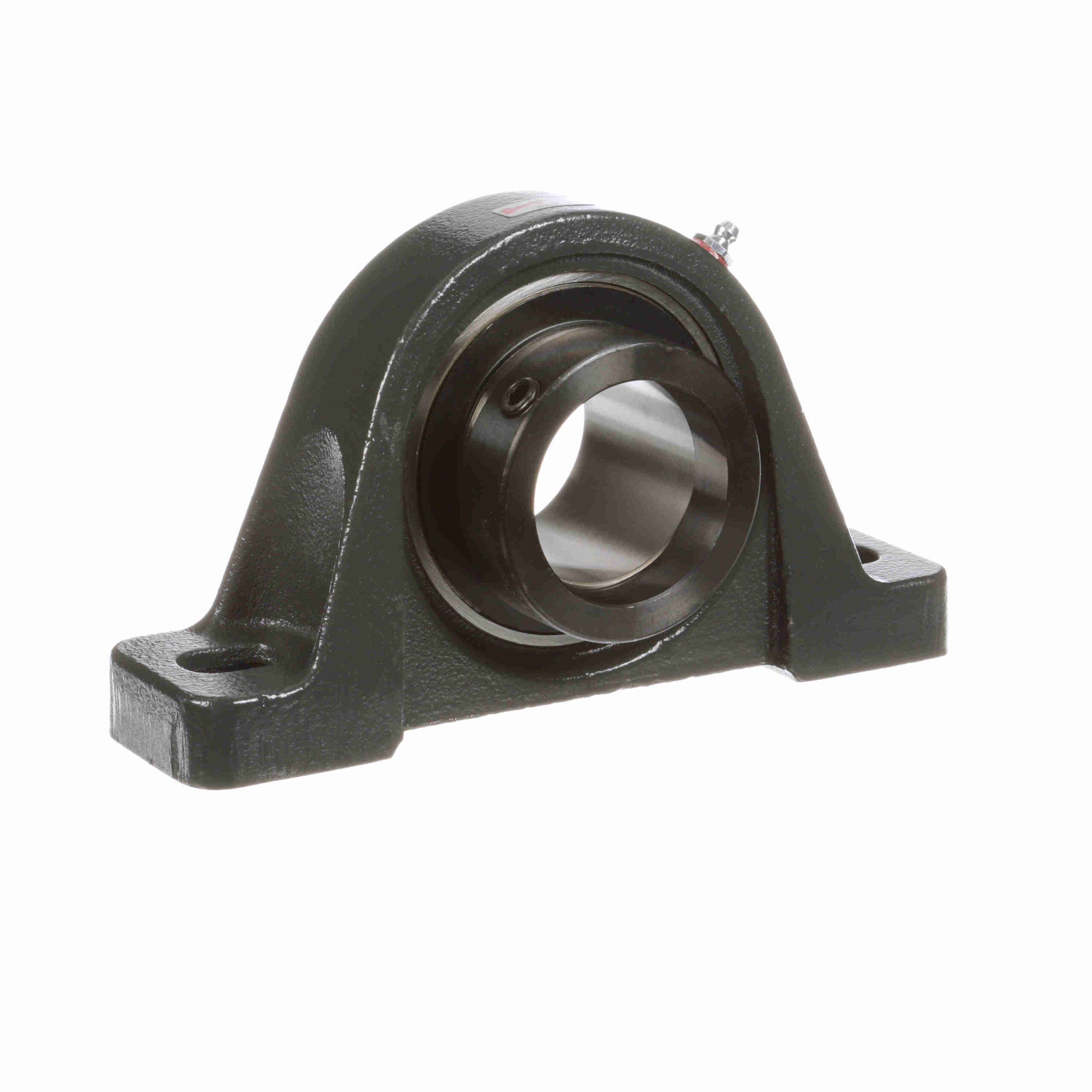

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – Air Handling Housing Fit, Noise Tested – VPE-235 AH
Out of stock
| Measure Units: | Inch | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Housing Base: | Semi-Solid |
| Internal Clearance: | Standard | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Bore Shape: | Straight | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| End Cap: | No | Options: | Air Handling Housing Fit, Noise Tested |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Housing Color: | Gray |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Platform: | Air Handling | Outer Ring Land Profile: | Standard |
| Housing Style: | Pillow Block | Maximum Speed (RPM): | 2500 rpm |
| Duty/Series: | Standard Duty | Locking Type: | Eccentric |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Type: | Pillow Block, Two Bolt | Retainer Type: | Ball Riding Retainer |
| Fixed vs. Expansion: | Fixed | Maximum Operating Temperature (F): | 200 °F |
| Ability to Relubricate: | Yes | Insert Number: | VE-235 |
| UPC: | 662460000000 | Weight: | 8.67 LB |
| Packaged Length: | 5.6 Inches | Packaged Width: | 10.3 Inches |
| Packaged Height: | 3.2 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
