- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPE-132

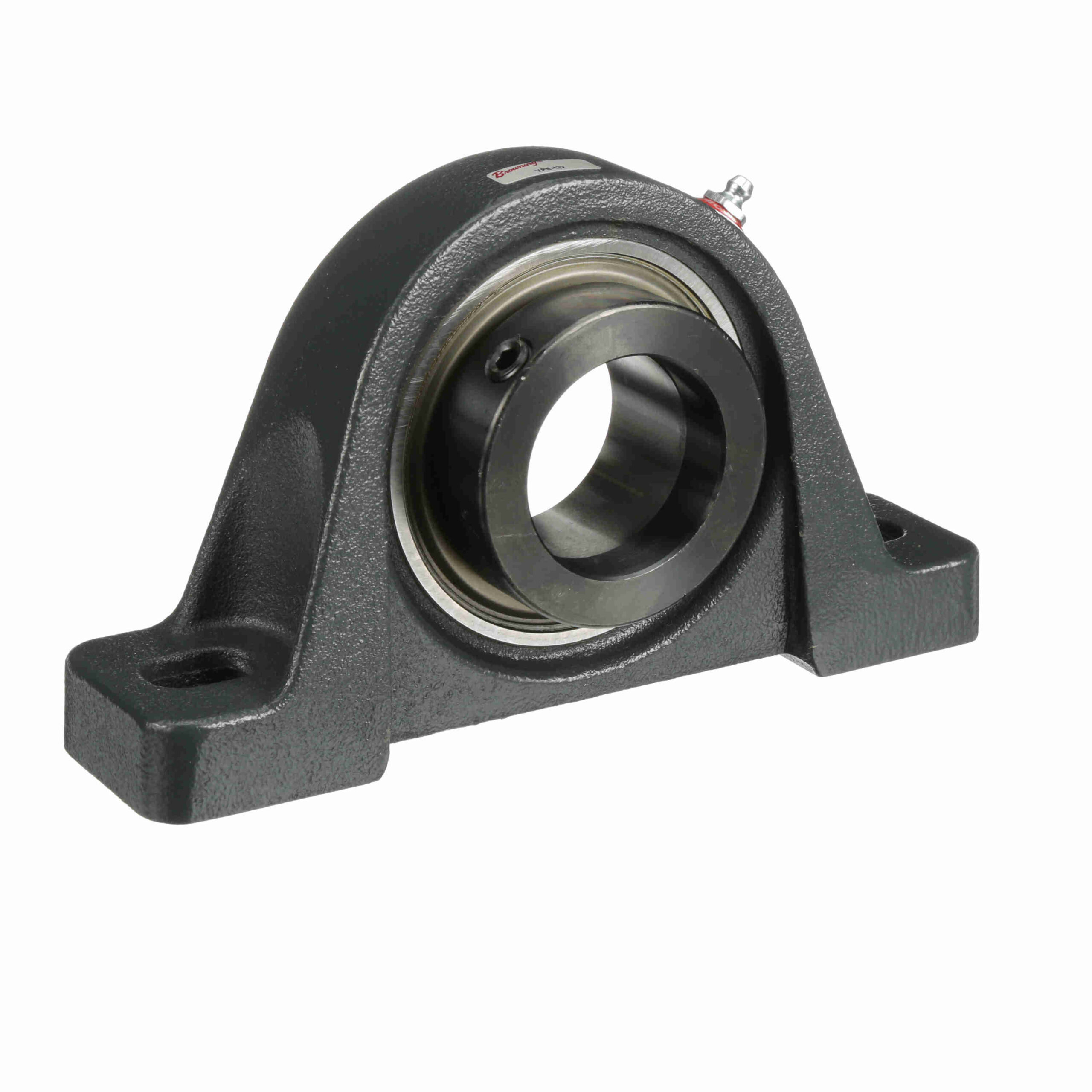

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPE-132
$173.50
Out of stock
Out of stock
| Maximum Operating Temperature: | 200 °F | Measure Units: | Inch |
|---|---|---|---|
| Duty Series: | Intermediate Duty | Rolling Element: | Ball Bearing |
| Seal Type: | Single Lip Contact Seal | Speed (Max): | 1750 |
| Insert Material: | 52100 Bearing Steel | Expansion: | No |
| Housing Material: | Cast Iron | Insert No.: | VE-132 |
| Housing Type: | Pillow Block; Two Bolt | Internal Clearance: | Standard |
| Housing Base: | Semi-Solid | Retainer Type: | Ball Riding Retainer |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Locking Type: | Eccentric | Misalignment: | ±1.5° Misalignment - Static Only |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Lubrication: | Lithium Complex NLGI 2 Grease | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Uncoated | Misalignment Type: | Static Only |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Radial Static Load Capacity (lb): | 6, 601 | UPC: | 662289314997 |
| Weight: | 8.55 LB | Packaged Length: | 10.3 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 3 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
