- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames

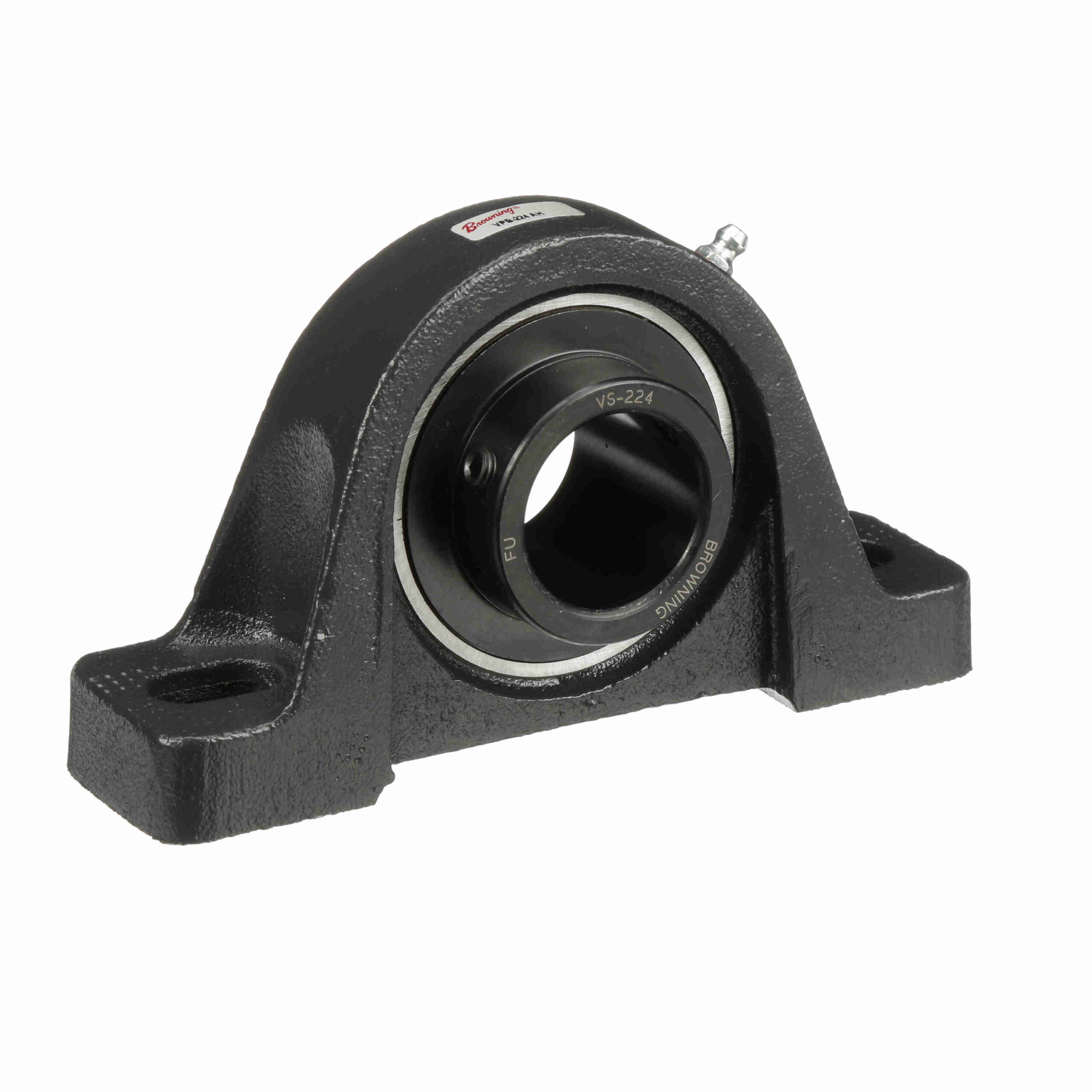

VPB-224 AH
Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – Air Handling Housing Fit, Noise Tested – VPB-224 AH
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
| Housing Base: | Semi-Solid | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Bore Shape: | Straight | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Platform: | Air Handling | Housing Color: | Gray |
| Replaceable Insert: | Yes | End Cap: | No |
| Options: | Air Handling Housing Fit, Noise Tested | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Maximum Speed (RPM): | 3500 rpm |
| Locking Type: | Concentric | Retainer Type: | Ball Riding Retainer |
| Housing Style: | Pillow Block | Housing Material: | Cast Iron |
| Housing Type: | Pillow Block, Two Bolt | Insert Number: | VB-224 |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662461000000 | Weight: | 4.64 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
