- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VFCS-320

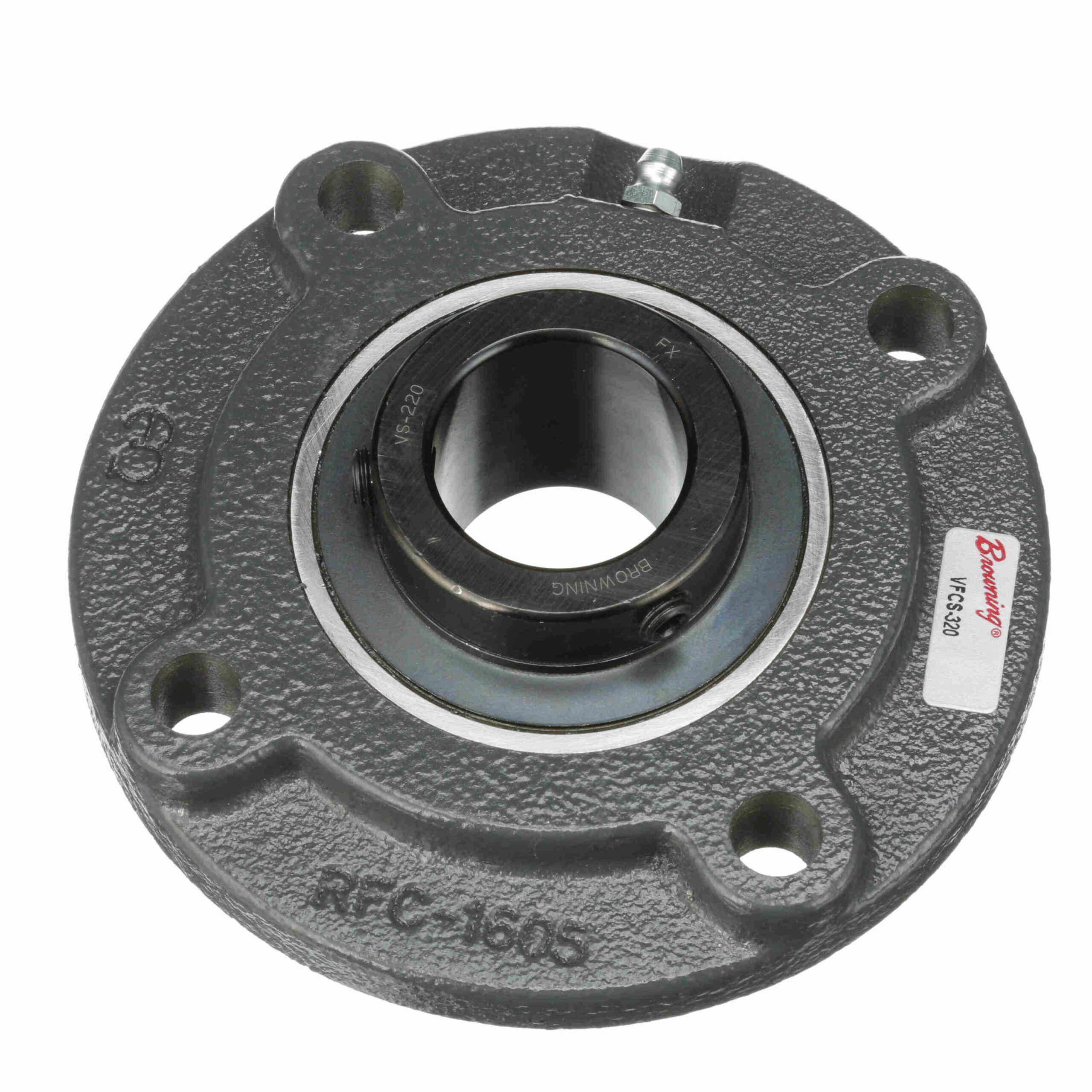

Browning Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VFCS-320
$127.50
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal with Flinger | Maximum Operating Temperature: | 200 °F |
|---|---|---|---|
| Bore Shape: | Straight | Housing Base: | Semi-Solid |
| Measure Units: | Inch | Duty Series: | Medium Duty |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Insert No.: | VS-220 SFB |
| Housing Type: | Flange; Piloted | Expansion: | No |
| Retainer Type: | Ball Riding Retainer | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Speed (Max): | 4000 | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Setscrew | Internal Clearance: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Radial Static Load Capacity (lb): | 3, 493 |
| UPC: | 662289540396 | Weight: | 3.13 LB |
| Packaged Length: | 5.2 Inches | Packaged Width: | 5.3 Inches |
| Packaged Height: | 2 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
