- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SFT-208

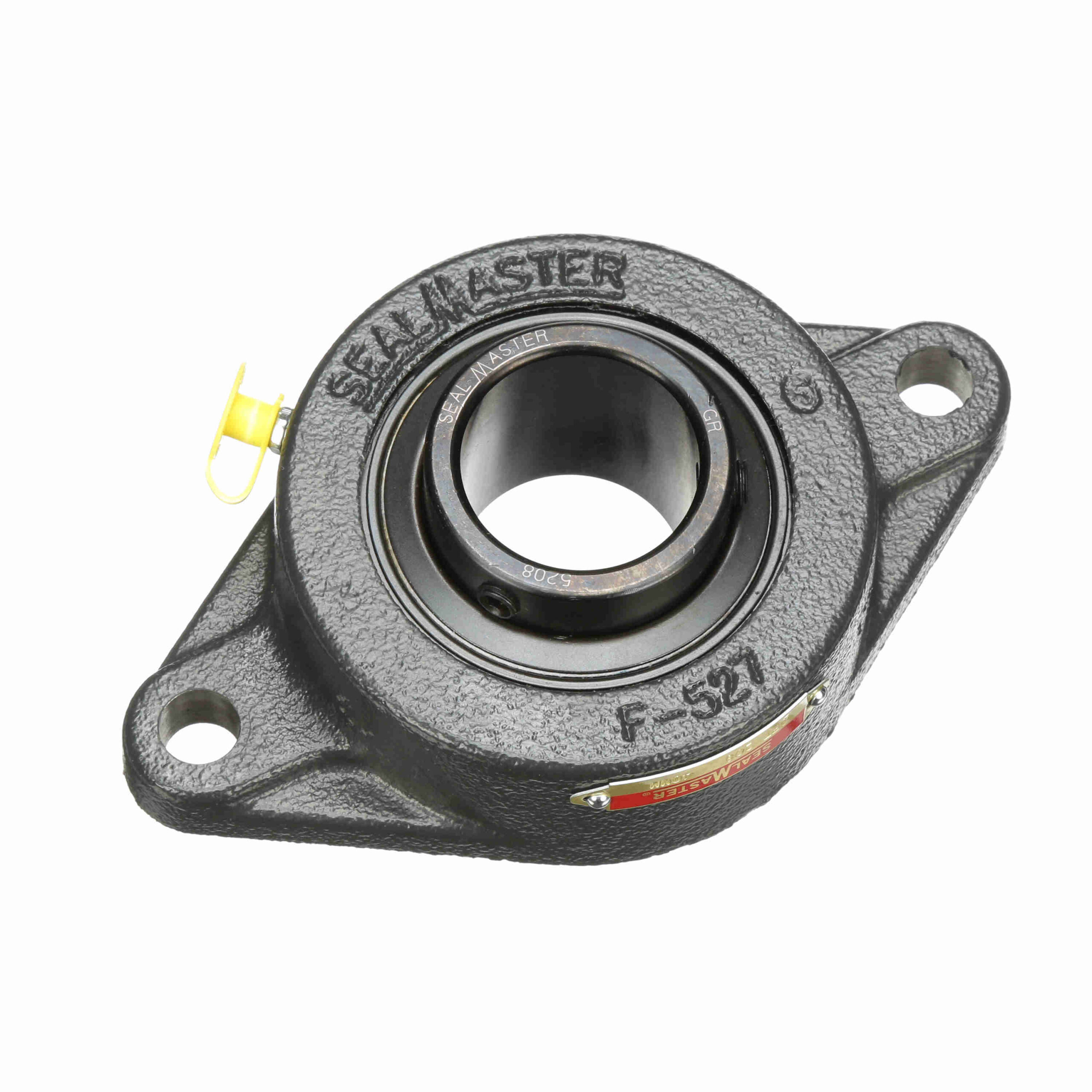

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SFT-208
$203.85
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard Duty |
| Insert No.: | 5208 | Housing Material: | Cast Iron |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Expansion: | No |
| Seal Type: | Felt Labyrinth Seal | Measure Units: | Metric |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Housing Type: | Flange; Two Bolt | Misalignment: | ±2.0° Misalignment - Static Only |
| Speed (Max): | 4150 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Internal Clearance: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | UPC: | 662461052501 |
| Weight: | 4.15 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
