- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VFBS-219

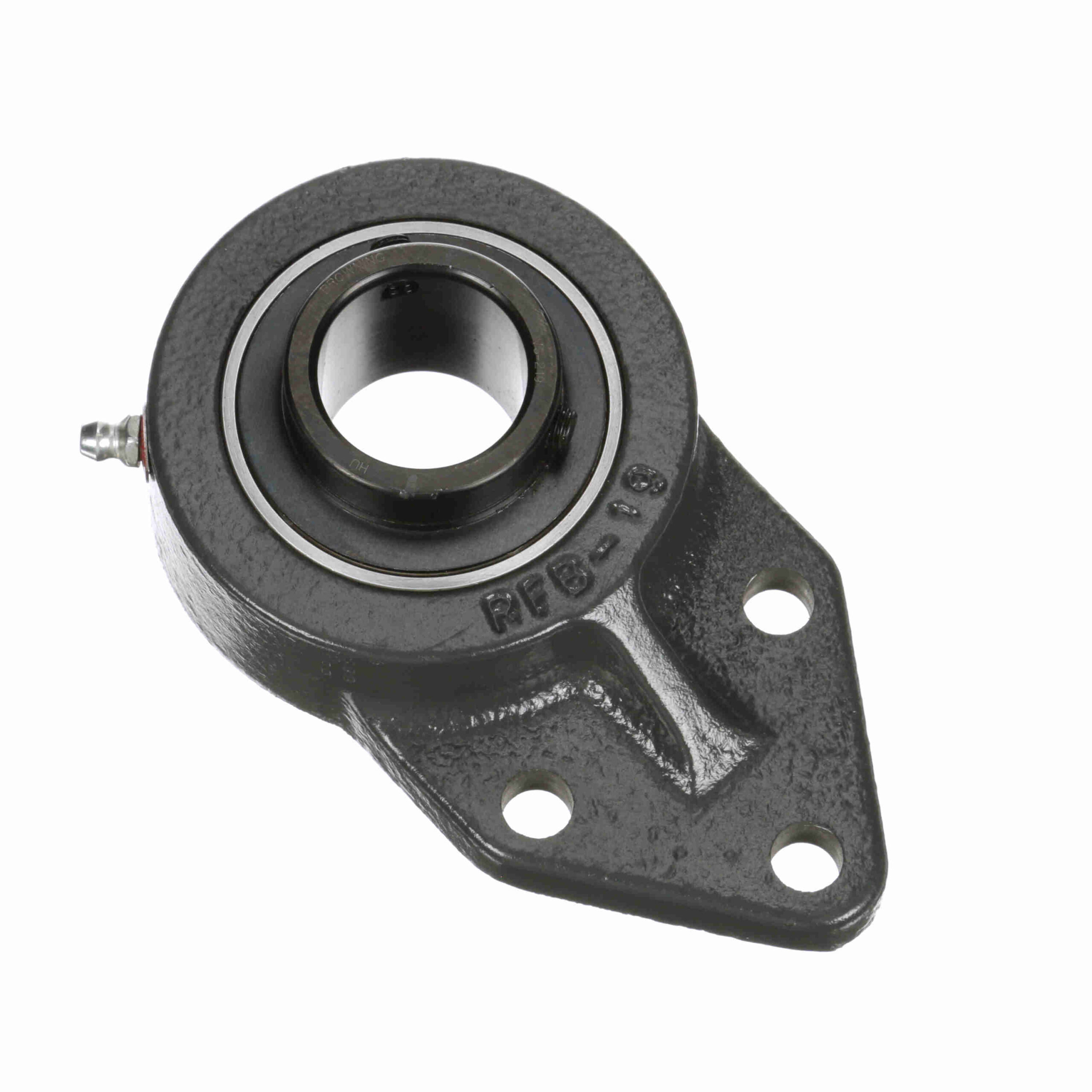

Browning Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VFBS-219
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Housing Base: | Solid |
|---|---|---|---|
| Bore Shape: | Straight | Seal Type: | Single Lip Contact Seal with Flinger |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Pilot Configuration: | No Pilot | Misalignment: | ±1.5° Misalignment - Static Only |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 4, 381 lb |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| End Cap: | No | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 2, 567 lb | Housing Material: | Cast Iron |
| Retainer Type: | Ball Riding Retainer | Maximum Speed (RPM): | 4500 rpm |
| Fixed vs. Expansion: | Fixed | Housing Type: | Flange, Bracket, Three Bolt |
| Locking Type: | Setscrew | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Duty/Series: | Standard Duty | Housing Style: | Flange Block |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 200 °F |
| Insert Number: | VS-219 | UPC: | 662460495835 |
| Weight: | 1.60 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
