- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VF2S-220S

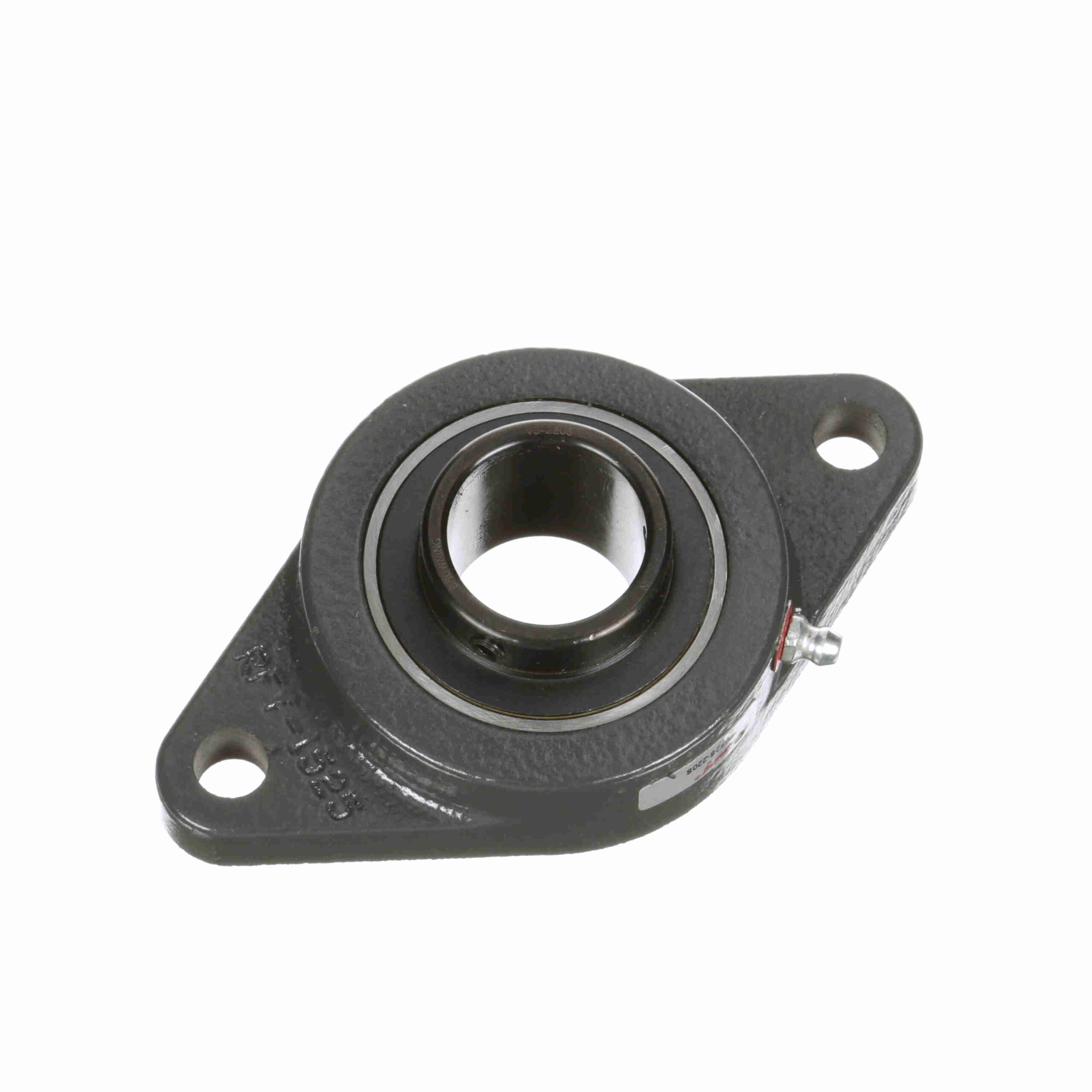

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VF2S-220S
$80.90
Availability: 5 in stock
Availability: 5 in stock
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
|---|---|---|---|
| Insert No.: | VS-220S | Maximum Operating Temperature: | 200 °F |
| Measure Units: | Inch | Expansion: | No |
| Housing Base: | Semi-Solid | Retainer Type: | Ball Riding Retainer |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Duty Series: | Standard Duty |
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal with Flinger |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Bore Shape: | Straight | Speed (Max): | 4500 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Type: | Flange; Two Bolt | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Housing Color: | Gray |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289521388 |
| Weight: | 1.84 LB | Packaged Length: | 3.7 Inches |
| Packaged Width: | 6.1 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
