- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VF2S-218

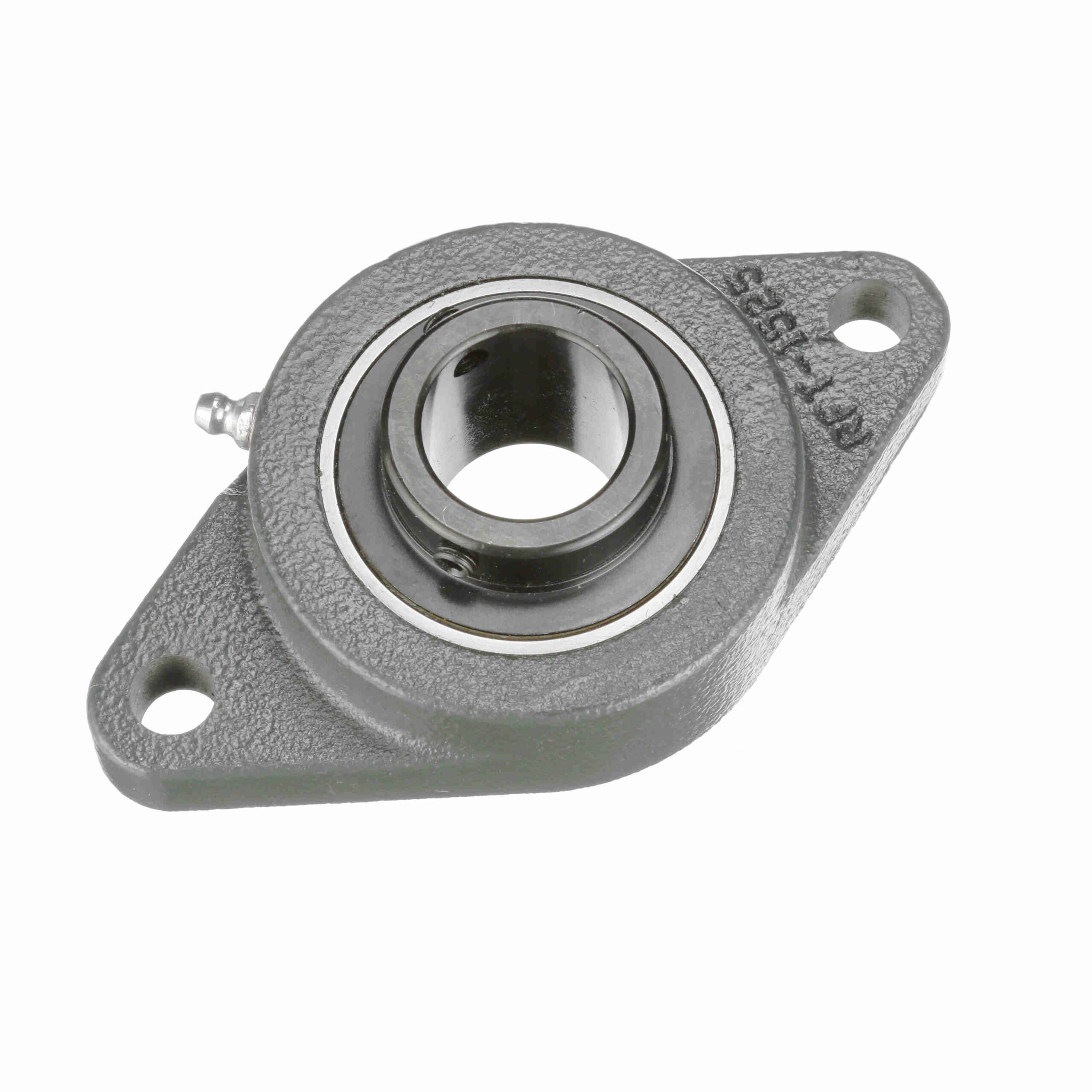

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VF2S-218
$100.61
Availability: 30 in stock
Availability: 30 in stock
| Duty Series: | Standard Duty | Housing Base: | Semi-Solid |
|---|---|---|---|
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Seal Type: | Single Lip Contact Seal with Flinger | Expansion: | No |
| Measure Units: | Inch | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Insert No.: | VS-218 | Maximum Operating Temperature: | 200 °F |
| Retainer Type: | Ball Riding Retainer | Rolling Element: | Ball Bearing |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Locking Type: | Setscrew |
| Misalignment: | ±1.5° Misalignment - Static Only | Speed (Max): | 4500 |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Type: | Flange; Two Bolt | Housing Color: | Gray |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289521340 |
| Weight: | 1.97 LB | Packaged Length: | 6.1 Inches |
| Packaged Width: | 3.5 Inches | Packaged Height: | 1.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
