- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VF2S-120S

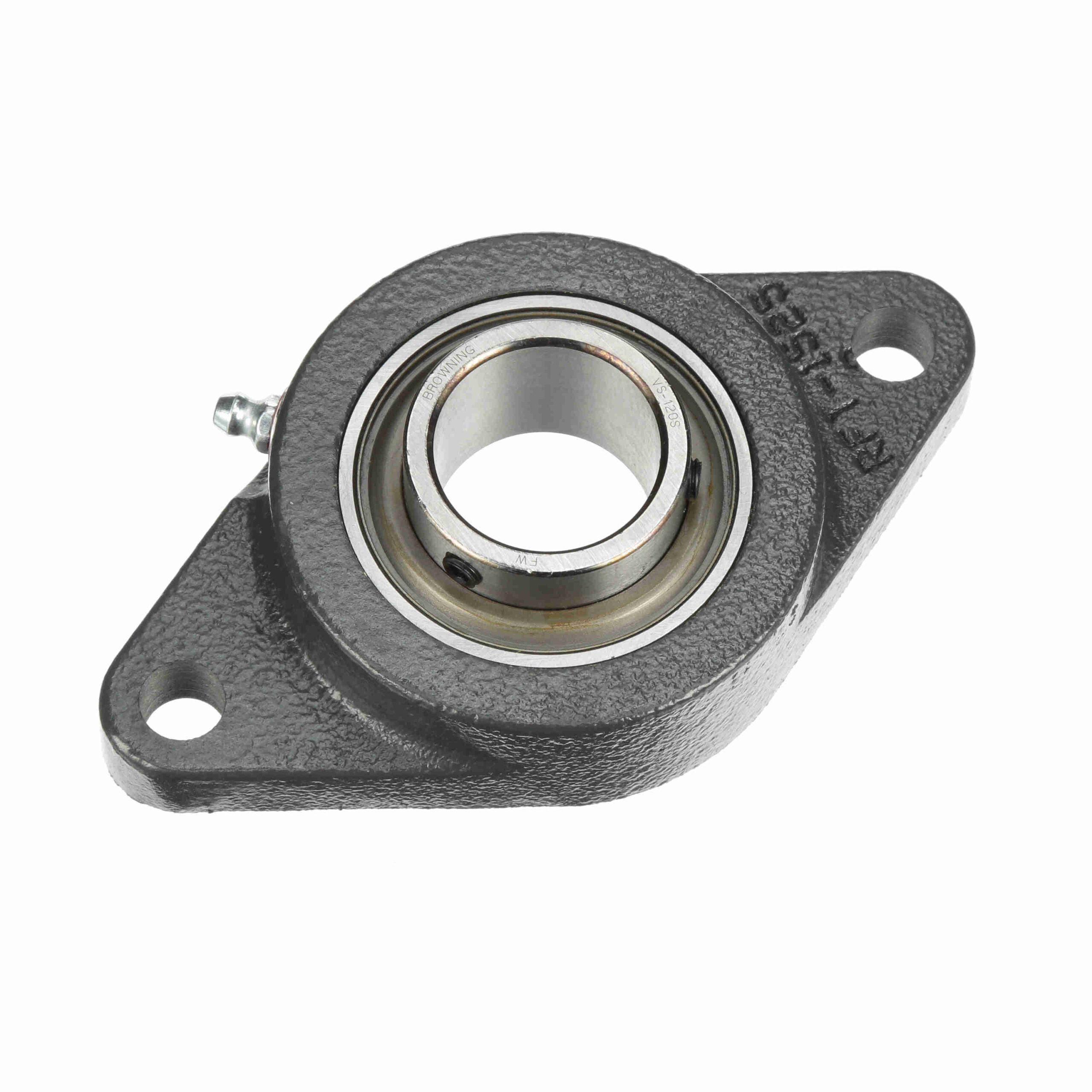

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF2S-120S
$68.18
Availability: 34 in stock
Availability: 34 in stock
| Retainer Type: | Ball Riding Retainer | Housing Material: | Cast Iron |
|---|---|---|---|
| Insert No.: | VS-120S | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Maximum Operating Temperature: | 200 °F | Duty Series: | Intermediate Duty |
| Seal Type: | Single Lip Contact Seal | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel | Housing Base: | Semi-Solid |
| Rolling Element: | Ball Bearing | Expansion: | No |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Misalignment: | ±1.5° Misalignment - Static Only | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Type: | Flange; Two Bolt | Locking Type: | Setscrew |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Speed (Max): | 3000 |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Bore Shape: | Straight | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | End Cap: | No |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289521203 |
| Weight: | 1.78 LB | Packaged Length: | 6.1 Inches |
| Packaged Width: | 3.6 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
