- Powder coat epoxy malleable iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VF2S-112M

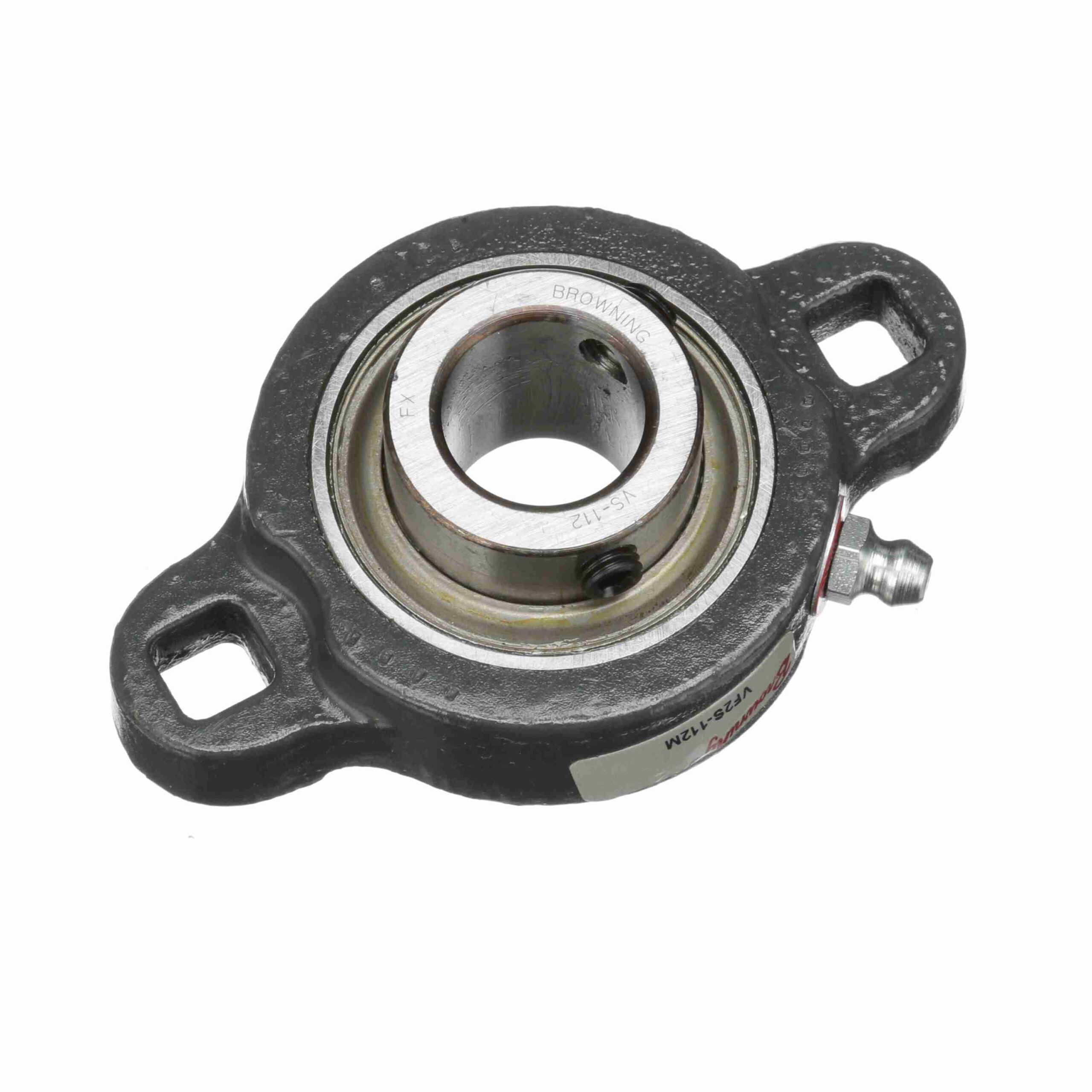

Browning Mounted Ductile Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF2S-112M
$54.11
Availability: 8 in stock
Availability: 8 in stock
| Rolling Element: | Ball Bearing | Housing Base: | Semi-Solid |
|---|---|---|---|
| Insert No.: | VS-112 | Duty Series: | Intermediate Duty |
| Retainer Type: | Ball Riding Retainer | Housing Material: | Ductile Iron |
| Expansion: | No | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Seal Type: | Single Lip Contact Seal | Measure Units: | Inch |
| Maximum Operating Temperature: | 200 °F | Insert Material: | 52100 Bearing Steel |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Housing Type: | Flange; Two Bolt | Speed (Max): | 4000 |
| Radial Dynamic Load Capacity (lb): | 2, 611 | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Internal Clearance: | Standard | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 1, 444 | UPC: | 662289542994 |
| Weight: | 0.68 LB | Packaged Length: | 3.3 Inches |
| Packaged Width: | 3.1 Inches | Packaged Height: | 1.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
