- Stud type cam follower
- V-grooved outside diameter
- Ball bearing insert
- Hex hole on thread face
VCF 2 1/2

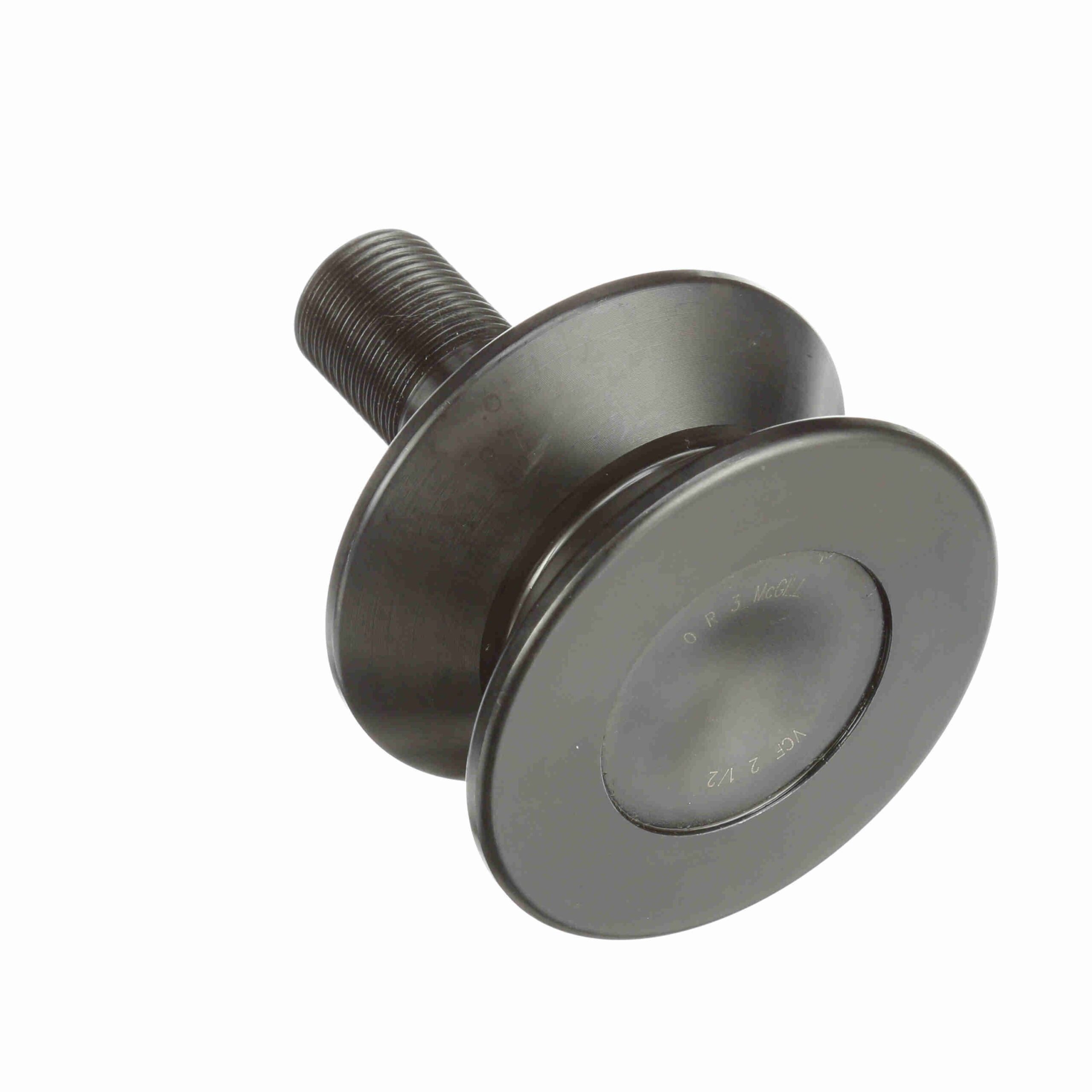

McGill TRAKROL® V Groove Track Roller – Stud Mount – Hex Hole – Sealed – VCF 2 1/2
$114.08
Availability: 17 in stock
Availability: 17 in stock
| Rolling Element: | Ball (TRAKROL) | Sealing: | Sealed |
|---|---|---|---|
| Limiting Speed: | 3 | Dynamic Radial Rating: | 3 |
| Adjustment: | None | Series: | TRAKROL® |
| Hex/Slot: | Hex Hole | O.D. Configuration: | V Groove |
| Material: | Bearing Steel, Black Oxide Finish | Stud Type: | Standard Stud |
| Roller Shape: | V Groove | Dynamic Load Rating - both bearings: | 3 |
| Dynamic Load Rating (lb): | 2, 520 lb | Static Load Rating: | 1 |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - single bearing: | 2 |
| Platform: | TRAKROL® | Ability to Relubricate: | No |
| Clamping Torque (in-lbf): | 625 lbs | UPC: | 726166111373 |
| Weight: | 1.25 LB | Packaged Length: | 2.81 Inches |
| Packaged Width: | 2.81 Inches | Packaged Height: | 3.93 Inches |
| HTC: | 8482.10.5064 | Country of Origin: | Mexico |
