- Metric stud type cam follower
- Crowned outside diameter
- Retained (caged) needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included

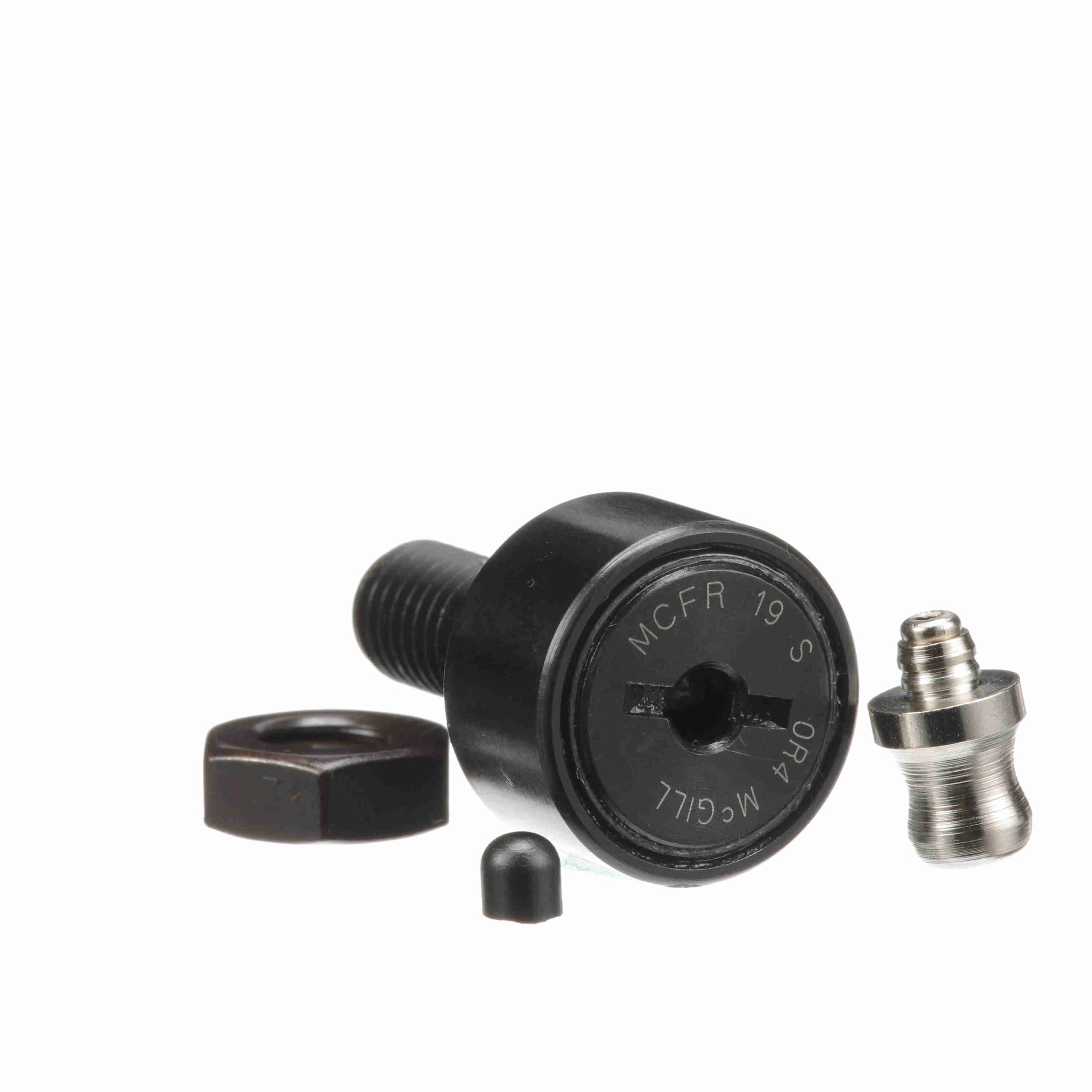

MCFR 19 S
McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCFR 19 S
$66.24
Availability: 12 in stock
Availability: 12 in stock
| Dynamic Track Roller Load Rating (N): | 3, 730 N | Dynamic Radial Rating: | 839 |
|---|---|---|---|
| Adjustment: | None | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Caged | O.D. Configuration: | Crowned |
| Limiting Speed: | 16 | Hex/Slot: | Screwdriver Slot |
| Series: | Metric CAMROL® | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Stud Type: | Standard Stud | Industry Standard: | DIN / JIS |
| Roller Shape: | Crowned | Static Load Rating: | 4 |
| Dynamic Load Rating (lb): | 1, 550 lb | Static Track Roller Load Rating: | 4 |
| Lubrication Hole Location: | Stud side | Clamping Torque (Nm): | 8 N·m |
| Ability to Relubricate: | Yes | Dynamic Load Rating (N): | 4, 510 N |
| UPC: | 726166015510 | Weight: | 0.10 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
