- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock
USI5000-207

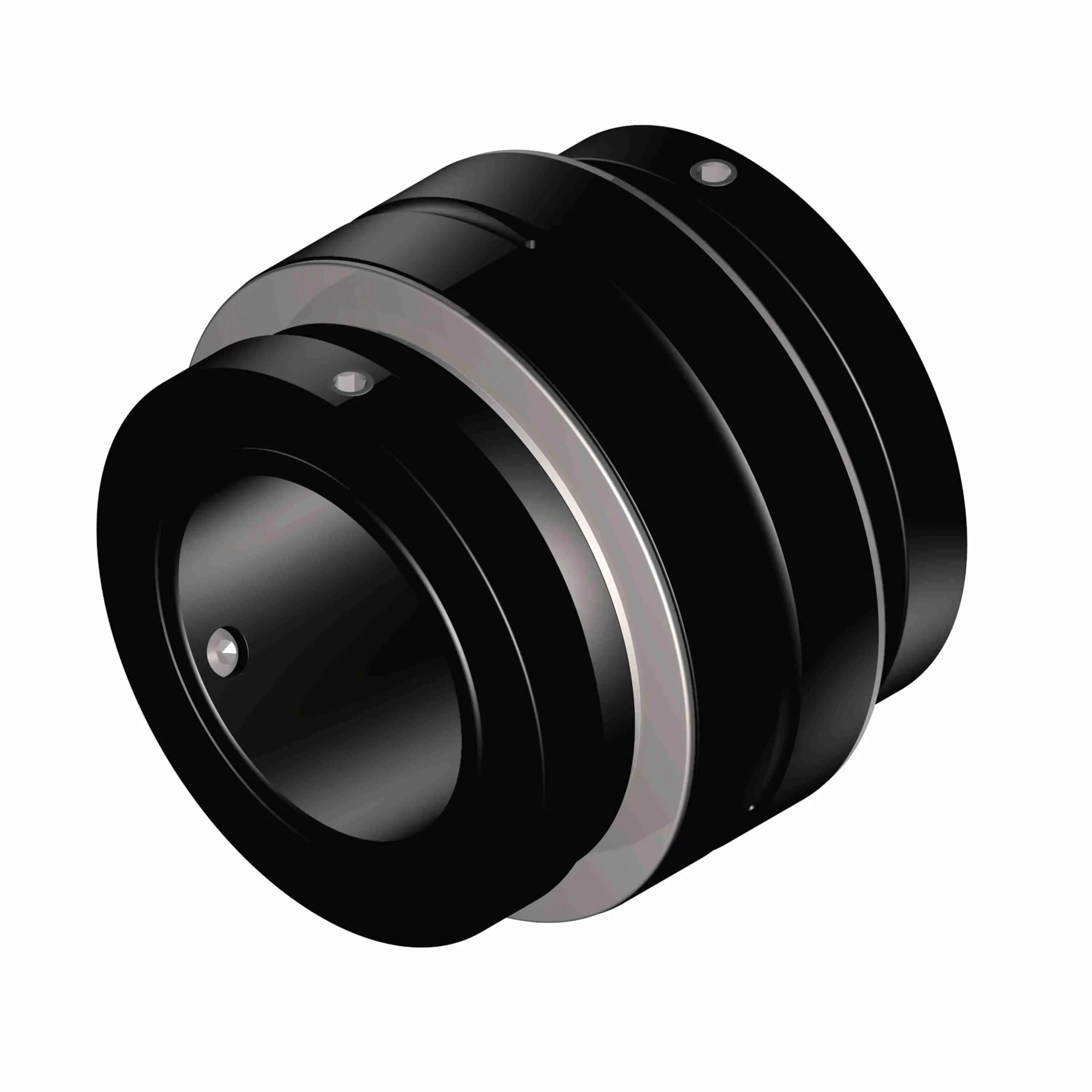

Sealmaster Mounted Insert Only Spherical Roller – 52100 Bearing Steel, Black Oxided – Collar Mount Lock – USI5000-207
$983.55
Out of stock
Out of stock
| Speed (Max) (RPM): | 3250 rpm | Bore Shape: | Straight |
|---|---|---|---|
| Housing Type: | Insert Only | Rolling Element: | Spherical Roller |
| Measure Units: | Inch | Misalignment: | ±2.0° Misalignment - Dynamic |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 44, 691 lb |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Dynamic |
| Platform: | USRB | End Cap: | No |
| Retainer Material: | Steel | Series: | USI5000 |
| Radial Static Load Capacity (lb): | 59, 535 lb | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | Maximum Operating Temperature (F): | 220 °F |
| Type of Seal: | Felt Labyrinth Seal | Locking Type: | Collar Mount |
| Insert Number: | USI5000-207 | Fixed vs. Expansion: | No |
| Duty/Series: | Standard | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Ability to Relubricate: | Yes | UPC: | 662461367681 |
| Weight: | 7.33 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 5.38 Inches | Packaged Height: | 3.5 Inches |
| HTC: | 8482.30.0080 | Country of Origin: | Mexico |
