- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock
USI5000-115

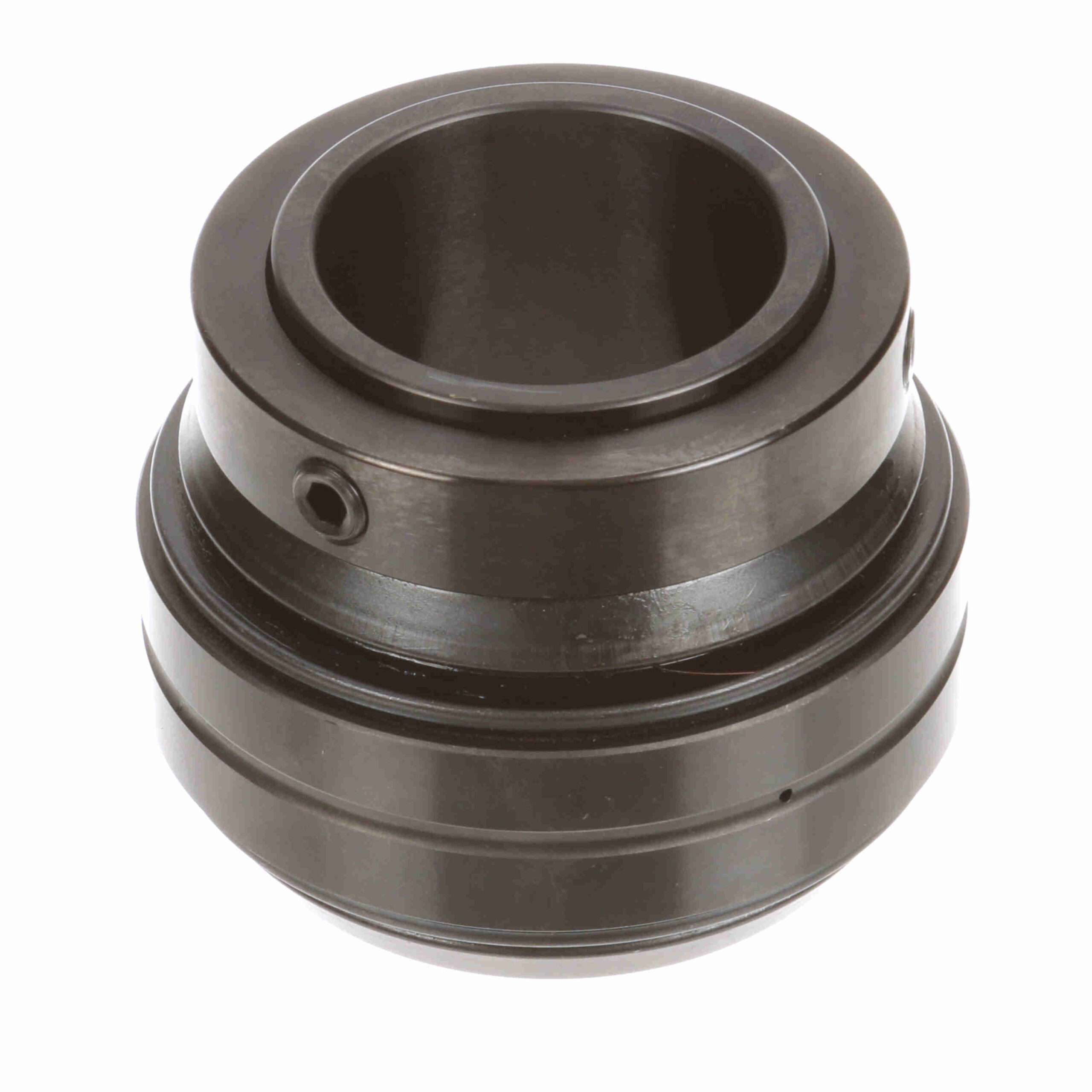

Sealmaster Mounted Insert Only Spherical Roller – 52100 Bearing Steel, Black Oxided – Collar Mount Lock – USI5000-115
$770.80
Out of stock
Out of stock
| Speed (Max) (RPM): | 4000 rpm | Bore Shape: | Straight |
|---|---|---|---|
| Measure Units: | Inch | Housing Type: | Insert Only |
| Rolling Element: | Spherical Roller | Misalignment: | ±2.0° Misalignment - Dynamic |
| Radial Dynamic Load Capacity (lb): | 23, 520 lb | Internal Clearance: | Standard |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Platform: | USRB |
| Misalignment Type: | Dynamic | Retainer Material: | Steel |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Series: | USI5000 |
| Radial Static Load Capacity (lb): | 28, 021 lb | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Insert Number: | USI5000-115 | Fixed vs. Expansion: | No |
| Ability to Relubricate: | Yes | Locking Type: | Collar Mount |
| Maximum Operating Temperature (F): | 220 °F | Type of Seal: | Felt Labyrinth Seal |
| Duty/Series: | Standard | UPC: | 662461367629 |
| Weight: | 3.17 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 5.38 Inches | Packaged Height: | 3.5 Inches |
| HTC: | 8482.30.0080 | Country of Origin: | Mexico |
