- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
USFB5000-212

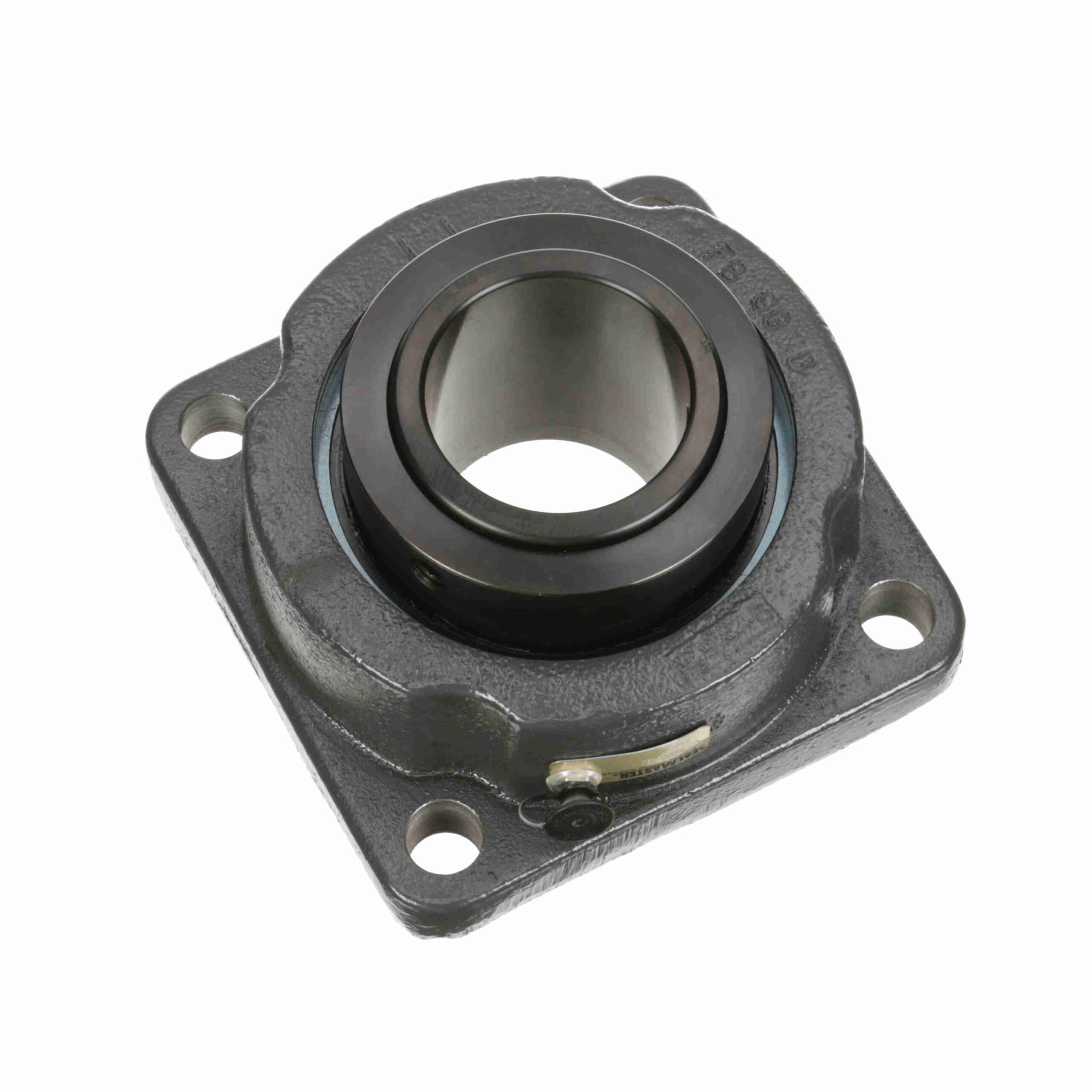

Sealmaster Mounted Cast Iron Four Bolt Flange Spherical Roller – 52100 Bearing Steel, Black Oxided – Collar Mount Lock – USFB5000-212
$2,146.98
Out of stock
Out of stock
| Expansion: | Non-Expansion Bearing (Fixed) | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Housing Material: | Cast Iron | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Type: | Flange, Four Bolt |
| Rolling Element: | Spherical Roller | Speed (Max): | 3000 |
| Measure Units: | Inch | Pilot Configuration: | No Pilot |
| Insert No.: | USI5000-212 | Relubricatable: | Yes |
| Maximum Operating Temperature: | 220 °F | Housing Construction: | Solid |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Duty Series: | Standard | Locking Type: | Single Set Collar |
| Misalignment: | ±2.0° Misalignment - Dynamic | Radial Dynamic Load Capacity (lb): | 47, 447 |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Dynamic | Platform: | USRB |
| Retainer Material: | Steel | Bearing Insert Coating: | Black Oxide Coated |
| Replaceable Insert: | No | Housing Color: | Gray |
| Series: | USFB5000 | Lubrication Method: | Lubrication Fitting |
| Radial Static Load Capacity (lb): | 65, 610 | Grease Fitting Thread Size: | 1/8 NPT |
| UPC: | 662461361290 | Weight: | 22.81 LB |
| Packaged Length: | 7.88 Inches | Packaged Width: | 7.75 Inches |
| Packaged Height: | 4.69 Inches | HTC: | 8483.20.4080 |
| Country of Origin: | Mexico |
