- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
USFB5000-208

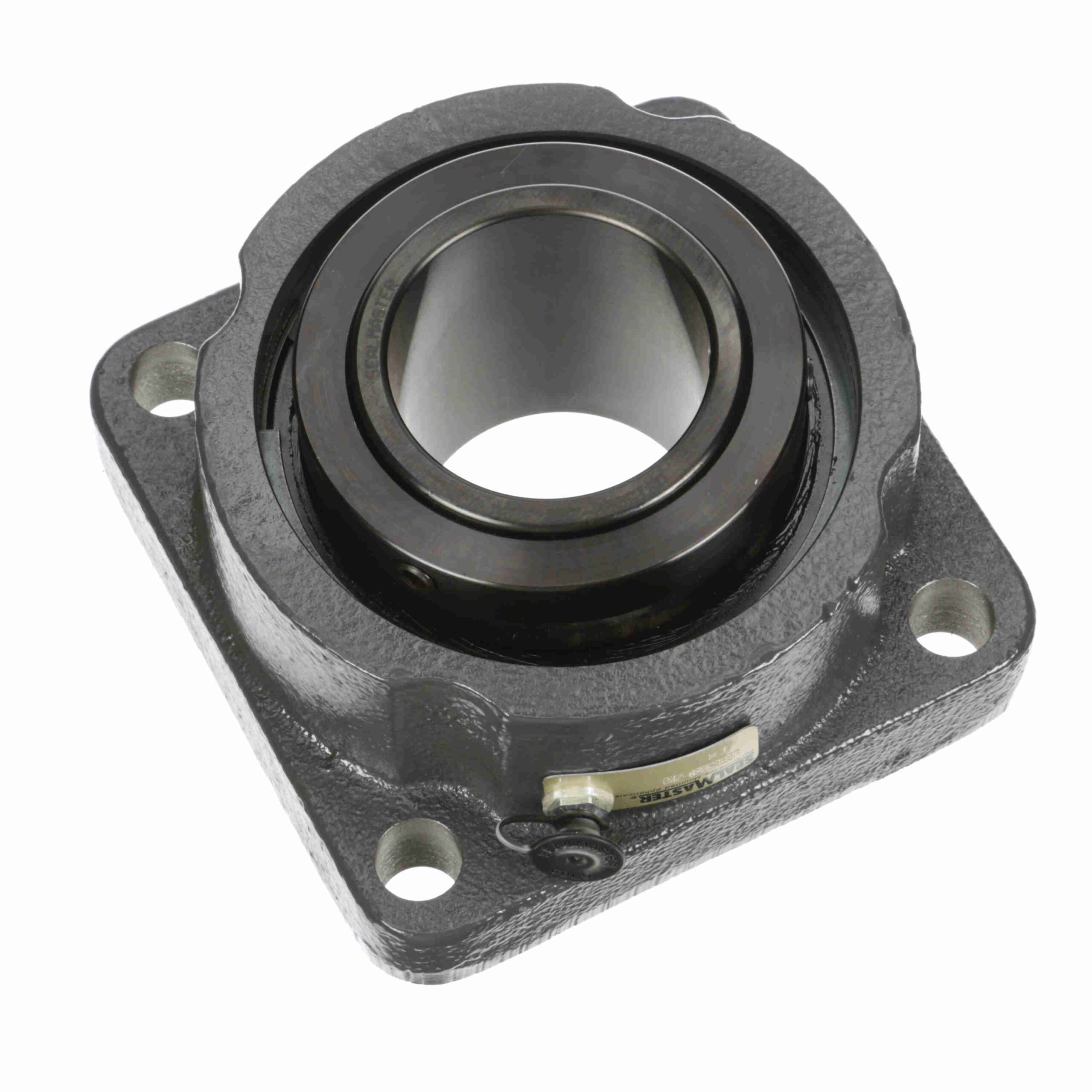

Sealmaster Mounted Cast Iron Four Bolt Flange Spherical Roller – 52100 Bearing Steel, Black Oxided – Collar Mount Lock – USFB5000-208
$839.41
Out of stock
Out of stock
| Bore Shape: | Straight | Rolling Element: | Spherical Roller |
|---|---|---|---|
| Measure Units: | Inch | Seal Type: | Felt Labyrinth Seal |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Speed [Max] (RPM): | 3250 rpm |
| Pilot Configuration: | No Pilot | Misalignment: | ±2.0° Misalignment - Dynamic |
| Housing Construction: | Solid | Outer Ring Land Profile: | Standard |
| End Cap: | No | Misalignment Type: | Dynamic |
| Housing Color: | Gray | Platform: | USRB |
| Replaceable Insert: | No | Bearing Insert Coating: | Black Oxide Coated |
| Series: | USFB5000 | Lubrication Method: | Lubrication Fitting |
| Housing Material: | Cast Iron | Locking Type: | Single Set Collar |
| Fixed vs. Expansion: | Fixed | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Grease Fitting Thread Size: | 1/8 NPT | Retainer: | Steel |
| Radial Static Load Capacity (lb): | 59, 535 lb | Housing Style: | Flange Block |
| Radial Dynamic Load Capacity (lb): | 44, 691 lb | Housing Type: | Flange, Four Bolt |
| Clearance: | Standard | Insert Number: | USI5000-208 |
| Bolt Hole Shape: | Round Hole | Ability to Relubricate: | Yes |
| UPC: | 662461361252 | Weight: | 15.06 LB |
| Packaged Length: | 6.38 Inches | Packaged Width: | 6.31 Inches |
| Packaged Height: | 3.88 Inches | HTC: | 8483.20.4080 |
| Country of Origin: | Mexico |
