- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
UM-1316-B

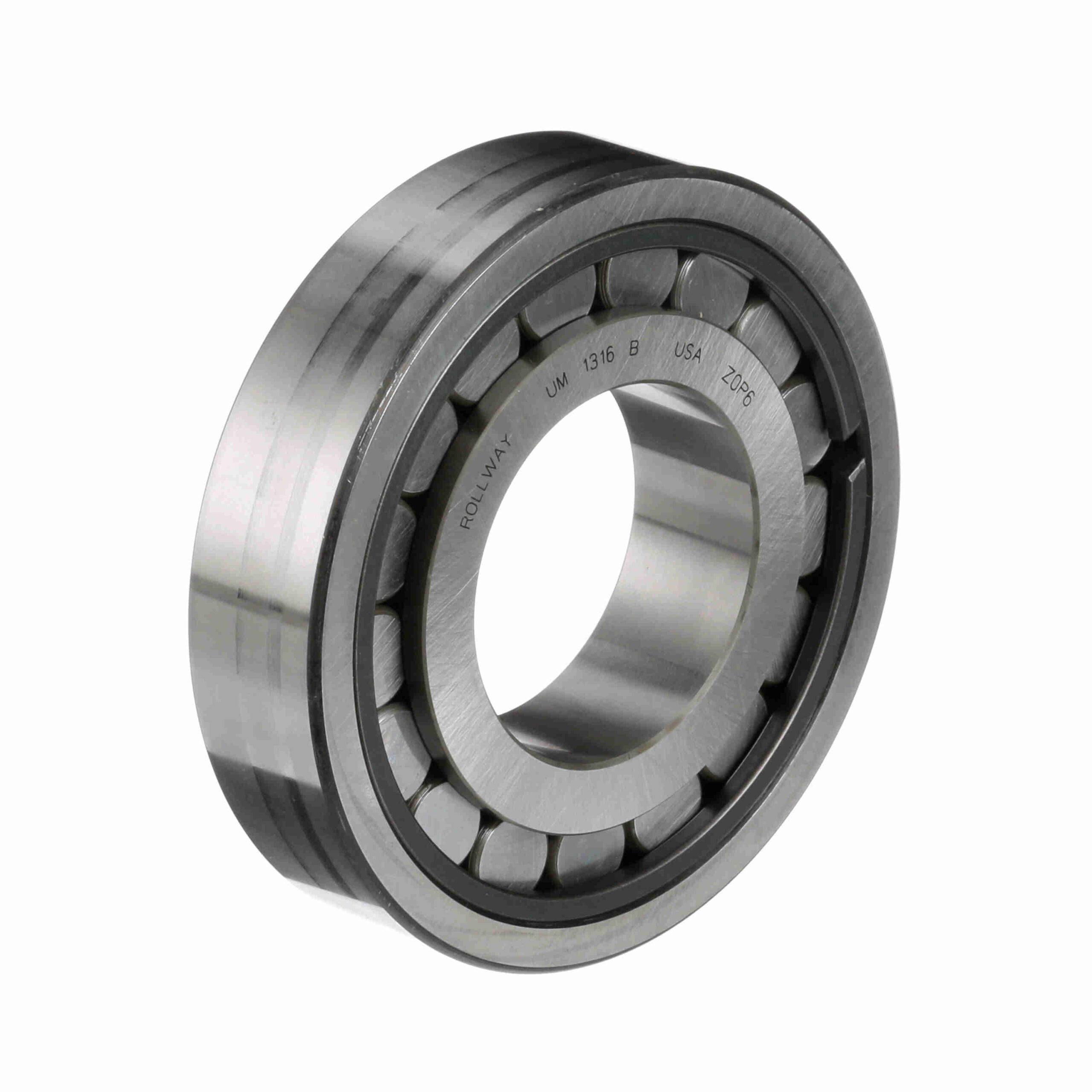

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – UM-1316-B
$1,065.61
Availability: 2 in stock
Availability: 2 in stock
| Dynamic Load Rating (kN): | 265.469865088002 kN | Static Load Rating (kN): | 316.179591328003 kN |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Inner Race Configuration: | Non-Separable |
| Flanges: | (2) Flanges on Inner Ring, Snap Rings Inside Outer Ring | Seal Type: | Unsealed |
| Cage Material: | No retainer | Bore Type: | Straight |
| Misalignment: | No | Number of Rows: | 1 |
| Rolling Element: | Cylindrical Roller | Radial Clearance: | Normal |
| Material: | High Chromium Bearing Steel | Sealed: | None |
| Platform: | Cylindrical Radial | Full Complement/Caged: | Full Complement |
| Dynamic Load Rating (lb): | 59, 680 lb | Duplexing: | No |
| Static Load Rating (lb): | 71, 080 lb | Retainer: | No |
| Separable: | Nonseparable | Profile: | Complete with Outer and Inner Race |
| Snap Ring: | No | UPC: | 637410042438 |
| Weight: | 10.00 LB | Packaged Length: | 10 Inches |
| Packaged Width: | 9 Inches | Packaged Height: | 2.6 Inches |
| HTC: | 8482.50.0000 | Country of Origin: | United States of America |
