- Shaft, housing plates, and rollers are through hardened bearing grade steel.
- Roller OD are crowned
AT-730

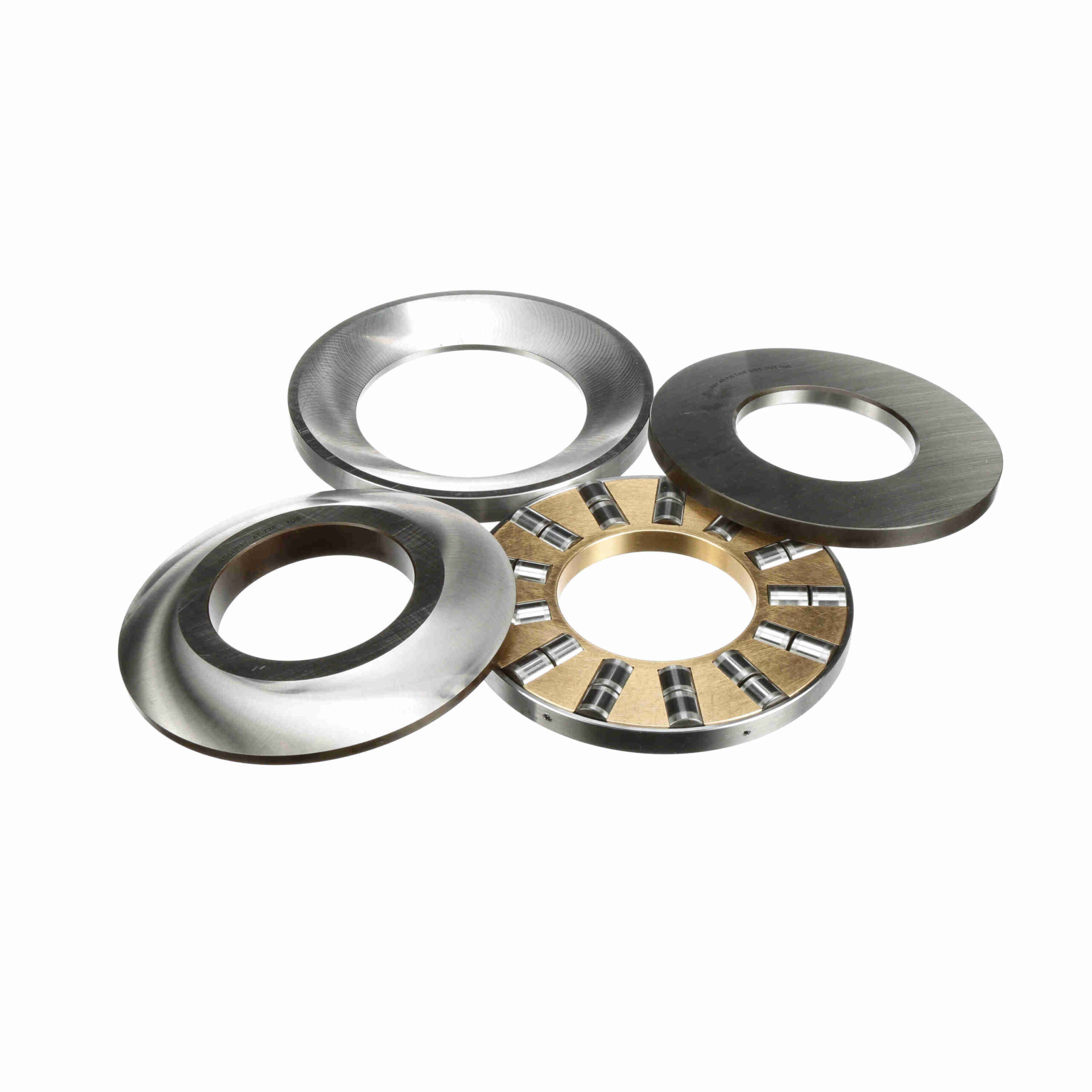

Rollway Thrust Cylindrical Roller Bearing – Caged Roller- Self-Aligning – AT-730
$3,225.03
Out of stock
Out of stock
| Thrust Direction: | Single | Aligning Radius: | 6 |
|---|---|---|---|
| Bore Type: | Straight | Seal Type: | Unsealed |
| Cage Material: | Brass | Rolling Element: | Cylindrical Roller |
| Misalignment: | Yes | Material: | High Chromium Bearing Steel |
| Number of Rows: | 1 | Platform: | Cylindrical Thrust |
| Full Complement/Caged: | Caged | Dynamic Load Rating (lb): | 82.2 lb |
| Static Load Rating (lb): | 268, 000 lb | Sealed: | None |
| Duplexing: | No | Snap Ring: | No |
| Profile: | Complete Assembly | Retainer: | Yes |
| Separable: | Inner/Outer ring-both sides | Lower Aligning Plate Bore (in): | 4 in |
| Housing to Clear Radius (in): | 0.062 in | Plate Thickness (in): | 0.38 in |
| Upper Aligning Plate Bore (in): | 3.06 in | UPC: | 637410012080 |
| Weight: | 9.60 LB | Packaged Length: | 8.98 Inches |
| Packaged Width: | 9.84 Inches | Packaged Height: | 2.56 Inches |
| HTC: | 8482.50.0000 | Country of Origin: | Mexico |
