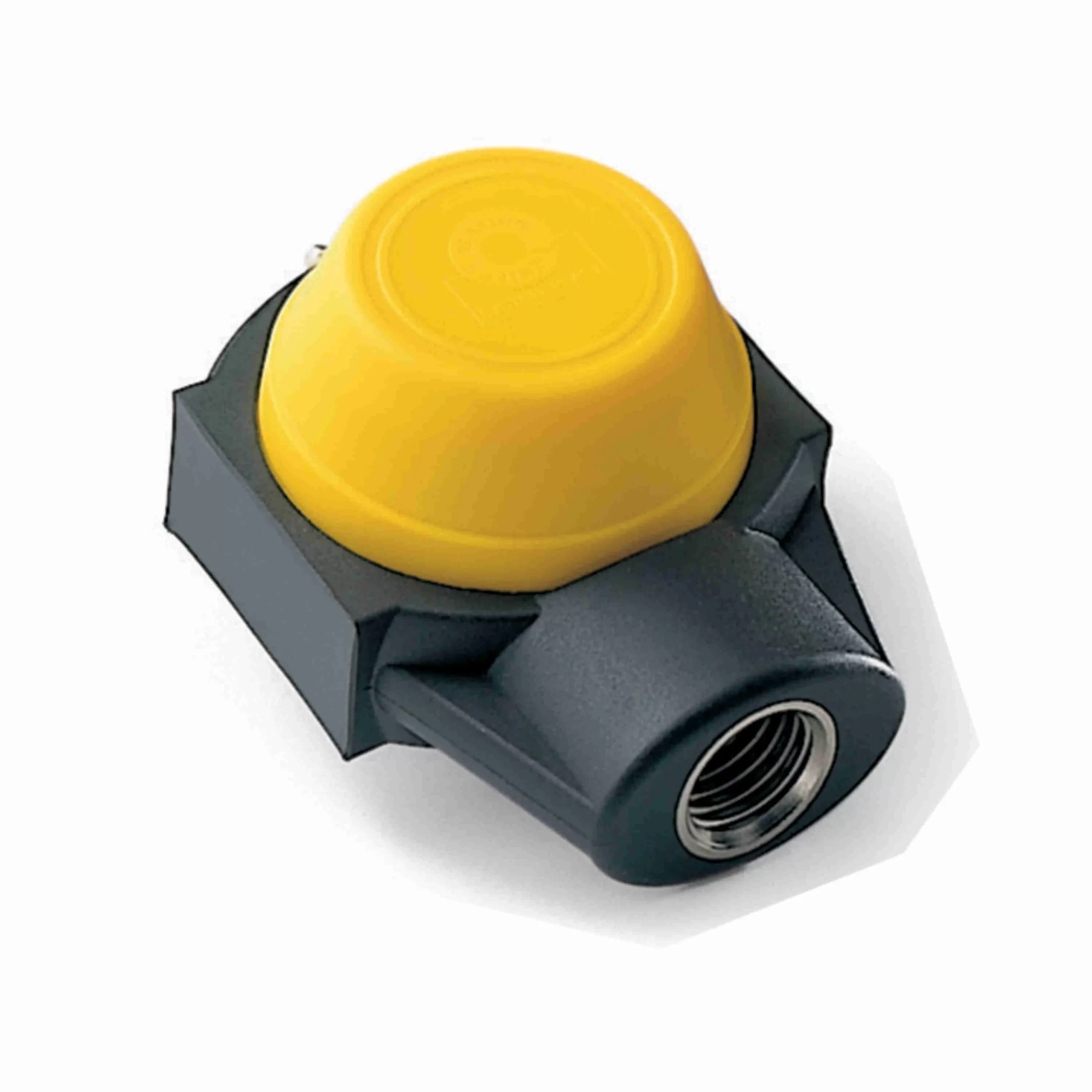

- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
- Includes yellow closed end cap with O-ring and back side housing seal.
UCT205-16-SS-CEC
System Plast Mounted Polyamide Wide Slot Take Up Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCT205-16-SS-CEC
Out of stock
| Expansion: | No | Measure Units: | Inch |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Retainer Type: | Ball Riding Retainer |
| Housing Type: | Take-Up Block, Wide Slot | Duty Series: | Standard Duty |
| Housing Material: | Polyamide | Internal Clearance: | Standard |
| Insert No.: | SS-SB205-16 RG | Lubrication: | NSF H1 Food Grade Grease |
| Housing Construction: | One Piece | Insert Material: | 400 Series Stainless Steel |
| Radial Dynamic Load Capacity (lb): | 1, 821 | Maximum Operating Temperature: | 180 °F |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Seal Type: | Single Lip Contact Seal | Speed (Max): | 3500 |
| Misalignment: | ±1.0° Misalignment - Static Only | Frame Type: | Center Pull Wide Slot |
| Locking Type: | Setscrew | Housing Color: | Black |
| Platform: | System Plast | Retainer Material: | Stainless Steel Riveted |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| End Cap: | Yes | Misalignment Type: | Static Only |
| Replaceable Insert: | No | Backside Shield/Seal: | Back Seal Installed in Housing |
| Radial Static Load Capacity (lb): | 1, 304 | UPC: | 787405279933 |
| Weight: | 0.77 LB | HTC: | 8483.20.4040 |
| Country of Origin: | China |
