- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 52100 chrome steel setscrew locking ball bearing insert.
UCPA205-25M-NC

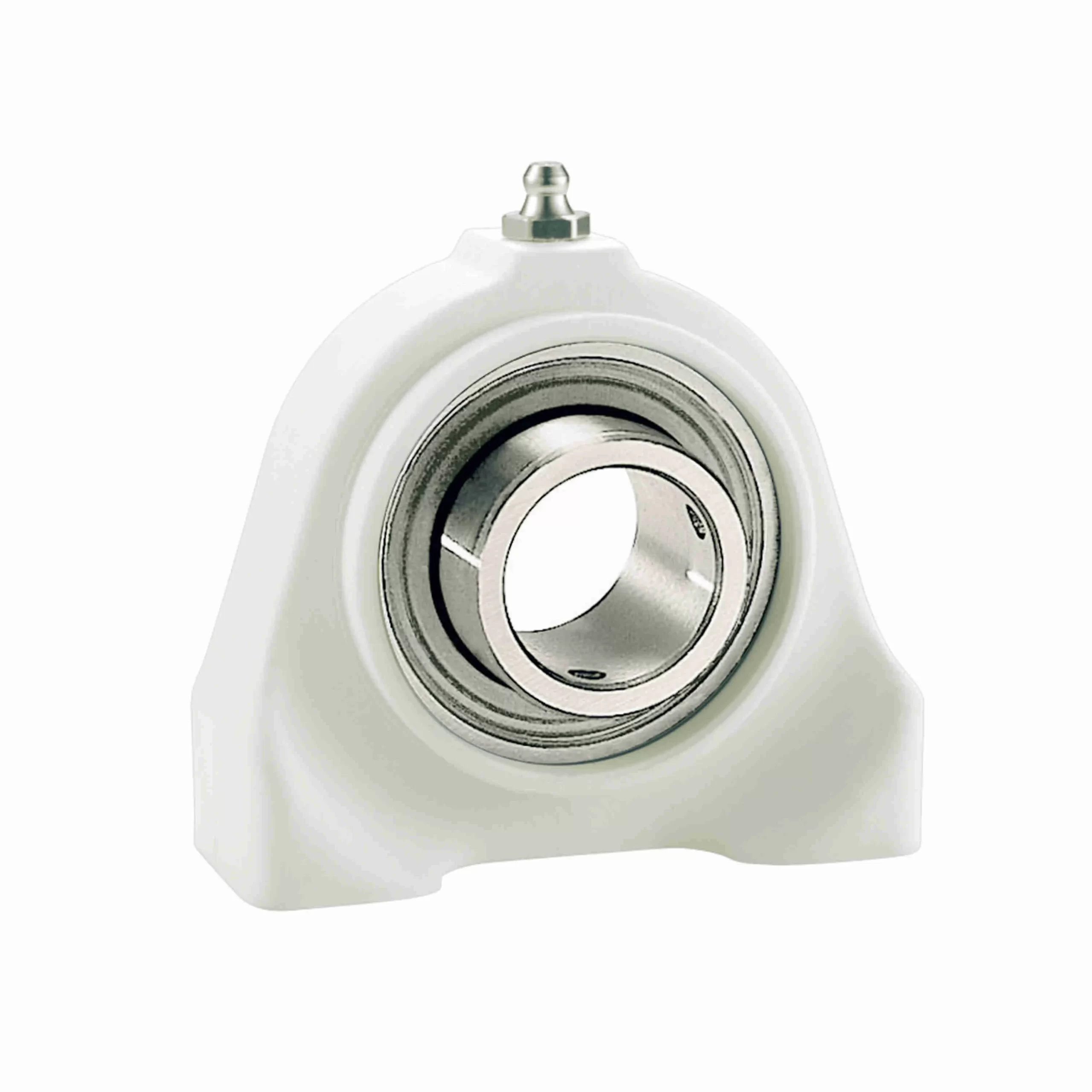

System Plast Mounted Nolu-Clean Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – UCPA205-25M-NC
Out of stock
| Rolling Element: | Ball Bearing | Measure Units: | Metric |
|---|---|---|---|
| Internal Clearance: | Standard | Insert Material: | 52100 Bearing Steel |
| Housing Base: | Solid | Misalignment: | ?1.0? Misalignment - Static Only |
| Housing Construction: | One Piece | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Retainer Material: | Steel Riveted |
| Misalignment Type: | Static Only | Replaceable Insert: | No |
| End Cap: | Yes | Housing Color: | White |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| Housing Style: | Pillow Block | Housing Material: | Nolu-Clean |
| Housing Type: | Pillow Block, Tapped Base | Retainer Type: | Ball Riding Retainer |
| Lubrication Type: | NSF H1 Food Grade Grease | Locking Type: | Set Screw |
| Duty/Series: | Standard Duty | Fixed vs. Expansion: | Fixed |
| Maximum Speed (RPM): | 3500 rpm | Maximum Temperature (F): | 180 ?F |
| Insert Number: | SB205-25M RG | Ability to Relubricate: | Yes |
| UPC: | 726166302856 | Weight: | 0.82 LB |
| Packaged Length: | 2.95 Inches | Packaged Width: | 1.54 Inches |
| Packaged Height: | 2.83 Inches |
