- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
U0 2 7/16

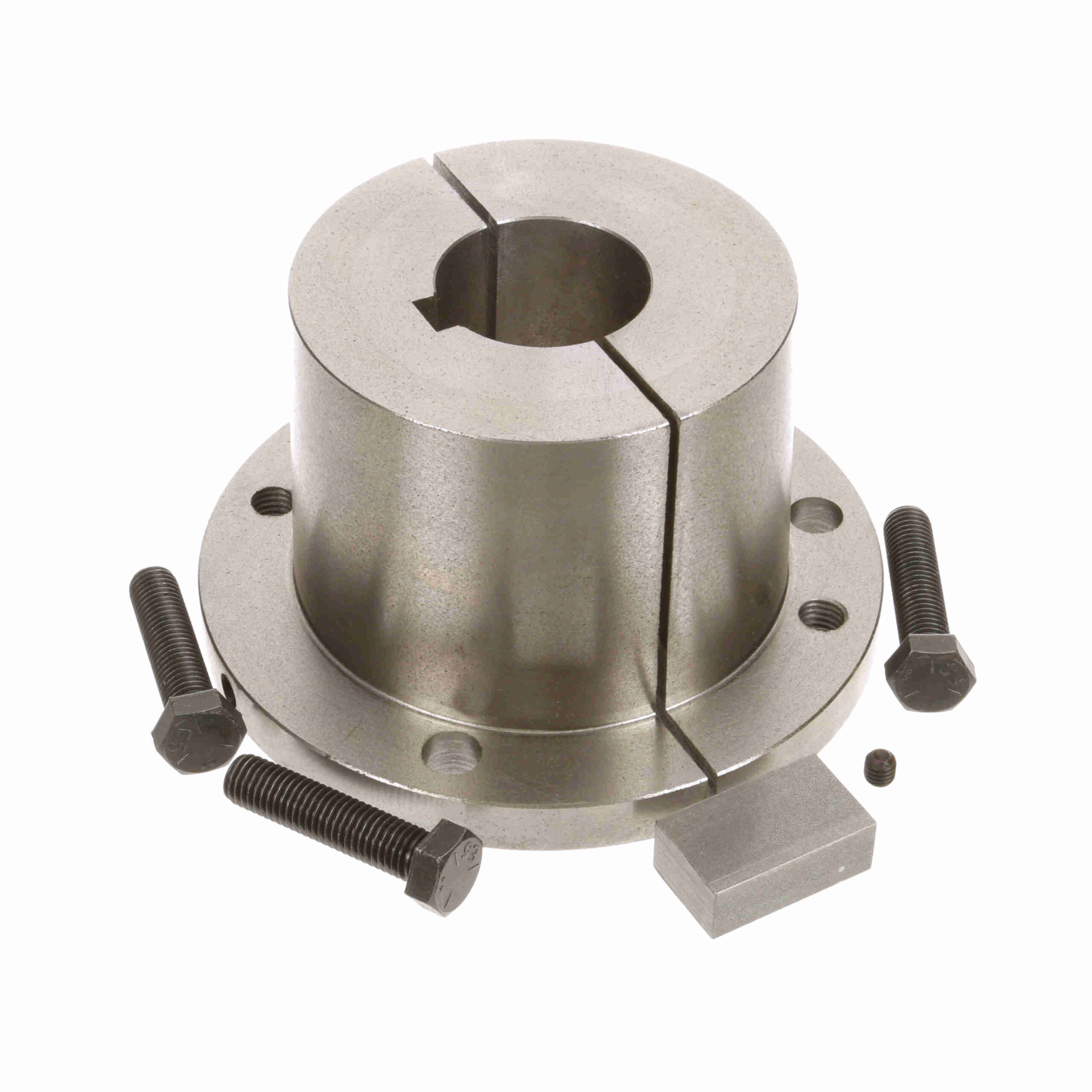

Browning Split Taper Bushing – Inch Bore Type – U0 2 7/16
Out of stock
| Cap Screws (Size): | 5/8 x 2 3/4 | Product Type: | Split Taper Bushing |
|---|---|---|---|
| Wrench Torque (in-lb): | 1, 680 | Length Through Bore (in): | 5.25 in |
| Model Name: | U0_Type1_BushingMaster | Total Length (in): | 5.25 in |
| Keyseat: | 5/8 x 5/16 | Bore Size (in): | 2.4375 in |
| Material: | Ductile Iron or Gray Iron | Outside Diameter (in): | 8.375 in |
| Compatible Bore Size [Max] (in): | 2.4375 in | Bushing Type: | U0 |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289241804 | Weight: | 34.25 LB |
| Packaged Length: | 8.5 Inches | Packaged Width: | 8.5 Inches |
| Packaged Height: | 5.25 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
