- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
TP70X2

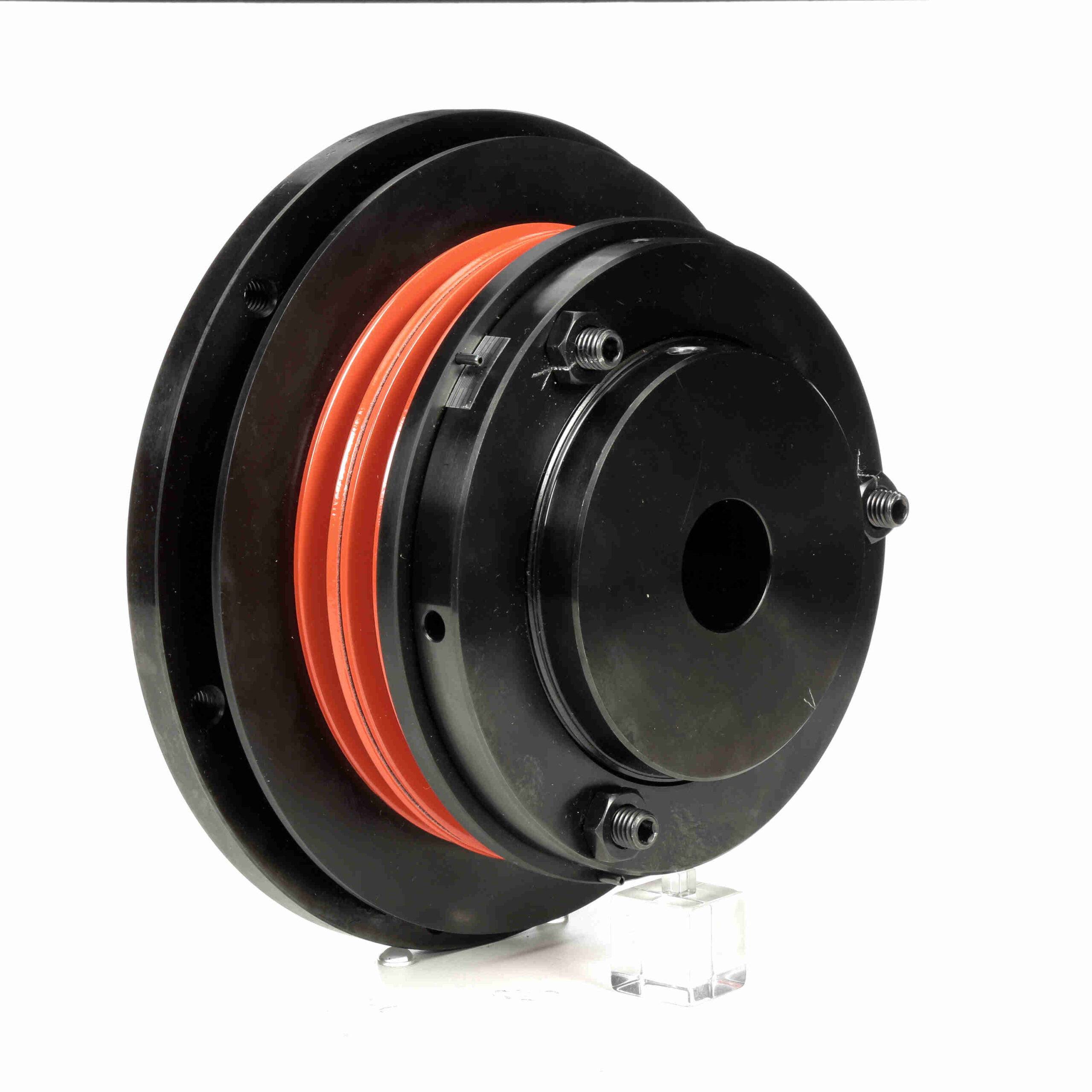

Browning Torq Pro Torque Limiter Model – TP70 – TP70X2
$12,677.26
Out of stock
Out of stock
| Sensor Travel: | 0.13 | Total Length (in): | 4.33 in |
|---|---|---|---|
| Type: | Torque Overload Devices | Speed Limit: | 160 |
| Outside Diameter (in): | 8.63 in | Sensor Plate: | Yes |
| Bore Size (mm): | 50.8 mm | Number of Bolt Holes: | 6 |
| Bolt Hole Thread Size (in): | 3/8, 16 in | Backlash: | Small |
| Disc Spring Color: | Yellow | Disconnect Method: | Ball Detent |
| Series / Model: | TP70 | Mounting Bolt Circle Diameter: | 7.88 |
| Hub Diameter (in): | 4.17 in | Torque [Min] (N-m): | 293.8 |
| Outside Diameter (mm): | 219.202 mm | Recovery Style: | Jog |
| Clutch size code: | 70 | Torq/Pro Sprockets: | STP70 |
| Unit Accuracy: | 0.1 | Spring Diameter: | 6.54 |
| Nut Diameter (in): | 6.18 in | Reset Type: | Automatic |
| Nominal Bore (in): | 2 in | Total Length (mm): | 109.982 mm |
| Bore Size (in): | 2 in | Detection Method: | Ball Detent |
| Bore Shape: | Straight Bore | Torque [Max] (N-m): | 1, 079.15 |
| Flange Diameter (in): | 6.69 in | Torque Capacity [Max] (lb-ft): | 795.833333333333 |
| Product Type: | Torq Pro Torque Limiter | Torque Capacity [Min] (lb-ft): | 216.666666666667 |
| Bore (Max) (in): | 2 in | Torque Capacity [Min] (in-lb): | 2, 600 |
| Torque Capacity [Max] (in-lb): | 9, 55 | Max RPM: | 160 |
| Bore (Min) (in): | 2 in | UPC: | 6, 62288E+11 |
| Weight: | 37.00 LB | Packaged Length: | 10.10 Inches |
| Packaged Width: | 9.70 Inches | Packaged Height: | 10.60 Inches |
| HTC: | 8483.60.8000 | Country of Origin: | Japan |
