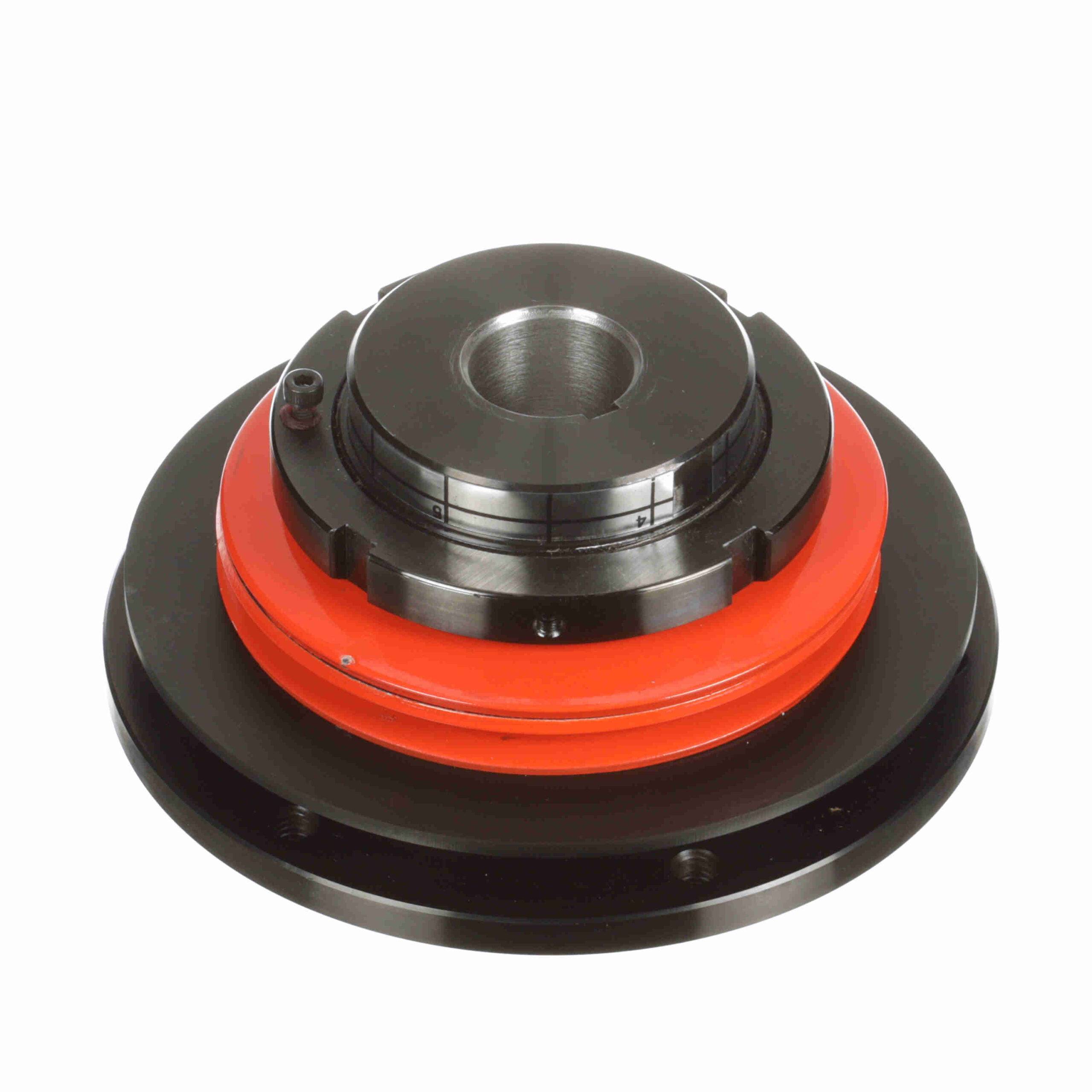

TP50HX 1 1/8

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Bore Size (in):	1.125 in	Backlash:	Small
Sensor Travel:	0.11	Reset Type:	Automatic
Disc Spring Color:	Orange	Nominal Bore (in):	1.125 in
Type:	Torque Overload Devices	Number of Bolt Holes:	6
Detection Method:	Ball Detent	Bore Size (mm):	28.575 mm
Torq/Pro Sprockets:	STP50	Torque [Min] (N-m):	196.055
Spring Diameter:	4.59	Outside Diameter (mm):	158.75 mm
Recovery Style:	Jog	Disconnect Method:	Ball Detent
Sensor Plate:	Yes	Hub Diameter (in):	2.76 in
Series / Model:	TP50H	Clutch size code:	50
Nut Diameter (in):	3.86 in	Mounting Bolt Circle Diameter:	5.5
Bolt Hole Thread Size (in):	5/16, 18 in	Unit Accuracy:	0.1
Speed Limit:	300	Total Length (in):	3.19 in
Total Length (mm):	81.026 mm	Bore Shape:	Straight Bore
Outside Diameter (in):	6.25 in	Flange Diameter (in):	4.8 in
Product Type:	Torq Pro Torque Limiter	Torque [Max] (N-m):	539.575
Torque Capacity [Max] (lb-ft):	397.916666666667	Torque Capacity [Min] (lb-ft):	144.583333333333
Bore (Max) (in):	1.125 in	Torque Capacity [Max] (in-lb):	4, 775
Torque Capacity [Min] (in-lb):	1, 735	Max RPM:	300
Bore (Min) (in):	1.125 in	UPC:	6, 62288E+11
Weight:	13.00 LB	Packaged Length:	6.25 Inches
Packaged Width:	6.25 Inches	Packaged Height:	3.50 Inches
HTC:	8483.60.8000	Country of Origin:	Japan
