TP30HX3/4

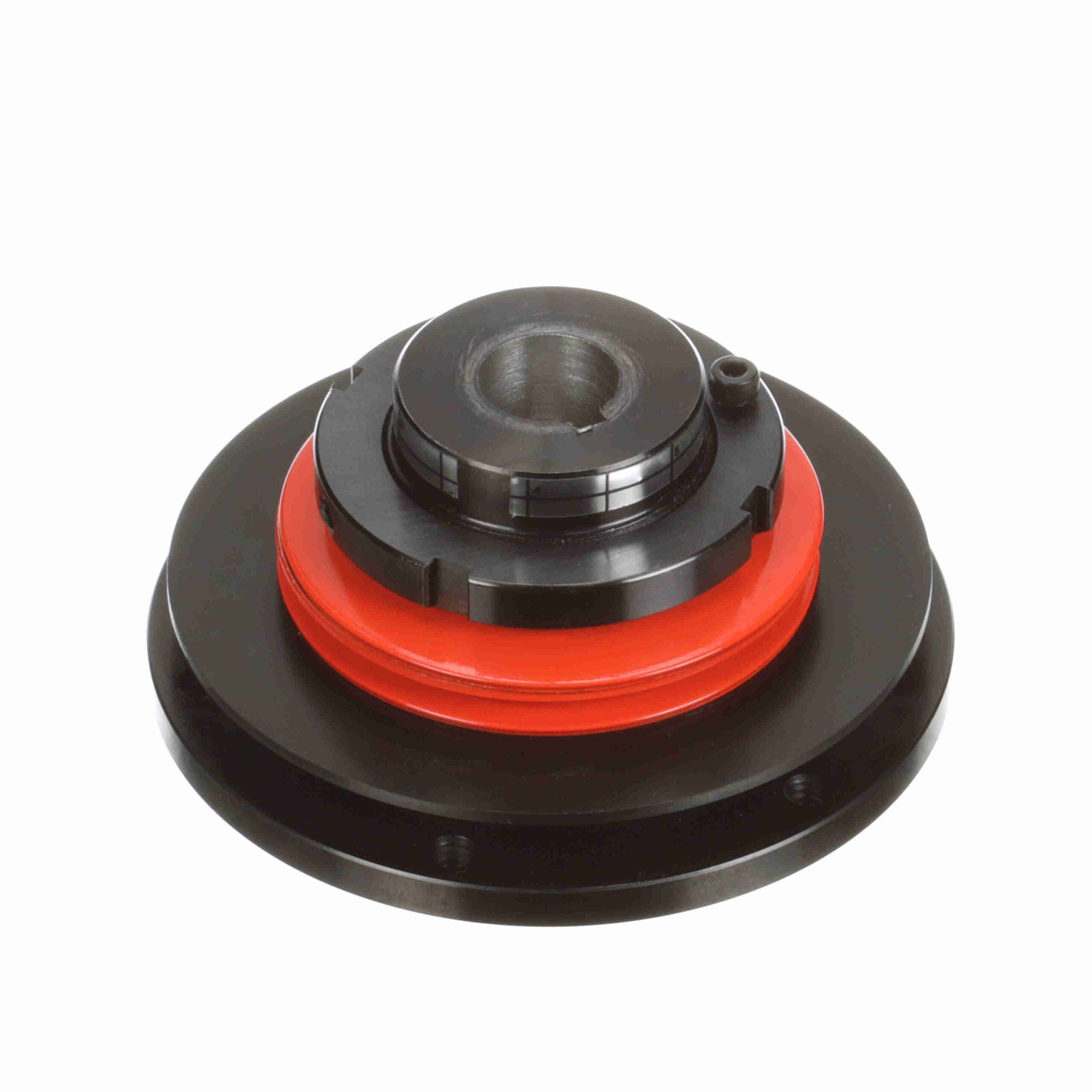

Browning Torq Pro Torque Limiter Model – TP30H – TP30HX3/4

SKU: 187783 Category:

$2,317.20

Out of stock

Out of stock

stripe checkout
  • Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
  • Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
  • Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
Bore Shape:

Straight Bore

Spring Diameter:

2.95

Sensor Travel:

0.08

Type:

Torque Overload Devices

Sensor Plate:

Yes

Series / Model:

TP30H

Speed Limit:

500

Bore Size (in):

0.75 in

Disconnect Method:

Ball Detent

Disc Spring Color:

Orange

Outside Diameter (in):

4.44 in

Reset Type:

Automatic

Nominal Bore (in):

0.75 in

Bolt Hole Thread Size (in):

1/4, 20 in

Outside Diameter (mm):

112.776 mm

Bore Size (mm):

19.05 mm

Mounting Bolt Circle Diameter:

3.94

Nut Diameter (in):

2.56 in

Total Length (mm):

59.944 mm

Backlash:

Small

Hub Diameter (in):

1.67 in

Total Length (in):

2.36 in

Number of Bolt Holes:

6

Recovery Style:

Jog

Torq/Pro Sprockets:

STP30

Torque [Min] (N-m):

53.675

Unit Accuracy:

0.1

Detection Method:

Ball Detent

Bore (Max) (in):

0.75 in

Torque [Max] (N-m):

166.675

Product Type:

Torq Pro Torque Limiter

Torque Capacity [Max] (lb-ft):

122.916666666667

Flange Diameter (in):

3.23 in

Torque Capacity [Min] (lb-ft):

39.5833333333333

Bore (Min) (in):

0.75 in

Max RPM:

500

Torque Capacity [Min] (in-lb):

475

Torque Capacity [Max] (in-lb):

1, 475

UPC:

6, 62288E+11

Weight:

4.50 LB

Packaged Length:

4.50 Inches

Packaged Width:

4.50 Inches

Packaged Height:

3.12 Inches

HTC:

8483.60.8000

Country of Origin:

Japan
